VERKLINE Adjustable Tubular Front Race Wishbones With Modified Kinematics - MK5/MK6


Free Shipping
VerklineSKU: WAS-011 DIY Difficulty: INTERMEDIATE


Price:
$1,169

Availability:
Direct Ship!
Buy Now & Pay over time with

Product Questions & Answers

Product Questions & Answers

Be the first to ask a question!

Ask a Question

Description

When using the car on the track the cornering forces are bending the rubber in the wishbones (control arms). Thus changing the desired geometry of the car. This can lead to slower track times and ineffective tire usage.

For that reason, we have come up with uniball control arms. Our race wishbones use metal to metal uniball just like used in Porsche RS line (GT2RS, GT3RS).

We are using the same T45 tubing as in WRC cars, our wishbones provide increased stiffness and extra adjustment. All factory parts bolt up to this unit, no other modifications are necessary.

Most of the cars used on track are lowered compared to stock. Lowering the car has the undesirable effect of moving the chassis lower than the balljoint and excessive lowering results in the situation where the wishbone is pointing upwards at the wheel end. This means you need more steering lock when cornering, the car is sluggish to respond and doesn’t feel as communicative.

This is where our version of wishbones comes to fix this offering modified kinematics option. This version can only be used with our front tubular subframes.

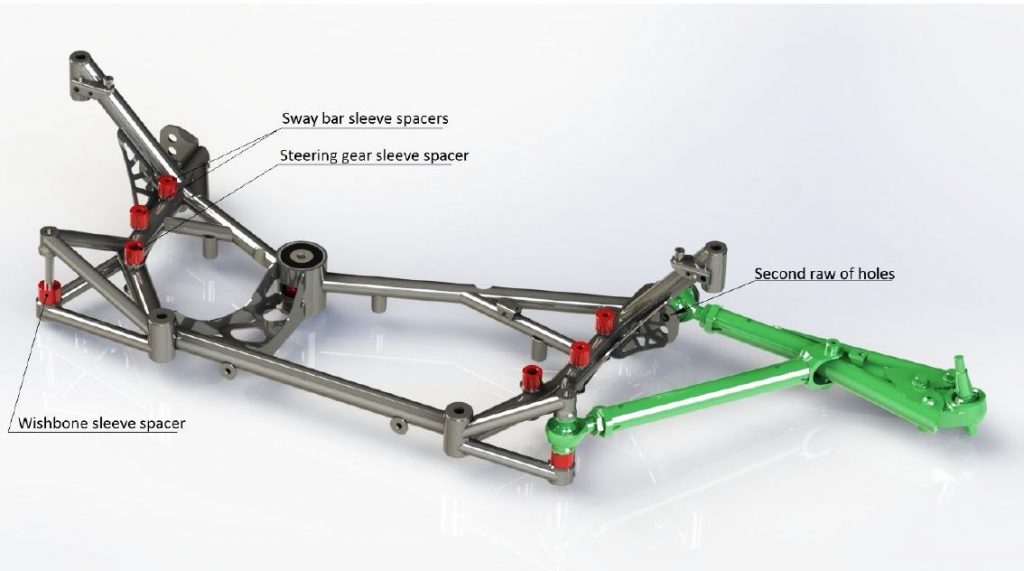

This means you need more steering lock when cornering, the car is sluggish to respond and doesn’t feel as communicative. To correct this and achieve the best kinematics of front suspension, you should use the sleeves included in the kit. They change the kinematics of the suspension, changing the position of the turnover centers of the components.

Product functionalities:

  • Adjustment both caster and camber (up to -4.5 degrees)
  • No rubber to bend, you will not loose the geometry set when doing aliment
  • Works with our tubular subframe
  • Enables removal of the wishbones with our the need for removal of the subframe

        Features:

        • T45 (BS4T45 to BS4T100) tubing imported from UK and S355 metal sheets
        • Proven motorsport M18 uniballs (the same type we use in our Lancer EVO X kits)
        • Plug and play to use with the car inc xenon sensors

        What's Included:

        • Two (pair) front wishbones (control arms) with all hardware for install
        • Set of spacers to reposition the steering rack and front anit-roll bar. Both 20 mm up.
        • Four rubber caps for uniball protection
        • Printed install instructions

        Fitment Notes:

        • 2007 – 2013 Audi TT/TTS/TTRS (8J)
        • 2005 – 2013 Audi A3/S3/RS3 (8P)
        • 2007 – 2009 Volkswagen Eos (MkV)
        • 2010 – 2013 Volkswagen Eos (MkVI)
        • 2006 – 2009 Volkswagen Jetta/GTI/GLI/R32 (MkV)
        • 2010 – 2014 Volkswagen Golf/GTI/R (MkVI)
        • 2012 – 2016 New Beetle (A5)
        • 2006 – 2013 Volkswagen Passat
        • 2008 – 2013 Volkwagen Tiguan
        • 2010 – 2015 Volkswagen Jetta (MkVI)

        T45 is a very unique seamless carbon-based steel tube that has been used in many applications in different industries. It is stronger than Co-Mo 4130 tubing that also used in motorsport. It is widely used in the aerospace sector in equipment such as pilot’s seats and crew’s seats due to the material's ability to withstand high G forces without snapping or splitting. This material is a Carbon Manganese based and conforms to the full Aerospace Specification laid down by British Standards.

        Properties
        Tensile: 700 – 900MPa,
        0.2% Yield 620MPa minimum
        Hardness Test: 201min – 262 max HB or 210min – 275max HV.

        Replaces:

        • 1K0 407 151 AA (left), 1K0 407 152 AA (right)

        • 1K0 407 151 AB (left), 1K0 407 152 AB (right)

        • 1K0 407 151 AC (left), 1K0 407 152 AC (right)

        • 1K0 407 151 AD (left), 1K0 407 152 AD (right)

        • 1K0 407 151 BC (left), 1K0 407 152 BC (right)

        • 1K0 407 151 BD (left), 1K0 407 152 BD (right)

        • 1K0 407 151 P (left), 1K0 407 152 P (right)

        • 8J0407151D + 8J0199231 / 8J0 407 151D + 8J0 199 231

        Vehicle Fitment

        Model   + Drivetrain
        1B Jetta - GLI 2.0T I4 +
        1B Jetta - GLI 2.0T I4 [GEN 3] +
        1B Jetta 1.4T I4
        1B Jetta 1.8T I4 [GEN 3]
        1B Jetta 2.5L I5
        1B Jetta S 2.0L I4 +
        1F EOS 2.0T I4
        1F EOS 3.2L VR6
        1K Jetta - GLI 2.0T I4 +
        1K Jetta 2.5L I5
        5C Beetle 1.8T I4 [GEN 3]
        5C Beetle 2.0T I4
        5C Beetle 2.0T I4 [GEN 3]
        5C Beetle 2.0T I4 [GEN3] +
        5N Tiguan 2.0T I4 +
        8J TT 2.0T I4 +
        8J TT 3.2L VR6
        8J TT RS 2.5T I5
        8J TTS 2.0T I4
        8P A3 1.8T I4 +
        8P A3 2.0T I4 +
        8P A3 3.2L VR6 +
        8P S3 2.0T I4 +
        B6 Passat 2.0T I4
        B6 Passat 3.6L VR6
        B7 Passat 1.8T I4 [GEN 3]
        B7 Passat 2.0T I4 [GEN 3B]
        B7 Passat 2.5L I5
        B7 Passat 3.6L VR6
        MK5 GTI 2.0T I4
        MK5 R32 3.2L VR6
