Tuning Solution for DQ381 with factory 401 bootloader

After extensive testing TuneZilla is proud to release our solution for DSG equipped MK8 R and GTI models with the "locked" 401 Bootloader. This is a physical hardware change. By removing the mechatronic unit and swapping to our pre-flashed bootloader, users can enjoy more features not available from the factory.

Please Note: The TCU tune comes pre-loaded on the unit and was designed to work with our ECU tune. If you have another company's ECU tune, please ask them for a high TQ file as low TQ options can limit the performance of both ECU and TCU tune.

Running another company's TCU tune will void the warranty offered on our 301 Bootloader units.

Features:

Torque Limiters Set 800nm
Two Step Launch Control 3500rpm No Kickdown / 4000rpm With Kickdown
Faster Launch Control Take-Off Reaction
Displaying Gear Number In D/S Mode
Sailing Mode Off In Economic Mode
Upshift Off In Manual Mode
Modified Clutch Thermal Management
Optimized Clutch Cooling
Increased Max Shift Points In D/S Mode (Around 200rpm)
Max Clutch Pressure Values Up To 18-19bar
Reduced Up/Down Shift Times
Removed Safeguards That Slow Down Vehicle Acceleration, Including TP (throttle plate ) Closure Above 6500rpm

What's Included:

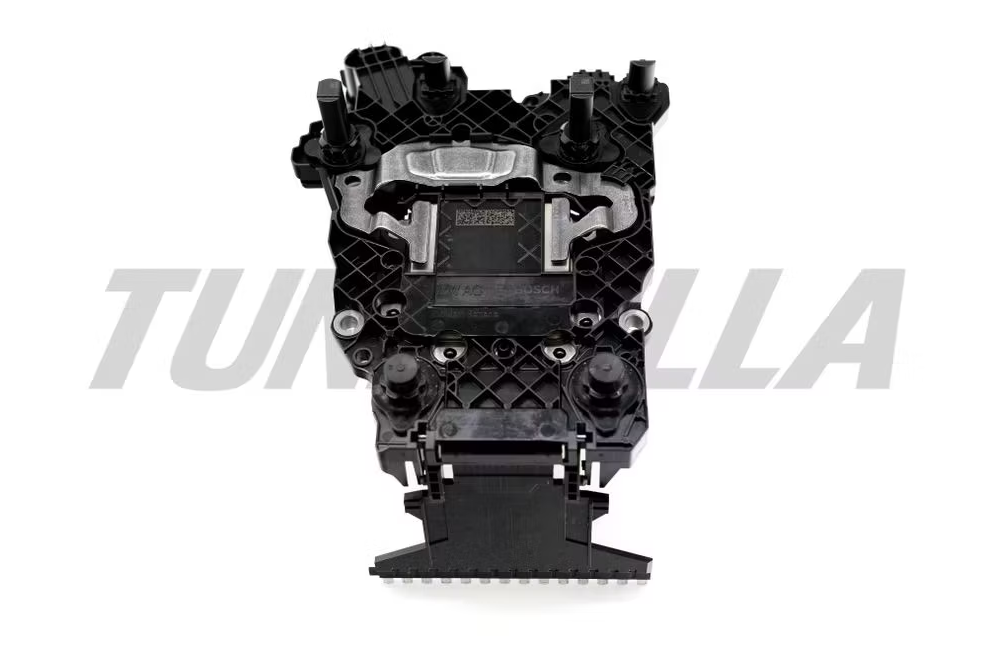

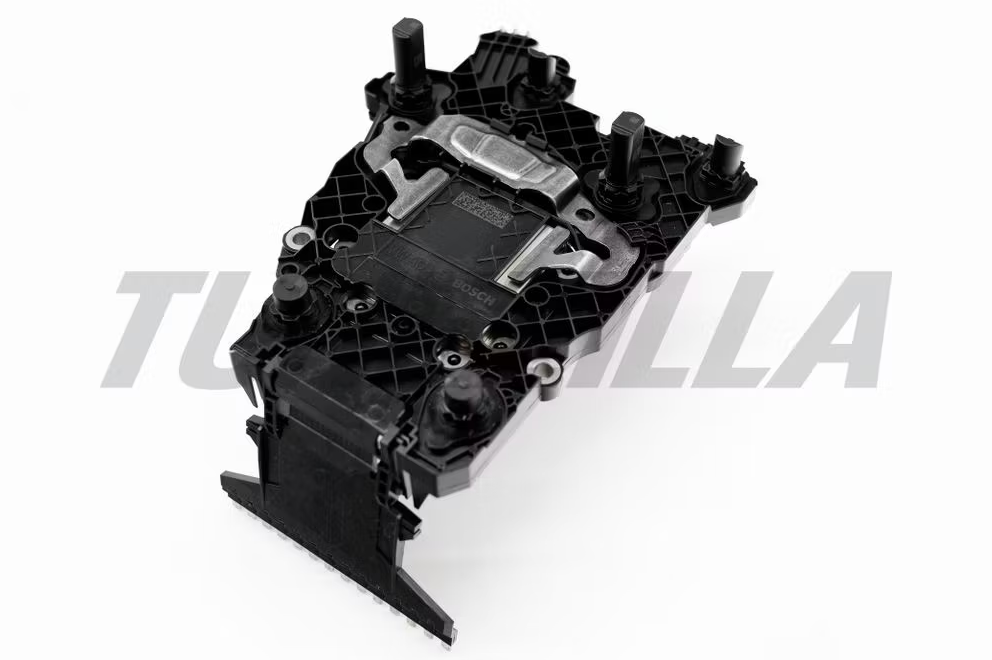

TuneZilla DSG Tune Bootloader

The following additional parts may be required to complete installation:

N 105 540 02 - Mechatronic TTY Bolts
0GC 927 377 - Seal for Mechatronic Connector
0GC 325 201 L - Outer Cover for Mech with Integrated Seal
N 910 327 02 - Bolts for Outer Cover
N 909 654 01 - Drain Bolt/Seal for Mech
N 043 809 2 - Seal for DSG Drain Plug
0GC 325 183 A - DQ381 Filter
N 910 845 01 - O-Ring for Filter Housing
G 055 529 A2 - DSG Fluid

Warranty Coverage:
The TZ Bootloader is covered for 1 year, or 10,000 miles (whichever occurs first) and is limited to the bootloader only. TuneZilla does not cover any hardware failure beyond the bootloader. Installing the TZ Bootloader may void your factory warranty on transmission components. In the event of a failure, TuneZilla may replace or repair the bootloader unit at their discretion. Warranty coverage will be void if a third party software has been flashed to the bootloader. TuneZilla is not responsible for labour costs associated with install or removal.
