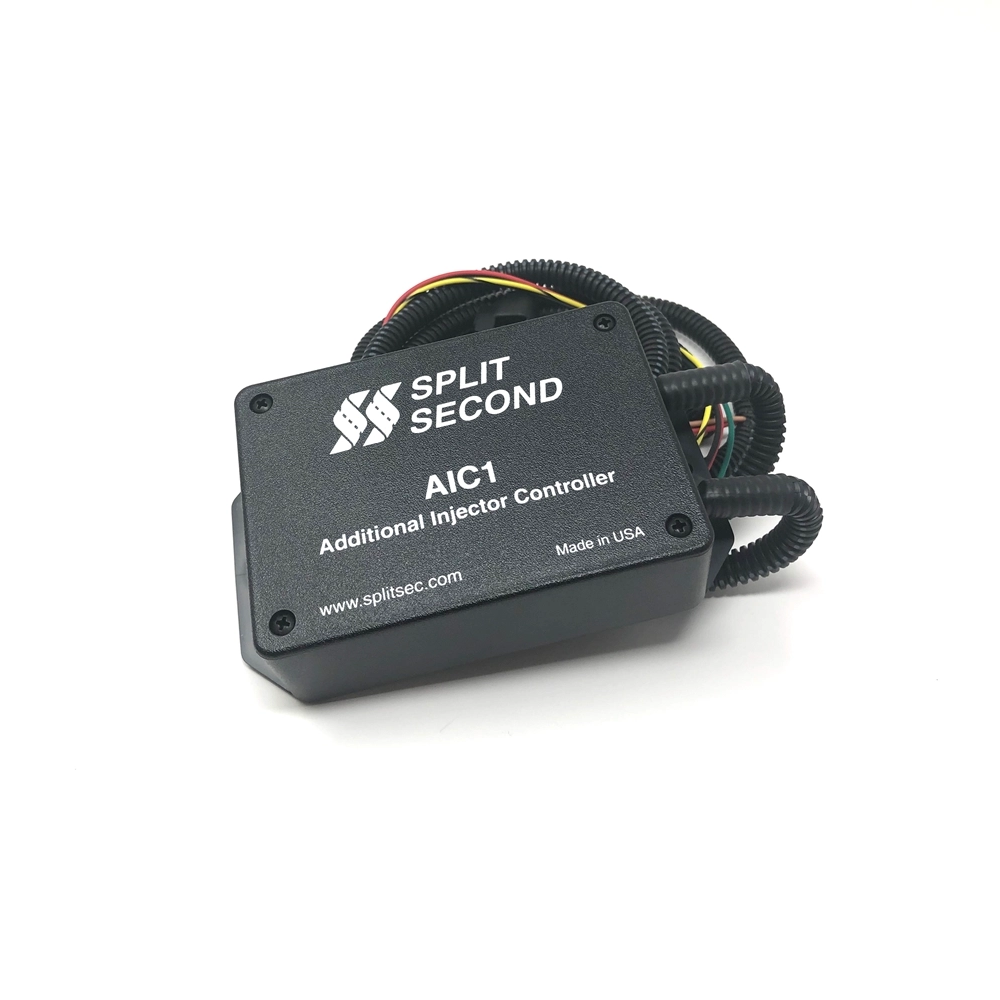

Split Second AIC1 Fuel Injector Controller N54 · N55

Genuine SplitSecond AIC1-6 supplemental fuel injector controller with EV6 (USCAR) connectors for use in 6 cylinder applications.  This product is designed for close course racing and may never be used on public roads.  The AIC1-6 is a laptop programmable additional injector controller.  It is programmed with the Split Second R4 engine management software included on CD or available for download here.  It controls six high impedance injectors over the complete vacuum region and under high boost as well.

The AIC1-6 is generally used with forced induction engines consisting of a turbocharger or supercharger.  The AIC1-6 gives the user a convenient way to set the fuel mixture for proper air/fuel ratio in the boost region.  The approach of running additional injectors is well suited for late model applications with ECUs that have very tight control over fuel mixture.  The fuel system can operate completely stock in the vacuum region and the AIC1 can provide the additional fuel required in boost.

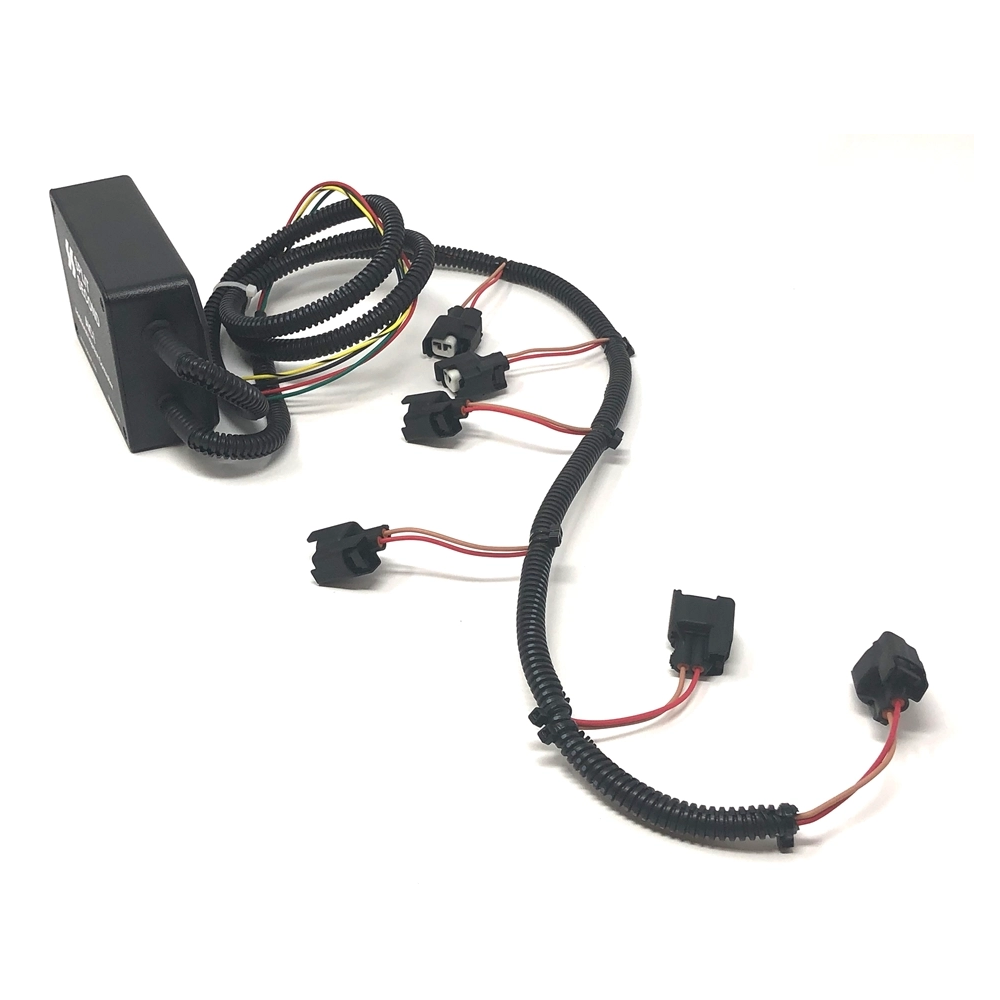

The AIC1-6 comes pre-wired with EV6 (USCAR) connectors.  The R4 software is included on CD with this unit.

Features:

• Perfect for port injection upgrade
• EV6 Injector Plugs
• Full AFR control and tuning capability with included software suite
• Perfect for the N54 and N55 engines
• Easy installation

What's Included:

• Split Second AIC1 Fuel Injector Controller
