Integrated Engineering Supercharger Pulley Upgrade 3.0T

MODEL DRIVETRAIN
8R SQ5 3.0L SC V6 AWD
B8 S4 3.0L SC V6 AWD
B8 S5 3.0L SC V6 AWD
C7 A6 3.0L SC V6 FWD + AWD
C7 A7 3.0L SC V6 AWD

ATTENTION MK7.5 · B8.5 · C7.5 · 8.5V OWNERS:

Although MOST parts DO FIT FACELIFT MODELS such as the MK7.5, C7.5 and B8.5, some components such as exhaust systems and headlights are NOT ALWAYS perfectly upward compatible and vice versa due to minor changes in body design such as fenders, bumper and valences.

Please contact us via chat, phone or eMail if you are uncertain about product fitment on your facelift model.


Affirm Financing

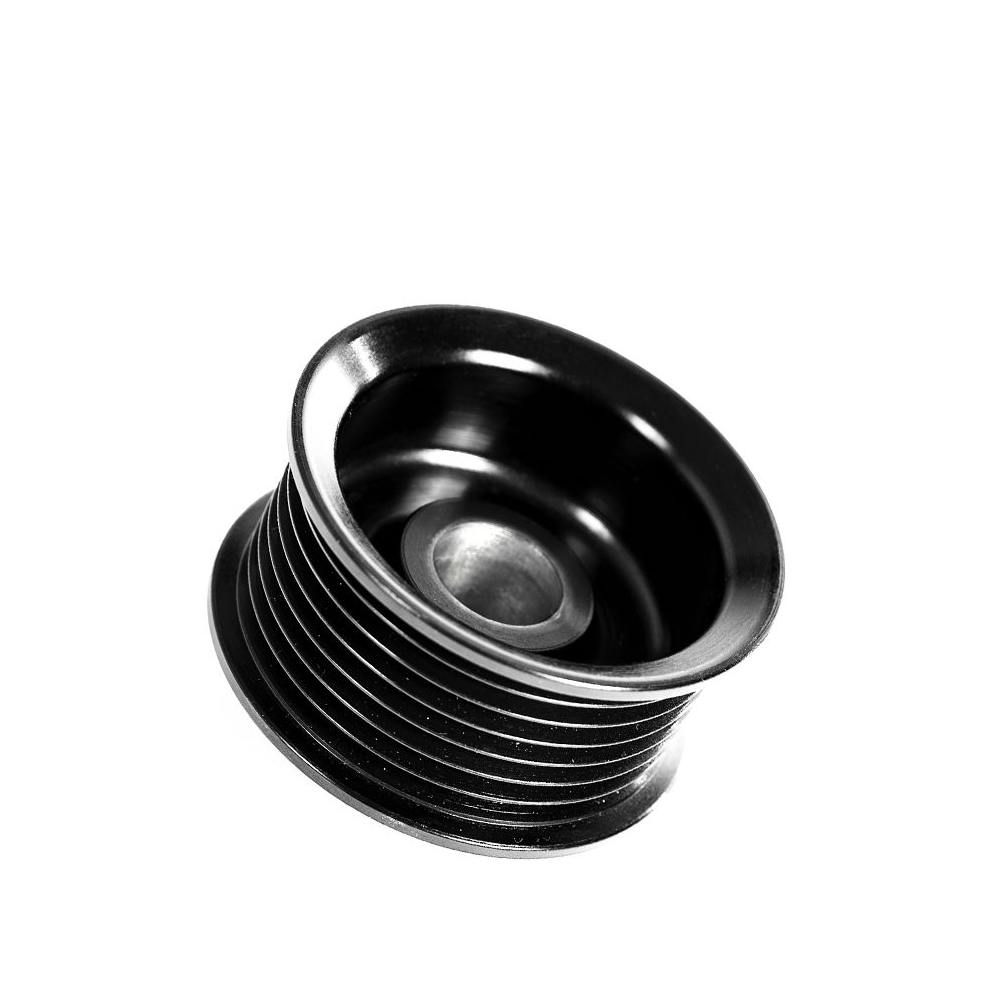

Integrated Engineering Supercharger Pulley Upgrade 3.0T



INSTALL DIFFICULTY

Integrated Engineering

  • $199.99
  • FREE SHIPPING


The IE supercharger pulley for 3.0T V6 Audi engines is a great mod to extract more power.  Paired with a Stage 2 Tune, you can expect gains in the 15-25 HP range on pump fuel.  This is achieved by spinning the supercharger unit significantly faster than stock, resulting in higher boost levels.

The pulley functions by increasing the supercharger RPM throughout the full powerband.  At redline supercharger speed is increased by 1800 RPM.  The IE pulley is 57.50mm in diameter, making it one of most aggressive and powerful on the market.

Features:

  • Increases supercharger RPM by 10%
  • Increases supercharger boost levels
  • CNC machined from billet steel
  • Inside bore precision honed at IE
  • Zinc plated to ensure no rust
  • Replaces stock pulley on Eaton TVS 1320 Superchargers
  • Engineered in-house using CAD modeling and FEA analysis

What's Included:

  • Integrated Engineering Supercharger Pulley Upgrade
