Connecting rods are some of the highest stressed components in an engine and thus require extreme attention to detail to ensure proper operation and reliability. Integrated Engineering ensures the success of your next engine build by putting each set of connecting rods through a rigorous quality control process. For years Integrated Engineering H-beam Rods have been an integral part of delivering the power that the highest powered turbo setups and race engine demand.
Extra attention has been paid to even the smallest details such as the bearing tangs, wrist pin fit, and big end side clearance, providing a level of fit and finish not found anywhere else. Each and every set is finish machined and honed in-house for perfectly round and on size big-end bores, resulting in the industry's lowest failure rates. All rods in this series feature generous wrist pin oiling for long life operation. One of the hallmarks of a high quality connecting rod is its strength to weight ratio. In order to create this balance of strength and lightweight, our optimized H beam design is utilized and validated using modern CAD drafting and FEA analysis techniques. These techniques ensure the rod is as light and strong as possible, perfect for today's powerful and high rpm European applications.
When increasing the power output of your Audi B5 S4 or RS4 engine, internal parts begin to fail as they are pushed far beyond their original factory spec limits. Integrated Engineering Forged Connecting Rods are designed to replace the factory units and take the beating from today's high-output power modifications. Drive fast and reliably with IE performance rods, guaranteed to support over 700HP on 2.7T engines!
- 21mm wrist pin for use with factory or aftermarket 21mm pistons
- Forged from vacuum drawn 2 pieces 4340 chromemoly steel
- Upgraded H beam design greatly increases strength and durability
- Combination tested to 700+HP on 6 cylinder engines
- Includes IE Spec ARP 2000 rod bolts with "IE" stamp
- Individual computer-optimized design
- Honed to exacting tolerances within 250 millionths of an inch
- Each connecting rod set is balanced to weights within +/- 1 gram
- Dimensionally and magnaflux inspected to ensure extreme reliability
- Multi-stage heat treated for dimensional stability and fatigue life

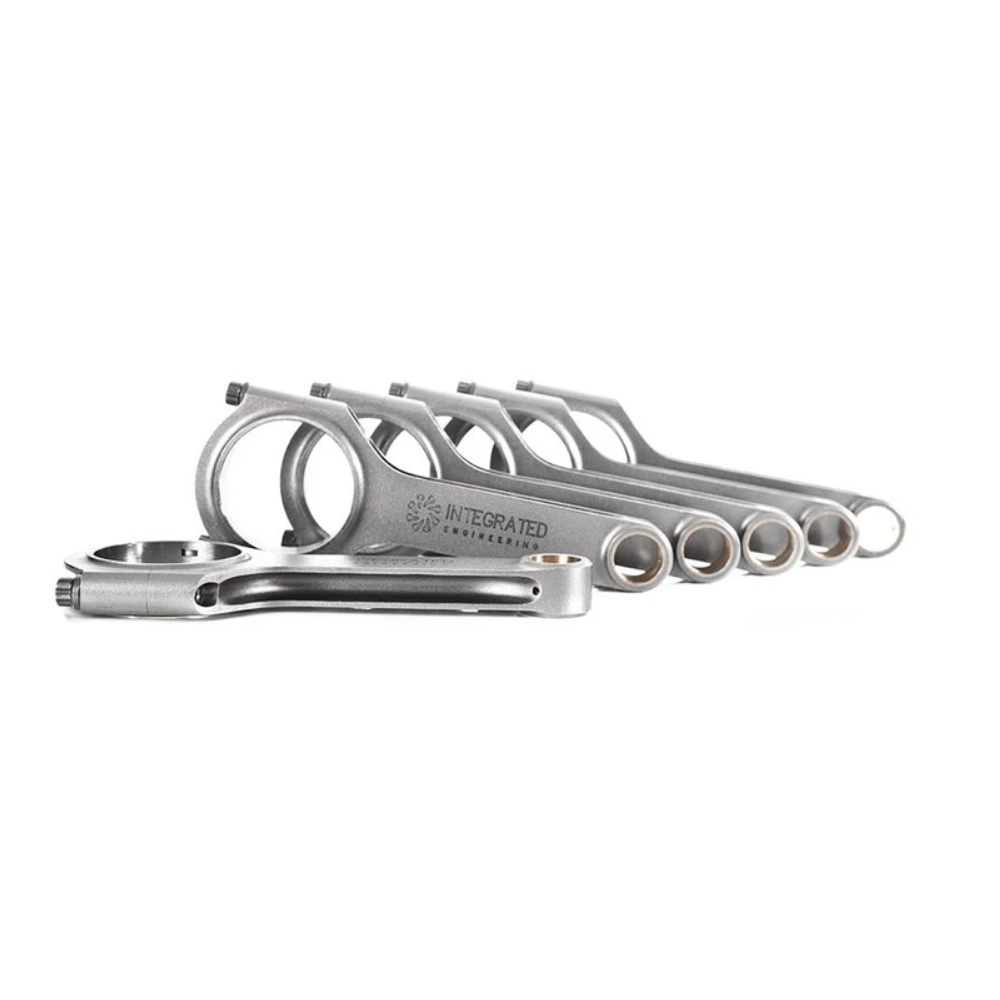

- Integrated Engineering Forged connecting Rods
|B5 A4 2.8L V6||+|
|B5 Passat 2.8L V6||+|
|B5 RS4 2.7T V6|
|B5 S4 2.7T V6|
|C5 A6 2.7T V6|
