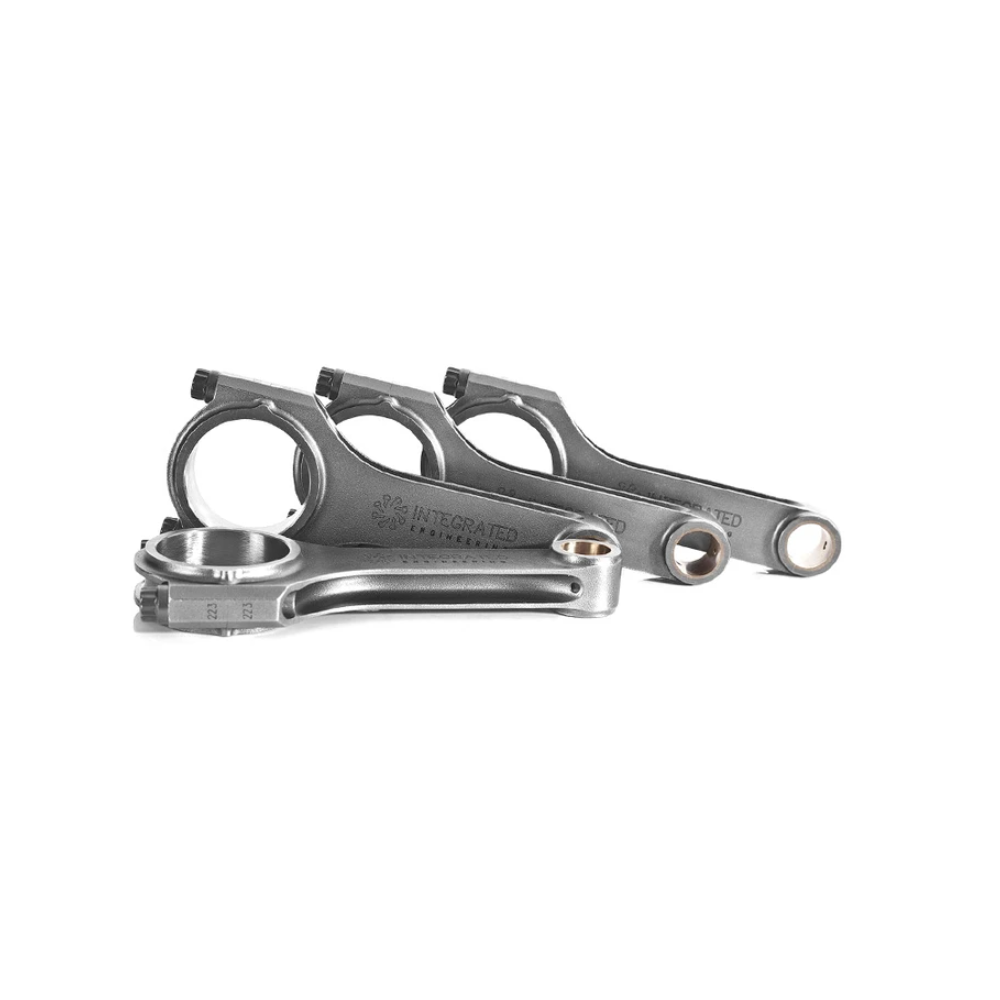

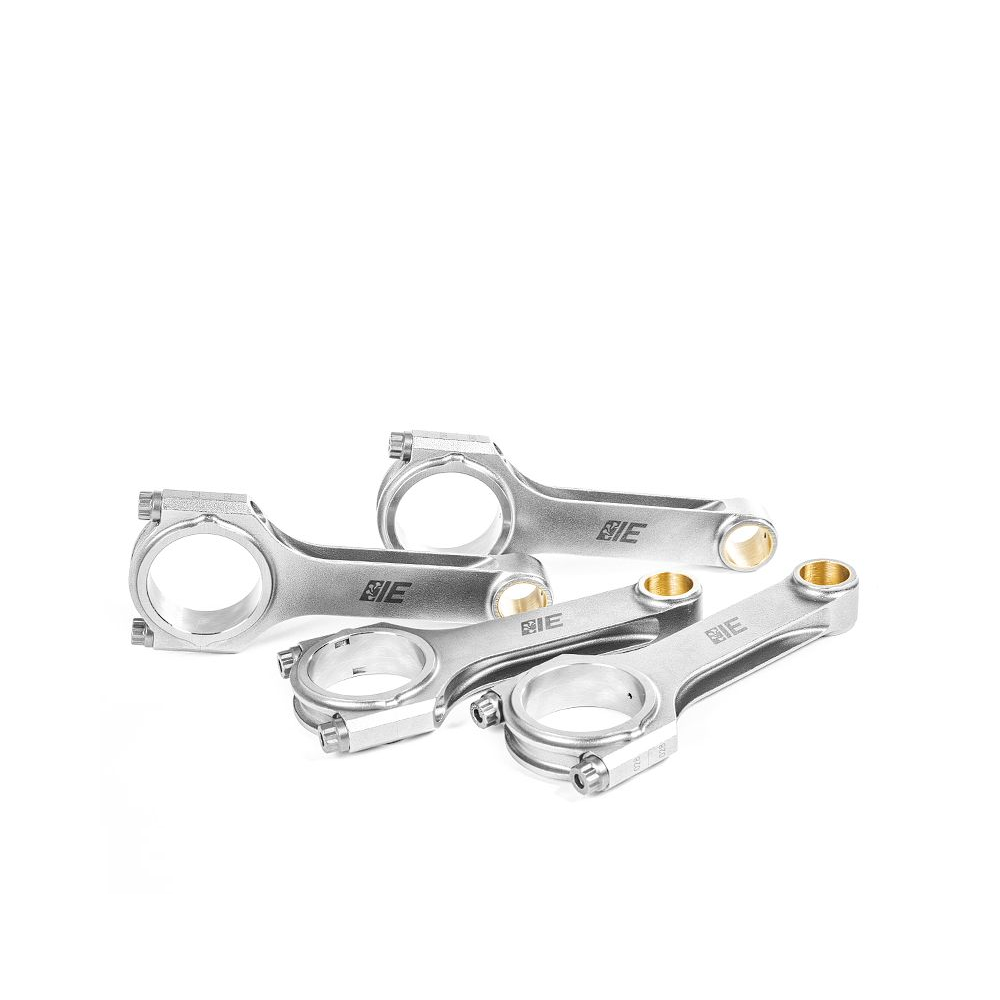

Integrated Engineering Forged Connecting Rods 144X22 2.0T TSI

Free Shipping
Integrated EngineeringSKU: IERHVT3 DIY Difficulty: VERY DIFFICULT

Forced Pin Oiling (Rifle Drilling): -

Direct Ship!

Buy Now & Pay over time with

Product Questions & Answers

Product Questions & Answers

Be the first to ask a question!

Ask a Question


Adding a larger turbo or more boost to your VW/Audi 2.0T TSI (EA888 Gen 1, 2, & 3) engine?  Upgrade the weak links in your block and keep your engine together reliably with IE's market-leading Volkswagen and Audi forged connecting rods!

When increasing the power output of your 2.0T TSI engine, internal parts begin to fail as they are pushed far beyond their original factory spec limits.  Integrated Engineering Forged Connecting Rods are designed to replace the factory units and take the beating from today's high-output power modifications.

Drive fast and reliably with IE performance rods, guaranteed to support 700HP!


  • 22mm wrist pin for use with all aftermarket 22mm pistons only
  • Forged from vacuum drawn 2 piece 4340 chrome moly steel
  • Upgraded H beam design greatly increases strength and durability
  • Combination tested to 700HP on 4 cylinder engines
  • Includes IE Spec ARP 2000 rod bolts with "IE" stamp to ensure a genuine product
  • Individual computer-optimized design to match unique VW/Audi engine applications
  • Honed to exacting tolerances within 250 millionths of an inch
  • Optional forced pin oiling (rifle drilling) for long wrist pin life
  • Each connecting rod set is balanced to weights within +/- 1 gram
  • Dimensionally and magnaflux inspected to ensure extreme reliability
  • Multi-stage heat treated for dimensional stability and fatigue life
  • Compatible Pistons:
    • MAH-PVN1
    • MAH-PVN2
  • Compatible Bearings:
    • MAH-VC1027
    • OEM-18T-RBSET

What's Included:

  • Integrated Engineering Forged Connecting Rods

Vehicle Fitment

Model   + Drivetrain
1F EOS 2.0T I4
5C Beetle 2.0T I4
5C Beetle 2.0T I4 [GEN 3]
5N Tiguan 2.0T I4 +
5NA Tiguan 2.0T I4 [MQB] +
8J TT 2.0T I4 +
8J TTS 2.0T I4
8P A3 2.0T I4 +
8R Q5 2.0T I4 +
8S TT 2.0T I4 [MQB]
8S TTS 2.0T I4 [MQB]
8U Q3 2.0T I4 +
8V A3 2.0T I4 [MQB]
8V S3 2.0T I4 [MQB]
B8 A4 2.0T I4 +
B8 A5 2.0T I4 +
C7 A6 2.0T I4 +
MK1 Arteon 2.0T I4 [MQB] +
MK1 Atlas 2.0T I4 [MQB] +
MK5 GTI 2.0T I4
MK6 GTI 2.0T I4
MK7 GTI 2.0T I4 [MQB]
MK7 R 2.0T I4 [MQB]
