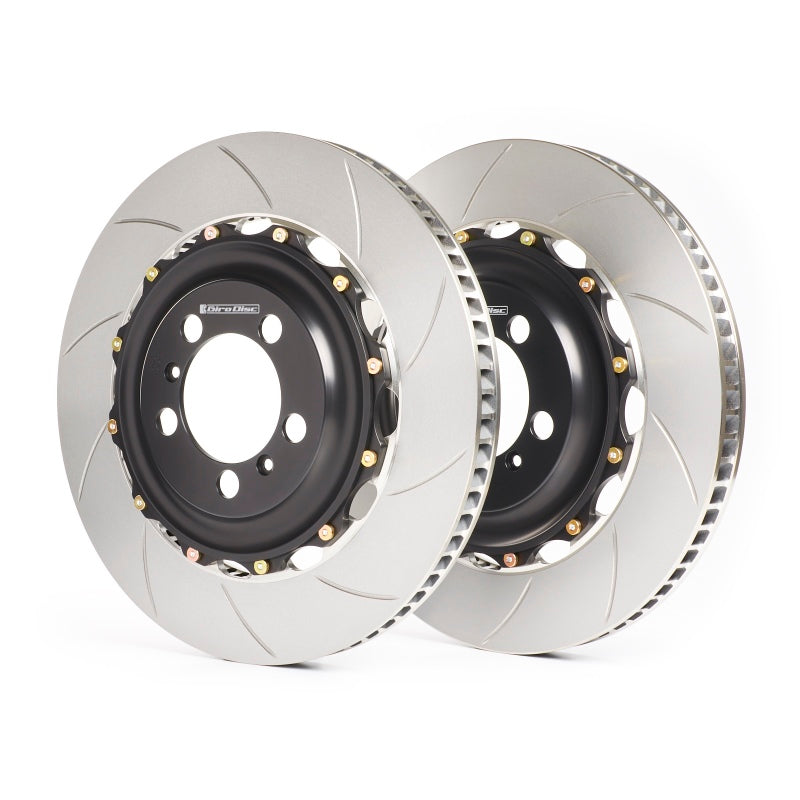

GiroDisc Front Rotors Slotted R8 · B8 RS5 · C5 RS6

The Girodisc system is a direct replacement for the OE disc with the addition of our provided caliper spacers.  Our rotor is slightly larger than the OEM rotor at 380mm versus 365mm providing greater braking force and cooling capacity.

The central hat section of our rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum.  The disc is made from our own proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc.  The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.

The rotor and hat have a floating mount system, which utilizes 8 or 10 high strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for a long lasting corrosion resistance.  These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc.  The pins are secured by grade 12 cap screws with hardened washers.  In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors.  This float also allows the rotor to self center between the pads.

Features:

• 380mm GiroDisk Rotor versus 365mm OE rotor
• Floating, 2-Piece Design
• Curved Vanes Force Cooling Air through Brake Disc
• Cadmium Plated Hardware for Corrosion Resistance
• Made in the USA!

What's Included:

• GiroDisk Front Rotors Slotted (Pair)
