Eventuri Carbon Fiber Intake - Audi 8Y S3 and 8S TTS

Fitment: Audi S3 8Y

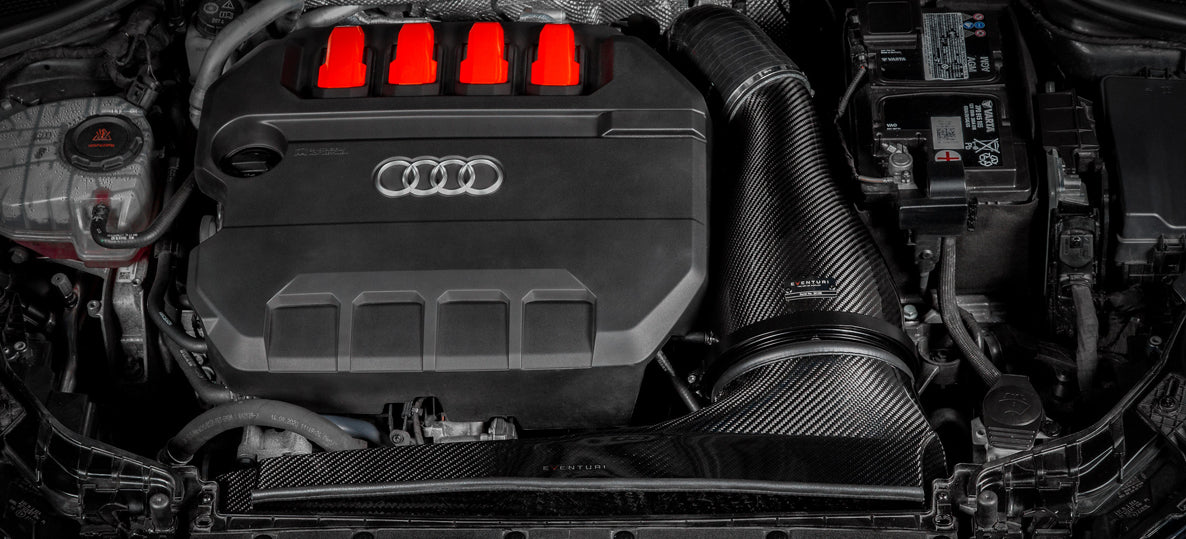

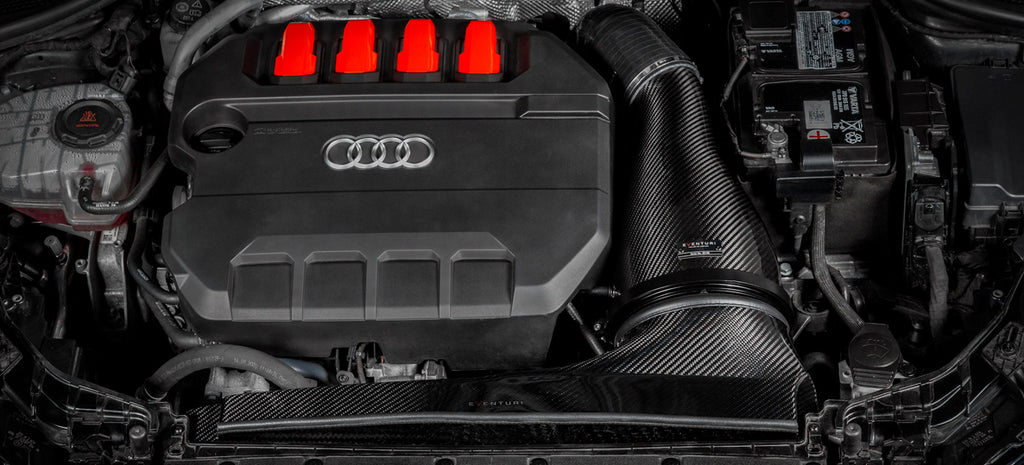

The S3 8Y intake is a complete redesign of the stock intake all the way to the turbo inlet. Taking cues from our RS3 intake, we have maximised usage of the available space to create an intake which can cater for all power levels from stock to high power builds with hybrid or full frame turbos. This intake system has been developed to offer the highest possible flow rate whilst maintaining the lowest intake temperatures possible. Each component has been designed to provide the turbo with a smooth and free flowing path. The restrictive stock 73mm diameter inlet tube is replaced with a larger 94mm diameter tube intake tube. The filter itself has an outer diameter of 192mm or 7.5″ with a filtration surface area of over 110,000mm^2. The patented Venturi housing has been designed to provide the maximum internal volume possible for the S3 engine bay space available and provides laminar flow to the turbo tube. Finally the duct seals the filter opening to the front slam panel but is not restricted by just the stock entry feed. We have lifted the front of the duct to now provide an extra opening behind the hood which is equivalent to an extra 7″ diameter hole for the intake to draw from. The resulting system can significantly outflow the stock airbox while keeping intake temperatures at a minimum with the sealed design.

The Eventuri Difference

The S3 8Y Eventuri system uses our Patented Carbon fiber Housings which provide an aerodynamically efficient airflow path from the filter to the turbo tubing. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect.

Features:

• Performance Gain (Stock Golf R): 10-13hp, 12-15Nm

• Performance Gain (Tuned Golf R): 15-20hp, 25-30Nm

• Flow Bench Data: Stock Intake 455 CFM : Eventuri Intake 783 CFM
• High Flow Air Filter

• Premium Carbon Fiber Construction
• Perfect OE-like Fitment

What's Included:

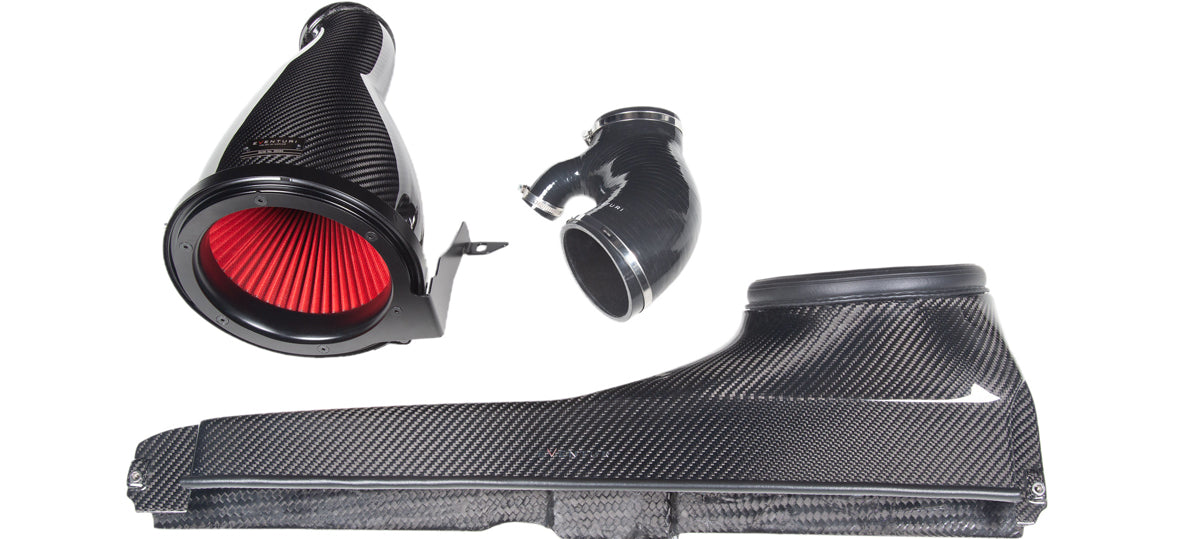

• Eventuri Carbon Fiber Intake
