CTS Turbo Intercooler TSI [GEN 1]


COVID-19 may cause delays!


SKU: CTS-20T-MK6-DF We Price Match!
CTS Turbo

  • $799.00

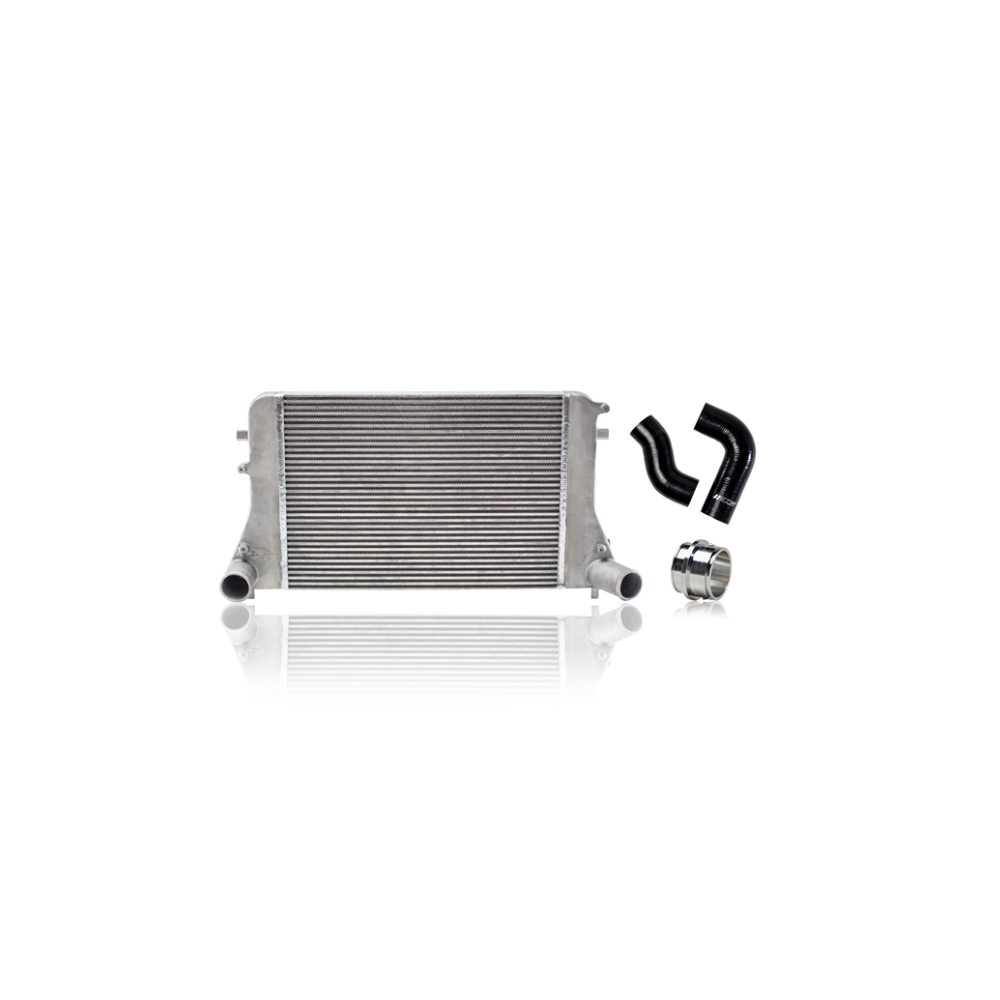

The CTS 2.0T Direct Fit FMIC Kit is designed as a drop-in replacement for the OEM front-mounted intercooler (FMIC).   That means you can install this kit without any trimming or modification of the bumper.  The OEM FMIC is adequate for stock boost levels, however, once boost levels are increased by way of ECU upgrades/chipping the OEM FMIC struggles to keep the charged air temperatures in check.   Higher charged air temperatures can result in boost cut and timing pull, both reducing the amount of power your vehicle produces.

The CTS direct fit FMIC uses a high-efficiency bar and plate intercooler core, which aids in reducing pressure drop.  Reducing pressure drop means that your turbo will not have to work as hard to make a given level of boost.  If your turbo makes 30psi of boost pressure in the turbocharger, and your intercooler has a 10psi pressure drop then the boost measured by your ECU would be (30psi – 10psi) = 20psi

With an efficient FMIC like the CTS direct fit FMIC, your turbo does not have to work as hard to reach desired boost levels.   This is beneficial in two ways, the turbo life expectancy is increased due to more efficient operation, and boost leaving the turbocharger is cooler and denser resulting in more power to the ground.


  • Efficient bar and plate construction
  • Direct bolt-in installation
  • 4-ply silicone hoses and billet adapter to the turbo outlet pipe
  • High quality stainless steel clamps
  • Low-pressure drop
  • Maintains factory mounting points
  • No trimming of bumper or crash supports
  • Rated for power levels in excess of 600HP
  • Core dimensions: 23.00 Length x 2.00″ Tall x 16.5″ Height
  • Cast aluminum end tanks with mounting points

What's Included:

  • CTS Turbo Intercooler
1B Jetta · GLI 2.0T I4 FWD
8J TT 2.0T I4 FWD + AWD
8P A3 2.0T I4 FWD + AWD
B6 CC 2.0T I4 FWD + AWD
B6 Passat 2.0T I4 FWD

ATTENTION MK7.5 · B8.5 · C7.5 · 8.5V OWNERS:

Although MOST parts DO FIT FACELIFT MODELS such as the MK7.5, C7.5 and B8.5, some components such as exhaust systems and headlights are NOT ALWAYS perfectly upward compatible and vice versa due to minor changes in body design such as fenders, bumper and valences.

Please contact us via chat, phone or eMail if you are uncertain about product fitment on your facelift model.
