ARM Motorsports N54 Inlets - E82/E90/E92/E93

Free Shipping
ARM MotorsportsSKU: N54RI175

Select Inlet Size: 1.75" - Stock Turbos
Add 1.75" to 2.0" Adapter?: No

Direct Ship!

Buy Now & Pay over time with

Product Questions & Answers

Product Questions & Answers

Be the first to ask a question!

Ask a Question


The ARM Motorsports N54 Inlets are the ultimate relocated inlet system for your N54.  Relocating the inlets on your N54 with the ARM Inlets increase the power and torque of your N54 up to 60whp/60wtq. Expect improved turbo spool, faster peak boost, and more volume from the turbochargers on your N54.  If you're looking to max out your stock or upgraded twin turbochargers these are a must!

The stock N54 inlets are narrow and flat, greatly restricting airflow to the turbochargers and handicapping their ability to spool quickly and hit target boost. The stock inlets connect from turbos on the passenger side of the engine to the airbox or upgraded intake on the driver-side, essentially "hugging" the engine.  The stock inlet for the rear turbo wraps behind the engine while the stock front inlet wraps around the front of the engine where they come to meet on the driver-side and connect to either the stock airbox or upgraded intake, whichever you have your N54 equipped with.

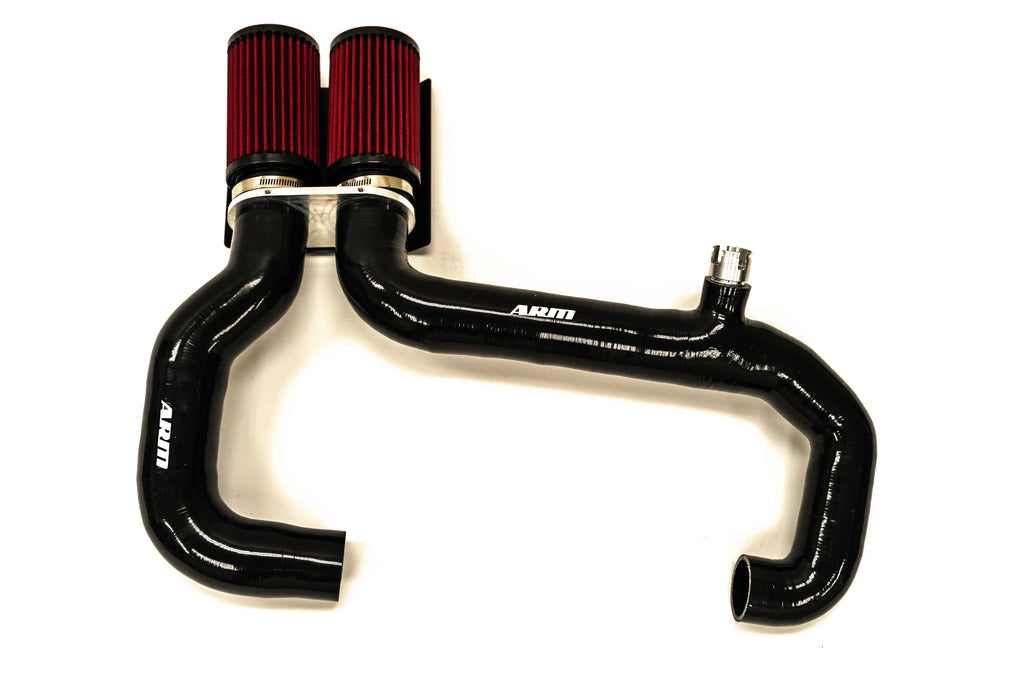

The ARM N54 Relocated Inlets are constructed of high-temperature steel-reinforced silicone and move the intake filters for the turbochargers from the driver-side of the engine over to the passenger-side, reducing the length the intake air needs to travel significantly.

One of the greatest challenges when upgrading to relocated inlets on your N54 is mitigating the heat of the air induced by the turbos.  With the inlets relocated to the passenger-side the filters are closer to the turbochargers where temperatures are hotter.  The ARM N54 Inlets come with a manifold heat shield which serves to help keep heat down near the turbos and away from the inlet filters.  It also assists with keeping heat away from the inlet tubes themselves.

In addition, the ARM Inlets come with an air filter heat shield which assists in keeping the cooler air near the filters separate from hotter air coming from the engine adjacent to it.

What's Included:

  • ARM Relocated Inlets
  • Manifold Heat Shield
  • Air Filter Heat Shield
  • Coolant Reservoir Relocation Brackets
  • Power Steering Reservoir Relocation Bracket
  • Boost Solenoid Bracket
  • Clamps

Vehicle Fitment

Model   + Drivetrain
E82 - E88 135i 3.0T I6 [N54]
E82 - E88 135i 3.0T I6 [N55]
E90 335i 3.0T I6 [N54] +
E90 335i 3.0T I6 [N55] +
E92 335i 3.0T I6 [N54] +
E92 335i 3.0T I6 [N55] +
