This is a Universal Fitting Product
This Part Fits Your Vehicle
Product Information
An ARM FMIC upgrade is one of the best modifications for your 135i because not only does it yield an average of 25whp and 27wtq but it does so consistently. "How?" you may ask. When you increase power with a tune for example, you are increasing boost pressure and ultimately heat in the engine. When the ECU (DME) detects too much heat, it will actually reduce timing and limit the amount of power the engine can produce in order to avoid damage. What an ARM intercooler upgrade does for your 135i is keep the intake air temperature in the ECU's "safe zone", allowing it to maximize all the modifications you have on your car.
How is that extra power made? The temperature of the charged air going into the engine, or IAT (Intake Air Temperature), is a key metric. This factor is essential because the cooler the temperature of the charged air, the more dense it becomes, and the increased density equals more power with the proper tuning. The higher the IAT is, the less power the car will make. In an independent test, the OEM intercooler reached a very high, power-robbing temperature of 151 degrees Fahrenheit. The same car equipped with the ARM 5" Stepped intercooler was able to keep its power up with a very cool 106 degrees Fahrenheit. That's an impressive 45 degrees cooler than the OEM intercooler!

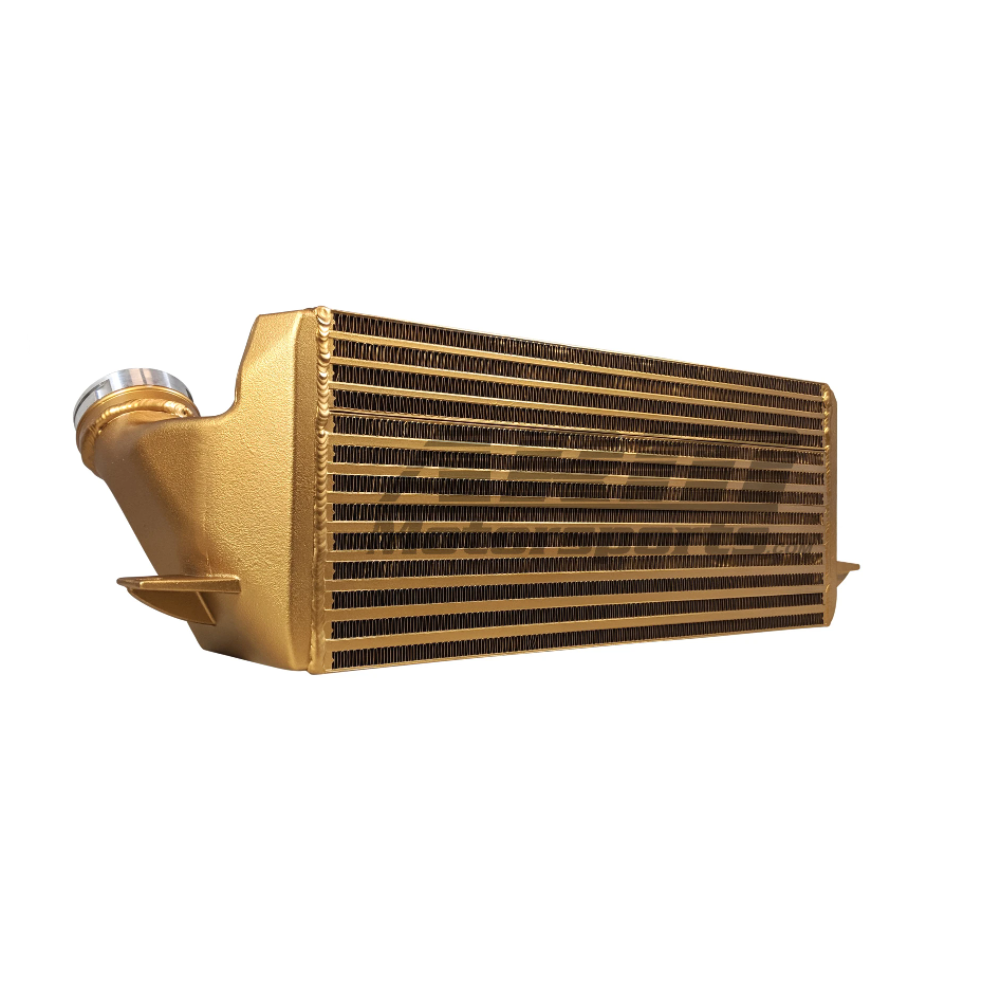

The ARM Motorsports 135i FMIC increases cooling efficiency and power on your N54 or N55 equipped 135i by using a 5" stepped core which maximizes intercooler size to almost 47% BIGGER than OEM. This is achieved without the need for irreversible cutting or trimming to your bumper. It retains all the OEM crash bars and bumper pads as well. The ARM 5" FMIC is the first ever intercooler upgrade for the E82 135i engineered with CAD-designed CNC aluminum connectors for you to utilize either the OEM intercooler hoses or the ARM FMIC Hose Upgrade. Opting to utilize the OEM connectors will make for a faster installation. While upgrading your 135i to the massive ARM 3" intercooler hoses, you will be giving your 135i maximum airflow by removing any restriction the OEM connections may have on the charged air.
Features:
- Gain up to 25whp/27wtq
- Increased Cooling Efficiency
- Reliable Performance
- Direct Fit
- Fast and Easy Install

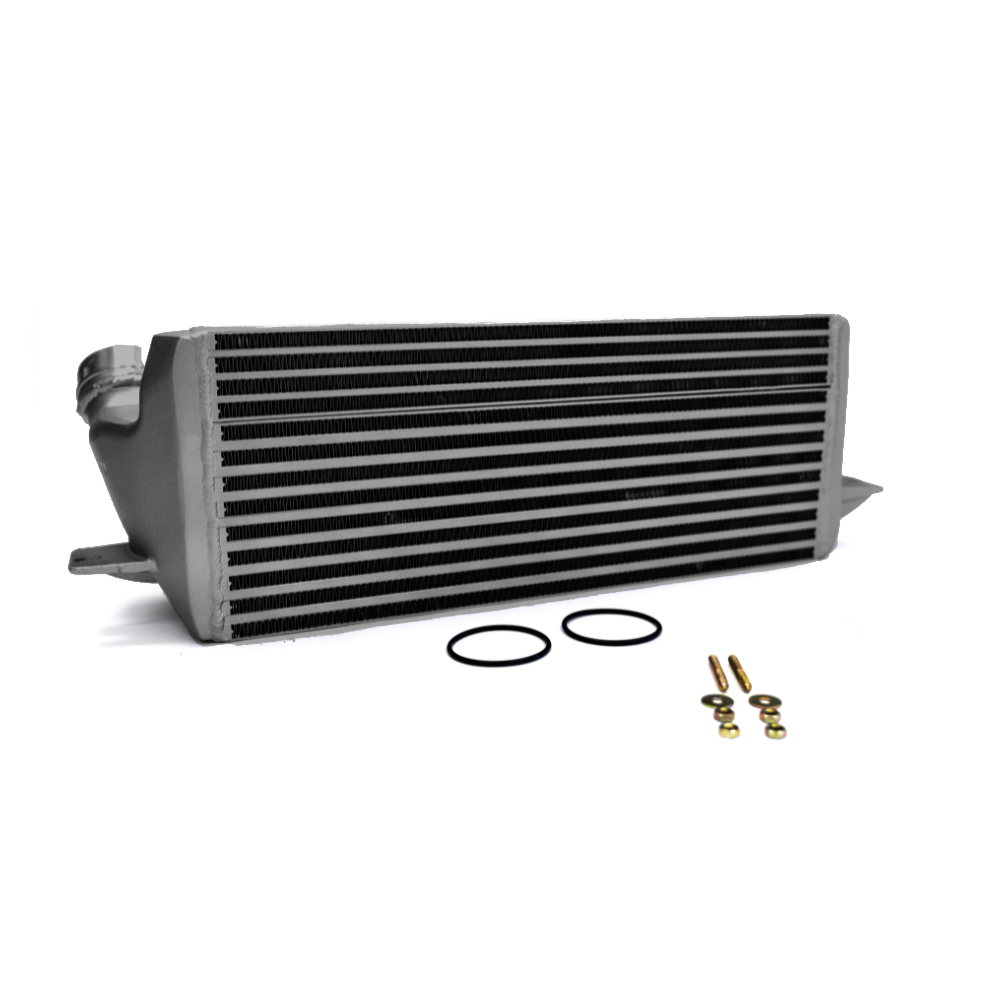

What's Included:
- ARM 5" FMIC
- Mounting Hardware
NOTE: Product images shown may not be an exact representation of the actual product.
Model + ![]() |
Drivetrain ![]() |
|---|---|
| E82 - E88 135i 3.0T I6 [N54] | |
| E82 - E88 135i 3.0T I6 [N55] | |
| E82 - E88 1M 3.0T I6 [N54] | |
| E90 335i 3.0T I6 [N54] | + |
| E90 335i 3.0T I6 [N55] | + |
| E92 335i 3.0T I6 [N54] | + |
| E92 335i 3.0T I6 [N55] | + |
