Product fits FWD and AWD Vehicles!
- B9 A4 2.0T I4
- B9 A5 2.0T I4

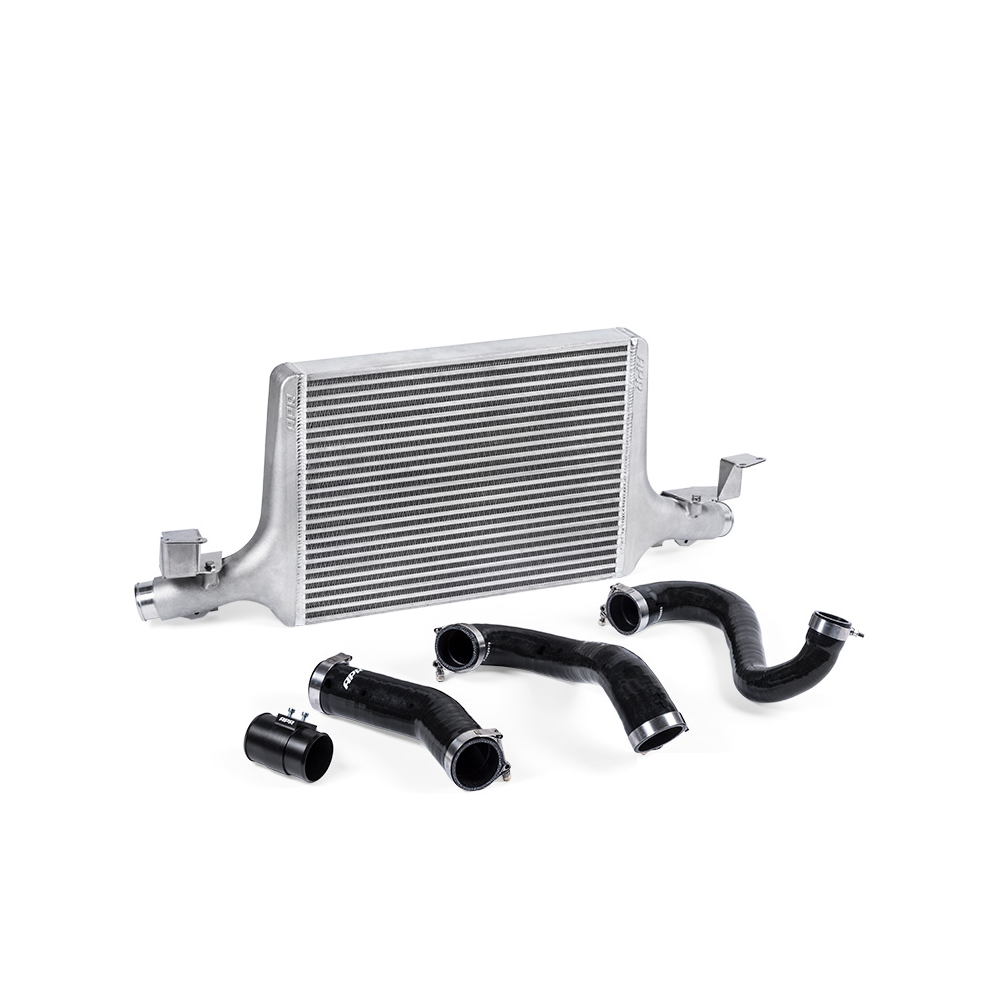

APR Intercooler B9 2.0T
P/N: IC100022 We Price Match!
The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.
Dramatically lowers intake air temp (IAT)
Increases HP while minimizing power-robbing heat soak!
Retained as high as 45 AWHP compared to the factory system!
Massive frontal surface area and core volume
3.125" x 5.75" x 28.25" - 162.4 in² frnt. & 507.62 in³ volume - OEM
2.250" x 16.2" x 22.00" - 356.4 in² frnt. & 801.90 in³ volume - APR

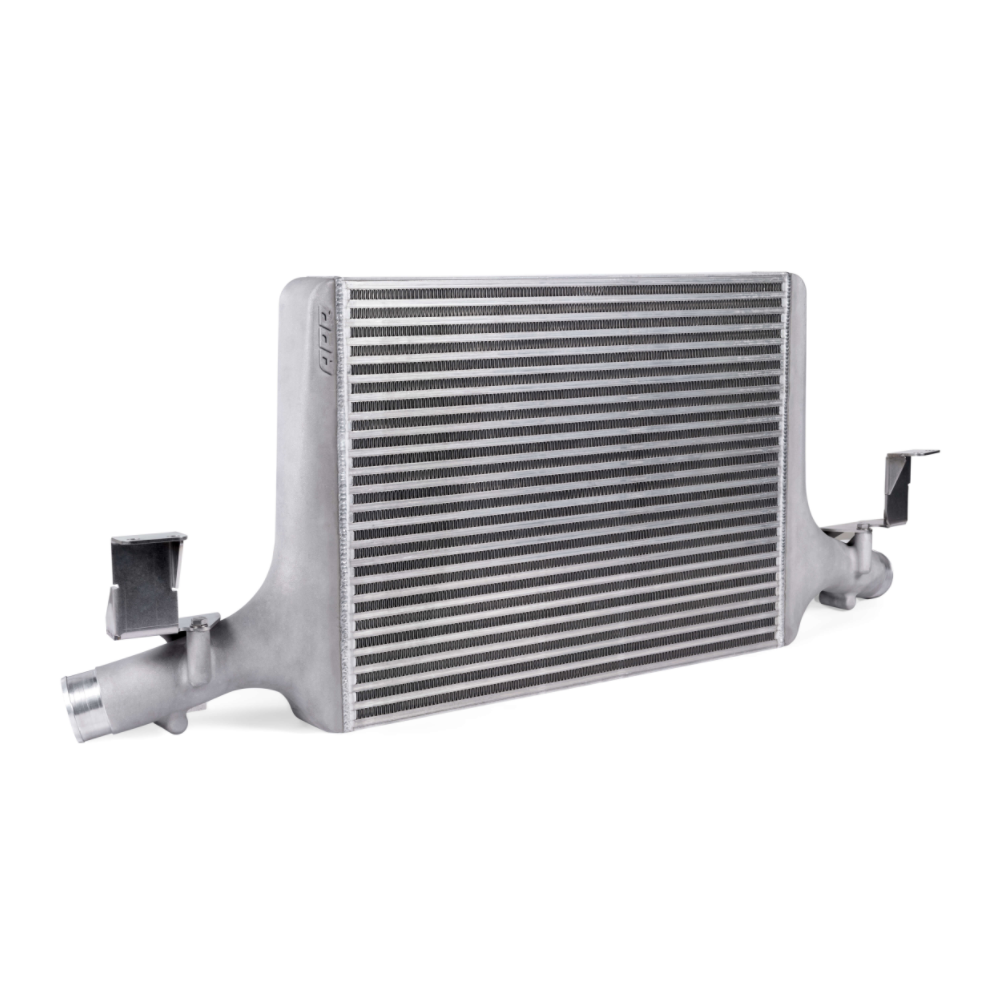

Highly effective core design
Bar-and-plate core with staggered and louvered fins.
Rigorous testing determined core style, fin density, and size.
Low pressure drop + highly effective cooling = high performance!
Smooth cast end tanks
Engineered for low turbulence/restriction and maximum flow.
Organically shaped to promote airflow across entire core.
Pressure tested to prevent power robbing boost leaks.

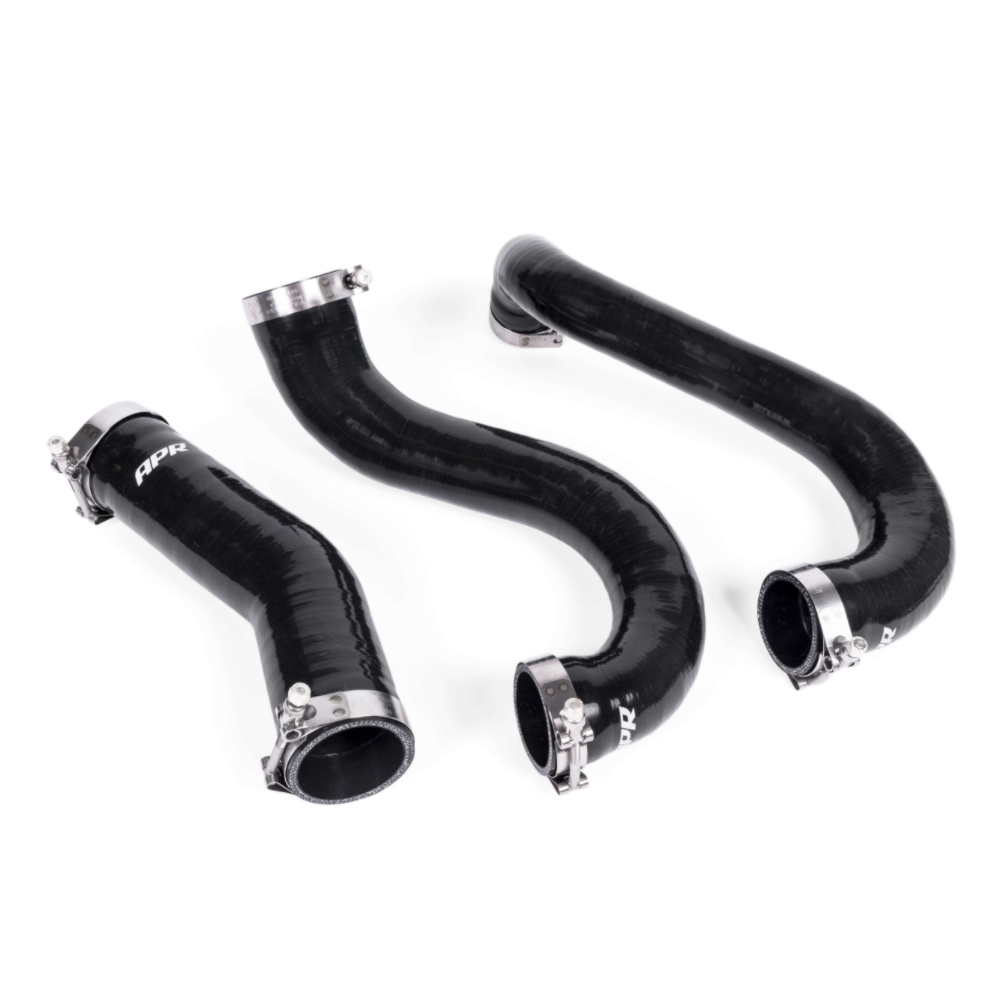

Silicone inlet and outlet hoses
Multi-ply silicone design with internal wire reinforcement, fluorosilicone internal protective layer and APR’s EZ-Flow stepped design.
Clampco T-bolt clamps
Strong, stainless-steel Clampco T-Bolt clamps provide better clamping for increased protection against hose slippage and boost leaks.

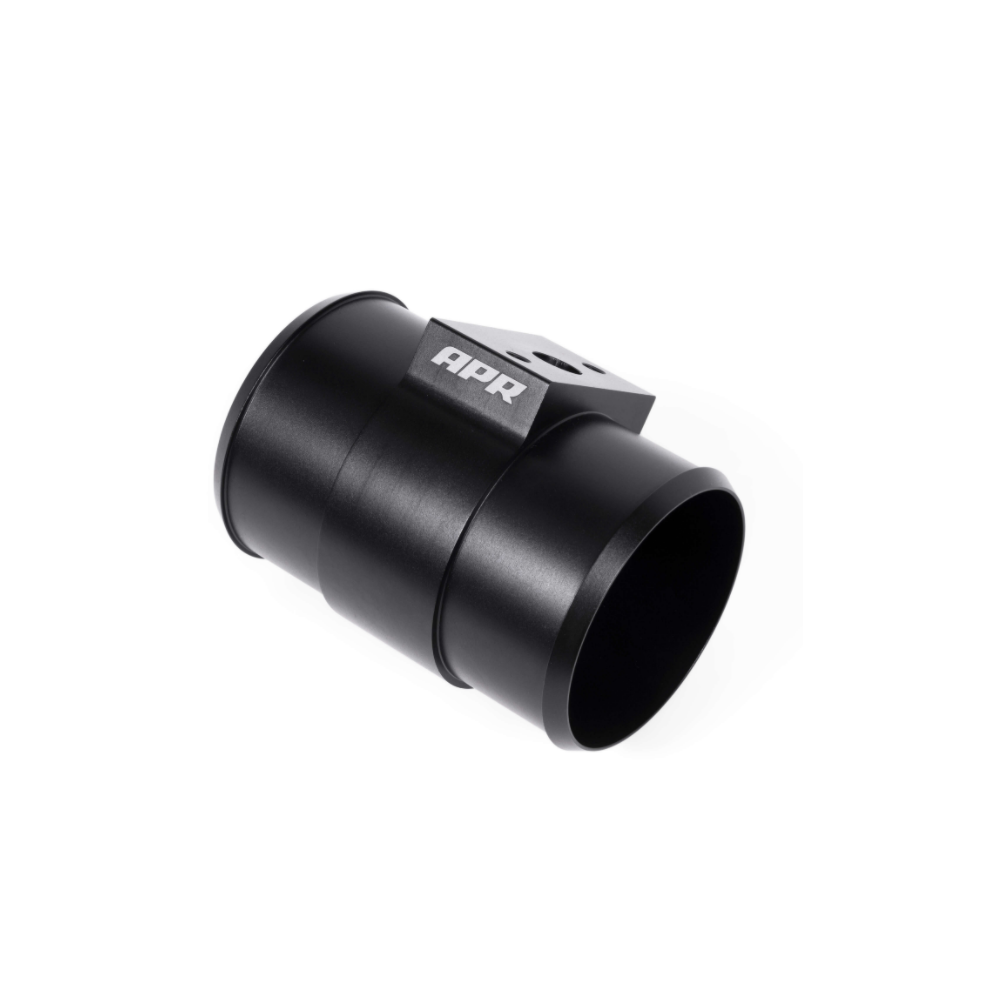

Billet MAP housing
Precision CNC-machined for secured sensor placement with an attractive matte-black anodized finish.
Easy to install
Simple bolt-on install with no trimming or drilling necessary!
Designed by engineers with lasers
With the best equipment and smartest engineers, it just works!
