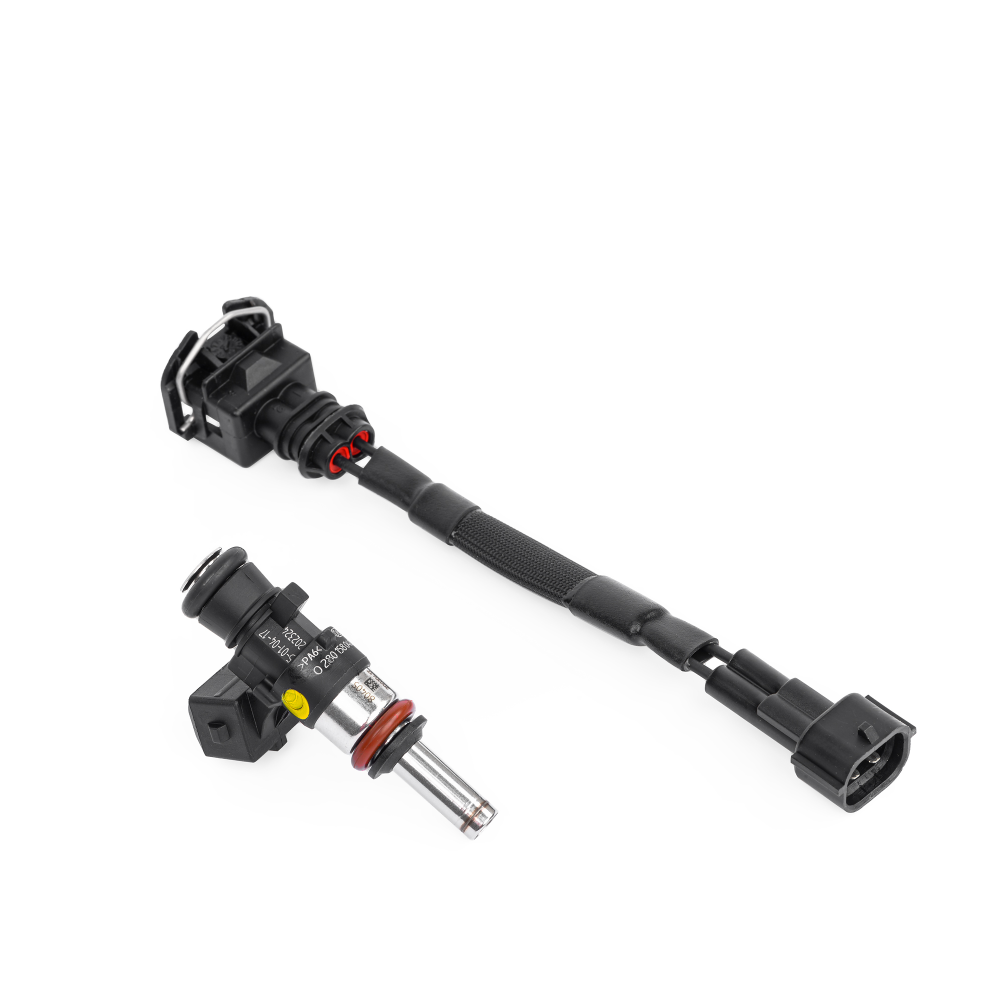

High horsepower configurations often require more fuel, especially on applications where ethanol is used.  The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds.

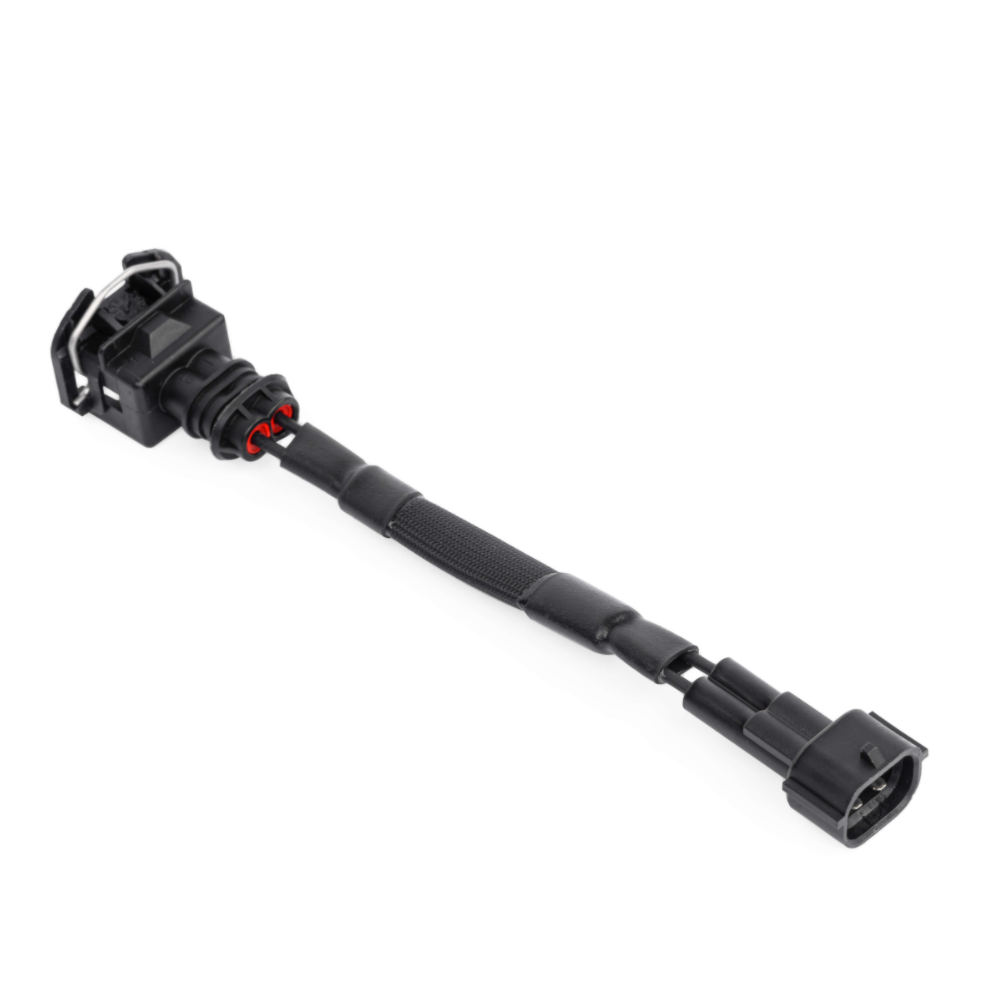

The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar.  A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.

This injector upgrade is only compatible with matching ECU software. On the 2.5 TFSI EA855 EVO the injector is plug-and-play with software.  On the EA888 Gen 3, the injector is plug-and-play, with software, on models that include factory MPI injection.  On models without factory MPI injection, more components are required.  If used for methanol injection, the valves must be flushed with standard gasoline after use.

Features:

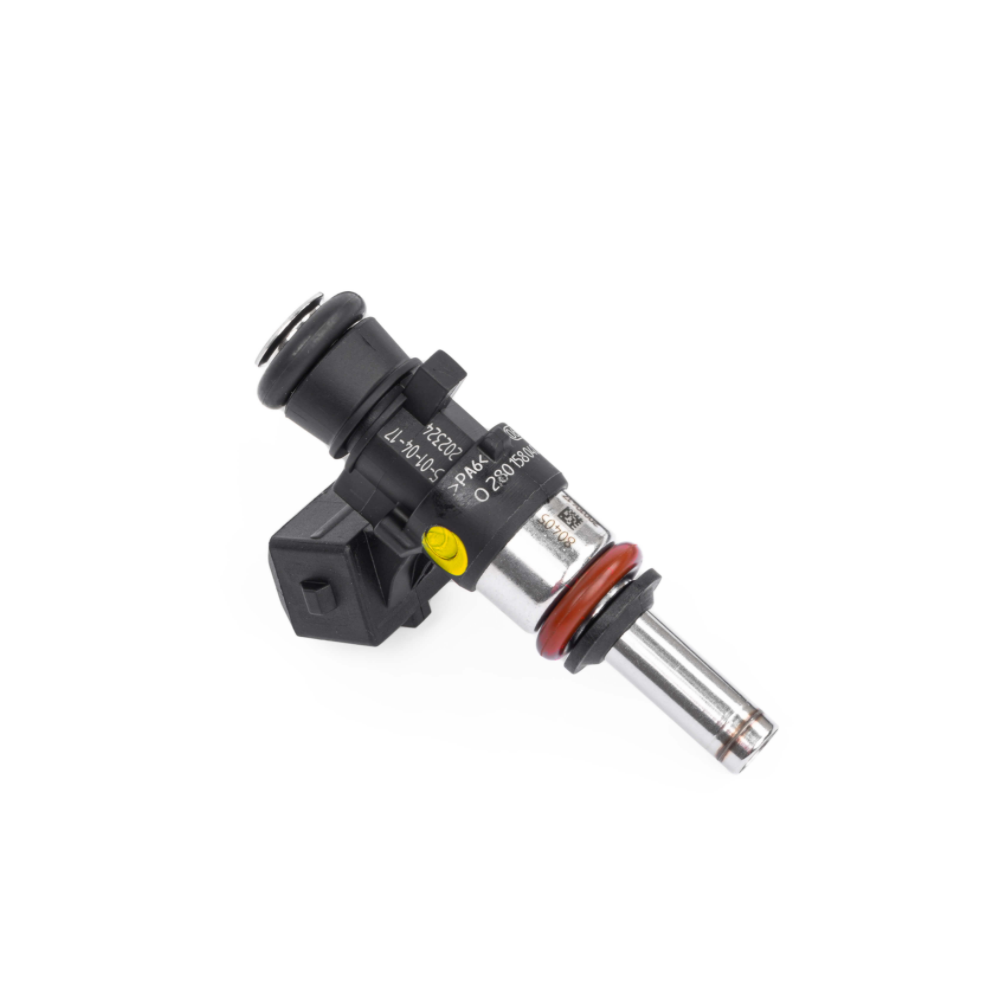

  • Bosch EV 14 CKxT MPI injector (0 280 158 040)
  • APR Bosch Jetronic to OEM 2 pin harness
  • 980cc/min, 670g/min, or 89lb/hr @ 3 bar (n-heptane)
  • Supports up to 8 bar of use in motorsport configurations
  • E85 and M100 compatible
  • 30° single cone spray angle with 0° bent angle and 0° gamma angle
  • 33.6mm compact body

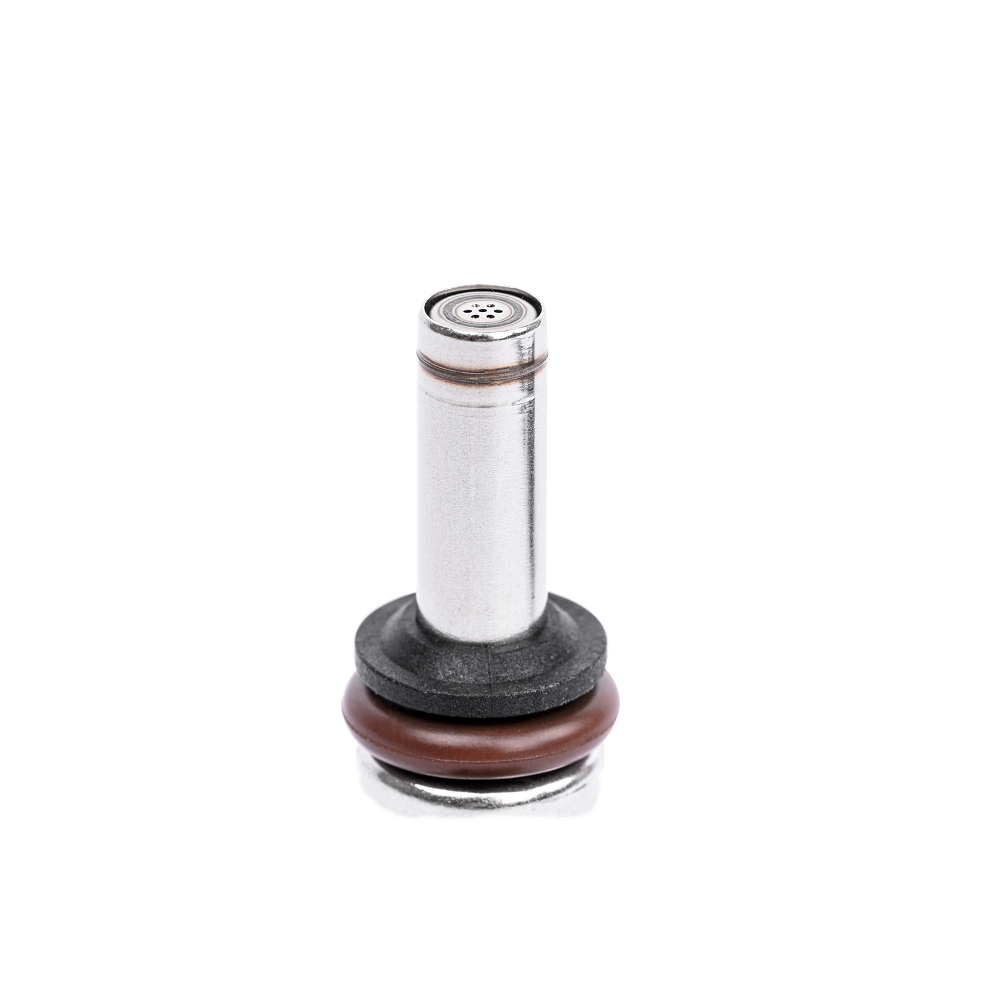

  • 24mm extended tip nozzle
  • Top-feed injector
  • 12 ohm coil resistance
  • 150 mm long harness with braided wire sheathing
  • ECU software required for use
  • Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3, where supported

What's Included:

  • APR 980cc MPI Injector Kit MQB (SOLD INDIVIDUALLY)
MODEL DRIVETRAIN
8S TT 2.0T I4 [MQB] AWD
8S TT RS 2.5T I5 [MQB] AWD
8S TTS 2.0T I4 [MQB] AWD
8V A3 1.8T I4 [MQB] FWD
8V A3 2.0T I4 [MQB] AWD
8V RS3 2.5T I5 [MQB] AWD
8V S3 2.0T I4 [MQB] AWD
MK7 Golf 1.8T I4 [MQB] FWD
MK7 Golf Alltrack 1.8T I4 [MQB] AWD
MK7 Golf Sportwagen 1.8T I4 [MQB] FWD + AWD
MK7 GTI 2.0T I4 [MQB] FWD
MK7 Jetta · GLI 2.0T I4 [MQB] FWD
MK7 R 2.0T I4 [MQB] AWD

ATTENTION MK7.5 · B8.5 · C7.5 · 8.5V OWNERS:

Although MOST parts DO FIT FACELIFT MODELS such as the MK7.5, C7.5 and B8.5, some components such as exhaust systems and headlights are NOT ALWAYS perfectly upward compatible and vice versa due to minor changes in body design such as fenders, bumper and valences.

Please contact us via chat, phone or eMail if you are uncertain about product fitment on your facelift model.
