034Motorsport SüperDüper Throttle Body Upgrades - B8/B8.5 S4/S5

SKU: 034-108-1911

Select Option: SüperDüper Charger Adapter TB 84mm 3.0T
Sale price$216.00

Direct Ship!
Description Fitment Warranty Q&A (0) Reviews (0)

Product Information

Süpercharge the performance of your B8/8.5 Audi S4/S5 with the 034Motorsport SüperDüper Charger Throttle Body Adapter. The purpose of this kit is to improve power beyond the factory throttle body found on the supercharged 3.0 TFSI engine in the B8/8.5 S4/S5s in a clean and cost-effective package.

034Motorsport Dynamic+ Tuning is required to safely run this SüperDüper S34 Insuction Bundle. Files to support this upgraded hardware are included with our Stage 2+ 91, 93, 100, 104, & E40 octane options free of charge. Simply select the file designated with SüperDüper and you’re good to go! NOTE: This is only for Stage 2+ files. We do not have Stage 1 or Stage 2 files for the SüperDüper Charger.

SuperDuper Adapter - This kit includes the cast and machined A356 aluminum throttle body adapter and adapter to supercharger gasket, allowing users to port match the supercharger to the adapter during supercharger porting, allowing for increased airflow. Purchase this kit if you need an additional adapter to send out to have port matched to your supercharger or if you need a replacement.

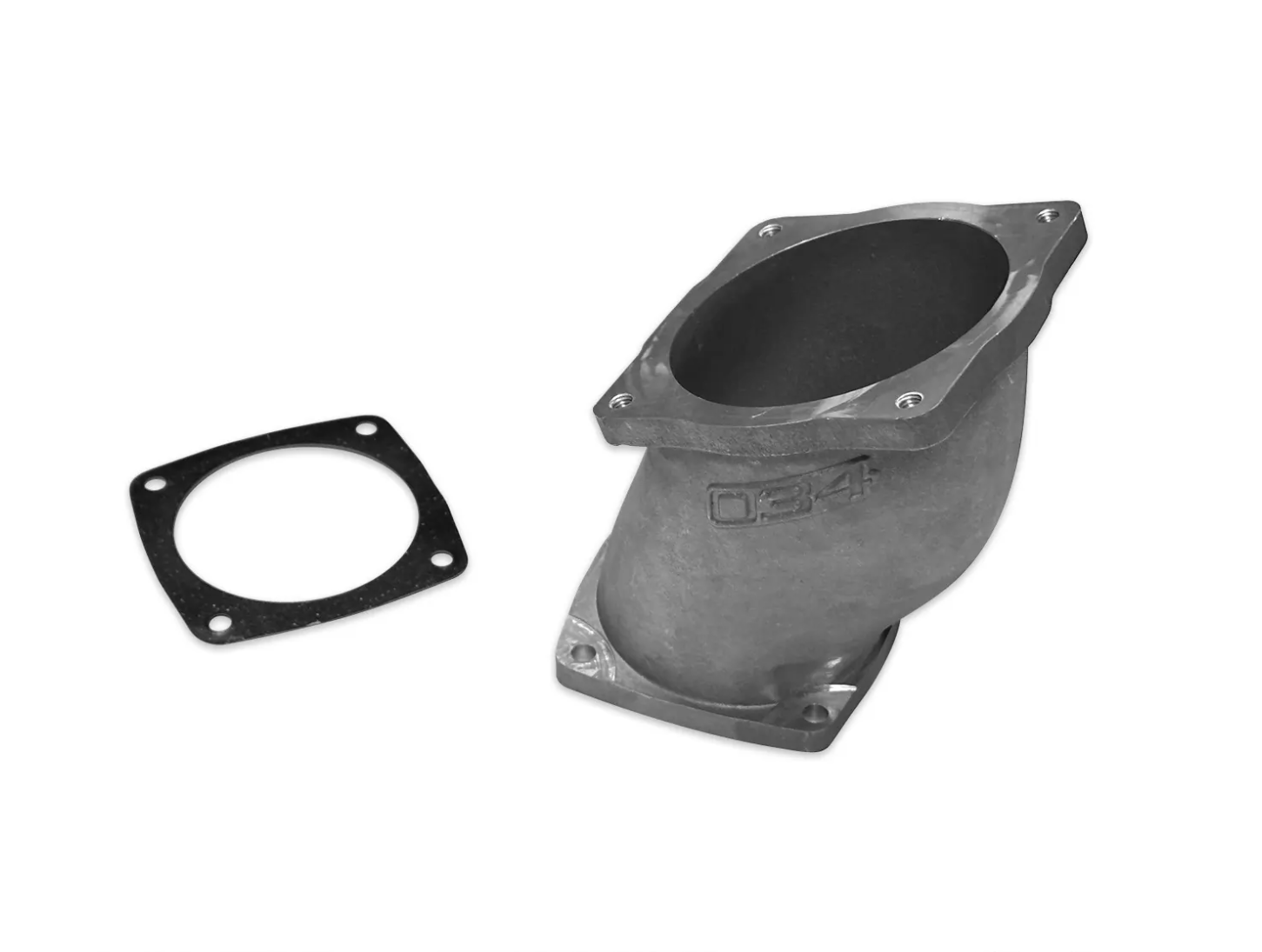

034Motorsport SüperDüper Charger Throttle Body Adapter - This kit includes the Cast throttle body adapter ONLY, and does not include a throttle body. Purchase this kit if you already have an 84MM VDO Throttle body & S34 Intake System

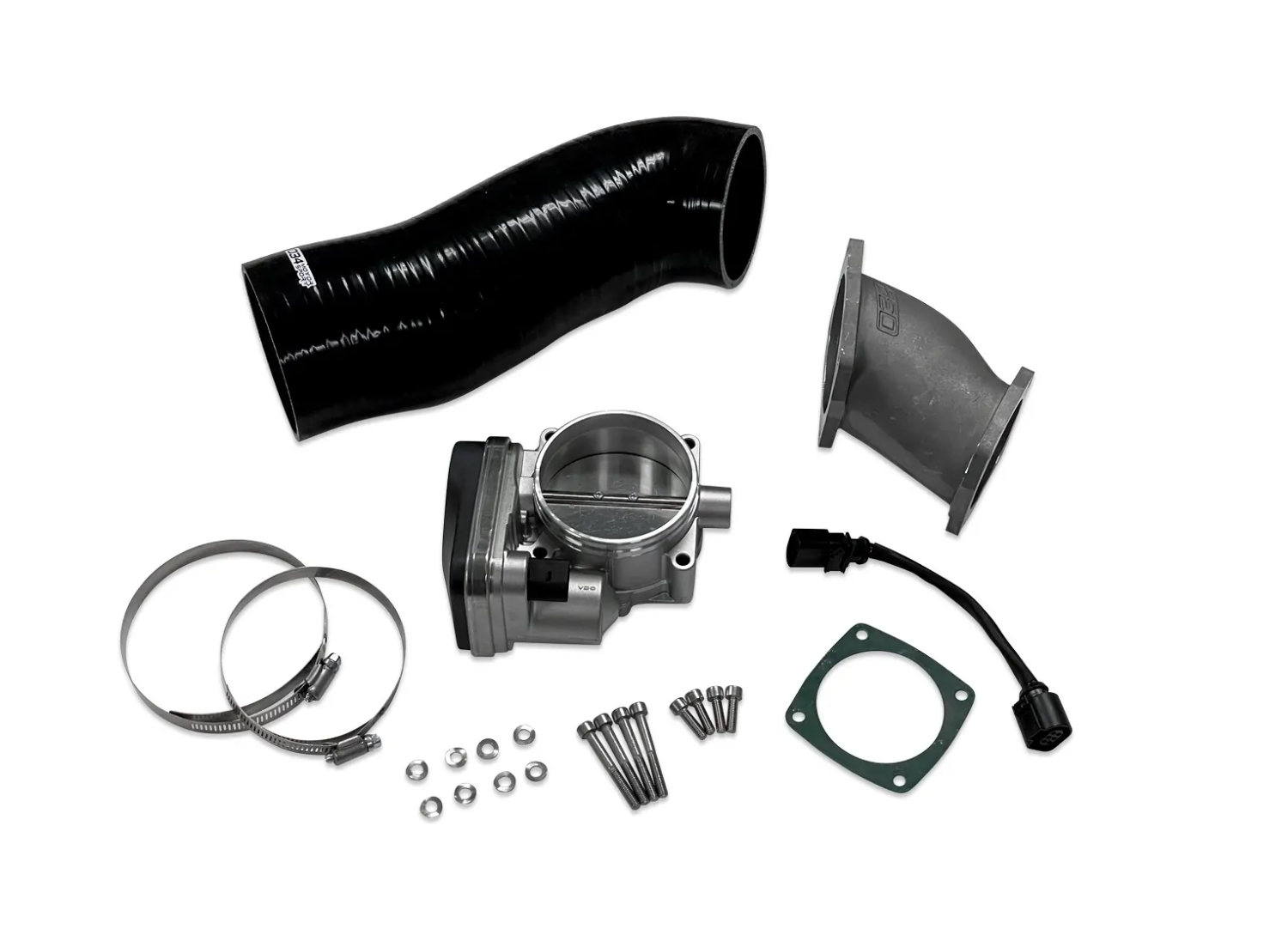

034Motorsport SüperDüper Charger 84mm Throttle Body System - Süpercharge the performance of your B8/8.5 Audi S4/S5 with the 034Motorsport SüperDüper Charger 84mm Throttle Body System. The purpose of this kit is to improve power beyond the factory throttle body found on the supercharged 3.0 TFSI engine in the B8/8.5 S4/S5s, in a clean and cost-effective package. Purchase this kit if you already have the S34 Intake System and would like to upgrade your throttle body.

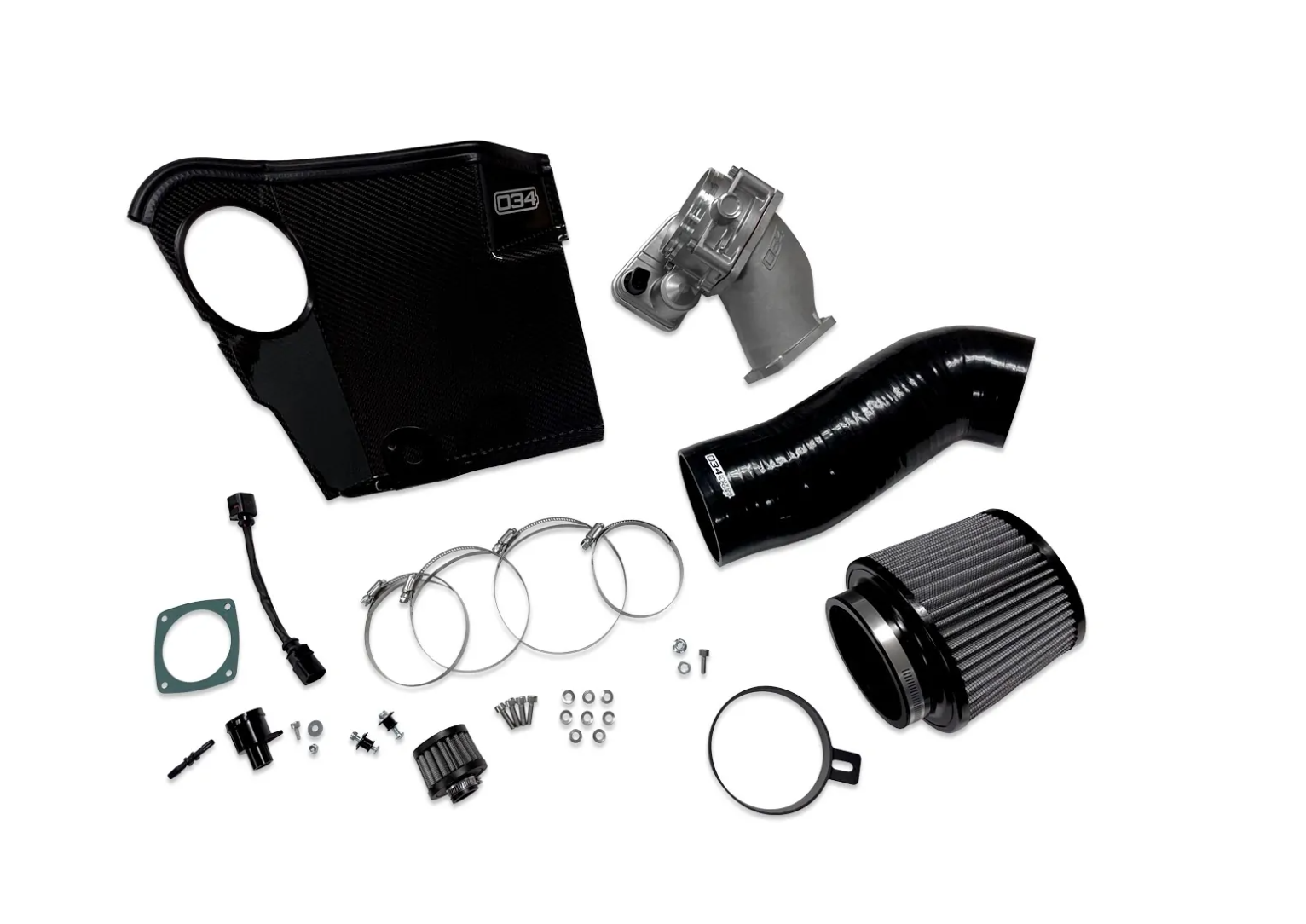

SüperDüper S34 Insuction Bundle - The SüperDüper S34 Insuction Bundle includes all of the best 034Motorsport products required to upgrade your intake system in one comprehensive and convenient package. Included with this kit are the SüperDüper 84mm Throttle Body System and S34 Carbon Fiber Intake. Purchase this kit if you do not have an S34 Intake System.

    SüperDüper Charger Features:

    • Cast and Machined A356 Aluminum Throttle Body Adapter
    • Upgrades to a VDO 84mm Throttle Body
    • Improved Flow Where the Stock Throttle Body Becomes Restrictive
    • 20% Increase in Flow Over the OE Throttle Body
      • Stock 70mm Throttle Body & Intake : 293 CFM
      • 034Motorsport 84mm SüperDüper S34 Insuction Bundle: 452 CFM
    • OEM BMW V8 Throttle Body for Reliability and Long Lasting Performance
    • Smooth Transition from the Large Throttle Body to the Supercharger Inlet
    • Throttle Body Adapter and Gasket Can be Port Matched to the Supercharger During Supercharger Porting, Allowing Even More Flow
    • Wire-Reinforced Multi-Ply Silicone Hose
      • Maintains Smooth Inside Surface for Optimum Flow
      • Nylon Breather Tube Connection Nipple

    S34 Carbon Fiber Intake Features:

    • Developed In-House by 034Motorsport's Engineering Team
    • Fits Both Left and Right Hand Drive Configurations
    • High-Quality Carbon Fiber Air Block-off Shield
    • High-Gloss Epoxy Finish
    • 4-Ply Gloss Black Silicone Intake Tube
    • OEM+ Fit and Finish
    • No Rubbing or Excessive Movement
    • Dyno-Proven Horsepower Torque Gains
    • Improved Airflow from Factory Airbox and Intake Tube
    • Enhanced Engine Induction Sounds
    • Improved Throttle Response
    • Large 4" Inlet Conical Pleated Cotton Air Filter
    • Reduced Intake Air Temperature
    • Securely Installs Using Factory Mounting Grommets
    • Simple, Straightforward Installation Instructions

    What's Included:

    SüperDüper S34 Insuction Bundle:

    • Carbon Fiber Heat Shield
    • 4" Inlet Conical Pleated Cotton Air Filter
    • 4" Aluminum Filter Coupler
    • SAI Adapter and Filter
    • 84mm VDO Throttle Body
    • SüperDüper Throttle Body Adapter
    • 4-ply Reinforced Silicone Hose
    • Wiring Harness Adapter
    • Adapter to Supercharger Gasket
    • All Necessary Hardware

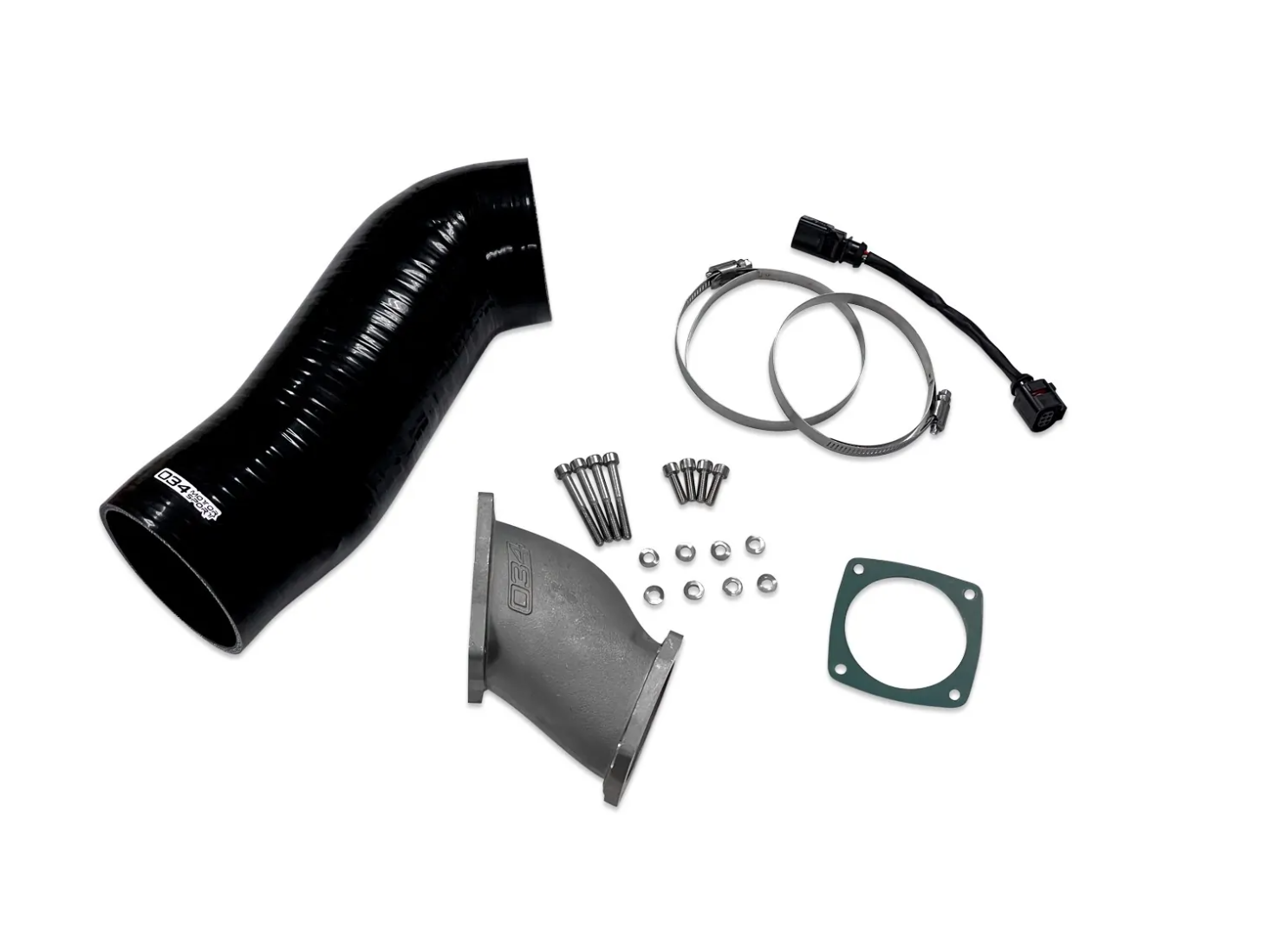

    SüperDüper Charger Throttle Body Adapter:

    • Throttle Body Adapter
    • Silicone Hose
    • Wiring Harness Adapter
    • Adapter to Supercharger Gasket
    • All Necessary Hardware

    SüperDüper Charger 84mm Throttle Body System:

    • 84mm VDO Throttle Body
    • Throttle Body Adapter
    • Silicone Hose
    • Wiring Harness Adapter
    • Adapter to Supercharger Gasket
    • All Necessary Hardware

    SüperDüper Adapter:

    • Throttle Body Adapter
    • Adapter to Supercharger Gasket

    Note: The upper plastic engine cover must be trimmed to be re-installed with the SüperDüper Throttle Body.



    EMISSIONS DISCLAIMER:

    • This product is sold for racing use as well as use on vehicles not registered for on highway use.
    • By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.

    NOTE: Product images shown may not be an exact representation of the actual product.

    Model   + Drivetrain
    8R Q5 3.0L SC V6
    8R SQ5 3.0L SC V6
    B8 S4 3.0L SC V6
    B8 S5 3.0L SC V6
