This is a Universal Fitting Product
Product Information

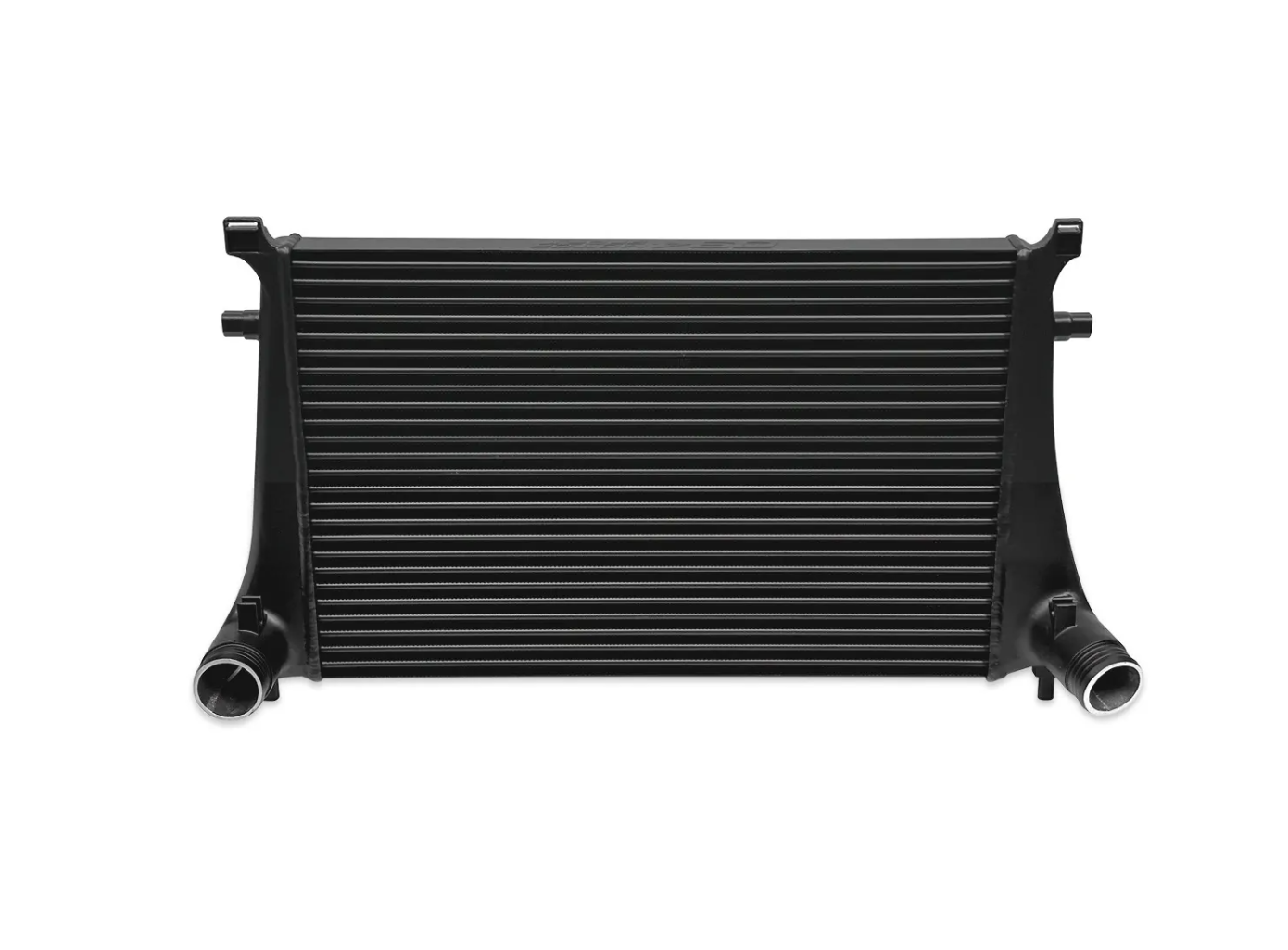

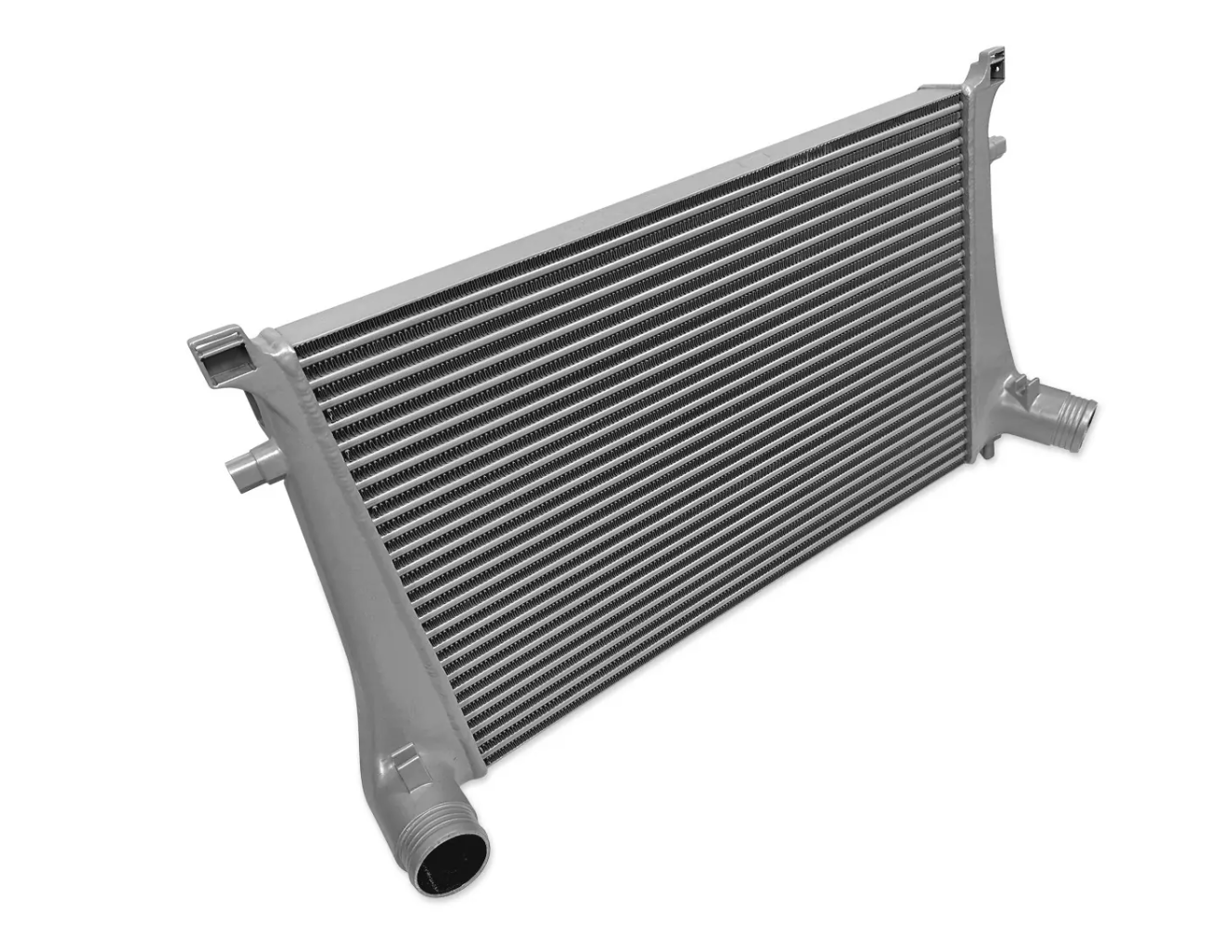

The 034Motorsport Intercooler System is designed to replace the factory, insufficiently sized intercooler in EA888 1.8T & 2.0T equipped MQB Volkswagens & Audis. The 034Motorsport Intercooler System was designed utilizing CAD and CFD software to optimize the high-speed core and cast end tanks to ensure excellent cooling properties and provide the engine with cooler, dense air for maximum performance potential.
PRESSURE DROP:
When it comes to intercoolers, bigger is not always better. Pressure drop is the difference in pressure between the inlet and outlet of the intercooler system. Larger volume intercooler systems typically have minimal pressure drop, take longer to pressurize due to the volume, and have much higher thermal capacity. With a lower volume intercooler, pressurization is fast, the pressure drop is higher, and the cooling capacity is also reduced.
034Motorsport optimized the pressure drop to create maximum flow but maintain high thermal efficiency, the result is higher boost pressure before and after the intercooler.
FLOW & EFFICIENCY:
The 034Motorsport Intercooler strikes the optimal balance between pressurization volume, thermal capacity, and pressure drop to offer one of the most efficient intercoolers on the market. The 034Motorsport Intercooler System utilizes a 24.6” x 16.25” x 2.0” core which is 63% larger than the GTI intercooler and 51% larger than the Golf R intercooler, resulting in cooler, denser air making its way into the engine regardless of outdoor temperatures. It could have been bigger, but then the time to pressurize the core would be longer which creates unnecessary lag.
NOTE: Trimming of the radiator support is required to fit this intercooler. A similar amount of trimming to the other aftermarket intercoolers on the market.
FEATURES
- 034Motorsport's Transverse 1.8 & 2.0 TSI Intercooler Utilizes a 24.6” x 16.25” x 2.0” Core, Providing a Larger Frontal Area and More Capacity Compared to the Factory Intercooler.
- 63% Increase in Volume Over Mk7 GTI
- 51% Increase in Volume Over Mk7 Golf R/8V S3
- Cast Aluminum End Tanks with a Tube and Fin Core Results in Excellent Performance While Maintaining a Lightweight Construction of Only 17.6 Pounds.
- Optimized Utilizing CAD Software and CFD, The High-Speed Core and Cast Aluminum End Tanks Give This Intercooler Excellent Cooling Properties.
- Flow Analysis and Simulations Were Created to Optimize the Design.
- Proven Performance Gains
- Lowers Intake temperatures, Without Sacrificing Much Airflow to the Radiator.
- Compatible With Replacement Upgraded Radiators
- Relatively Simple Installation
- Easy as Replacing the Factory Intercooler.
What's Included:
- 034 Motorsport Intercooler System
Model  +  |
Drivetrain  |
|---|---|
| 8S TT 2.0T I4 [MQB] | + |
| 8S TTS 2.0T I4 [MQB] | + |
| 8V A3 1.8T I4 [MQB] | + |
| 8V A3 2.0T I4 [MQB] | + |
| 8V S3 2.0T I4 [MQB] | + |
| 8Y A3 2.0T I4 [MQB Evo] | + |
| 8Y RS3 2.5T I5 [MQB Evo] | + |
| 8Y S3 2.0T I4 [MQB Evo] | + |
| MK7 Golf 1.8T I4 [MQB] | + |
| MK7 Golf Alltrack 1.8T I4 [MQB] | + |
| MK7 Golf Sportwagen 1.8T I4 [MQB] | + |
| MK7 GTI 2.0T I4 [MQB] | + |
| MK7 R 2.0T I4 [MQB] | + |
| MK8 GTI 2.0T I4 [MQB Evo] | + |
| MK8 R 2.0T I4 [MQB Evo] | + |
