034 Motorsport Dynamic+ Sway Bar Kit - BMW E9X


Free ShippingSave 10%
034 MotorsportSKU: 034-402-1022 DIY Difficulty: INTERMEDIATE


Select Sway Bar Options: NON-M MODELS - Front Sway Bar ONLY
Price:
$448.20 $498

Availability:
Direct Ship!

Buy Now & Pay over time with

Product Questions & Answers

Product Questions & Answers

Be the first to ask a question!

Ask a Question

Description

The 034Motorsport Dynamic+ Sway Bar Kit is available for BMW E9X Chassis. The 034Motorsport Dynamic+ Sway Bar Kit features perfectly-matched front and rear sway bars made from high-quality spring steel for maximum rigidity and durability.

Designed to reduce body roll, improve turn-in, reduce understeer and enhance steering feel, 034Motorsport's Dynamic+ Sway Bar Kit is the ideal upgrade for those in search of confidence-inspiring handling on the street and track.

Dynamic+ Sway Bars are available individually for those that are looking to upgrade in phases or match an existing customized suspension setup.

TRACK-PROVEN HANDLING PERFORMANCE:

The Dynamic+ Sway Bar Kit was thoroughly evaluated on the street and track before release to ensure they provided the most optimized handling experience possible.



SWAY BAR BENEFITS:

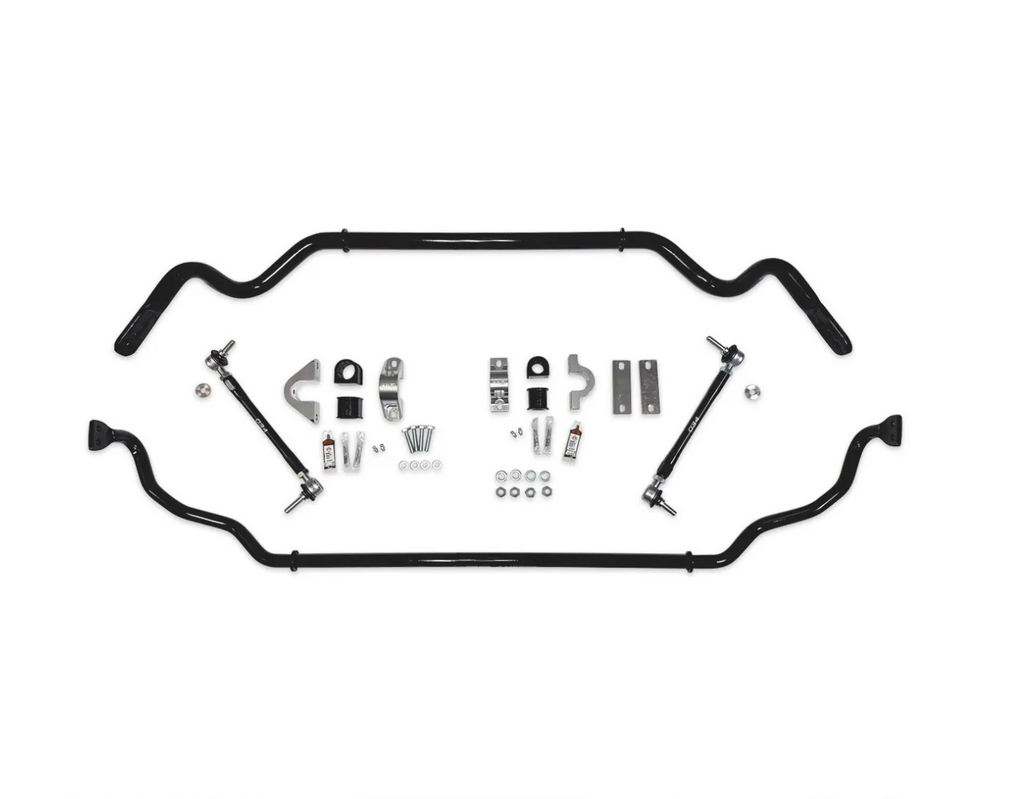

DYNAMIC+ SWAY BAR KIT:

The Dynamic+ Sway Bar Kit features perfectly-matched front and rear sway bars made from high-quality spring steel for maximum rigidity and durability. This kit contains perfectly-matched front and rear sway bars designed to reduce body roll, improve turn-in, reduce oversteer and enhance steering feel. 034Motorsport's Dynamic+ Sway Bar Kit is the ideal upgrade for those in search of confidence-inspiring handling on the street and track. By installing the Upgraded Front and Rear Sway Bars together, E9X BMWs will have the best balance of adjustability to dial in desired rotation and stiffness.

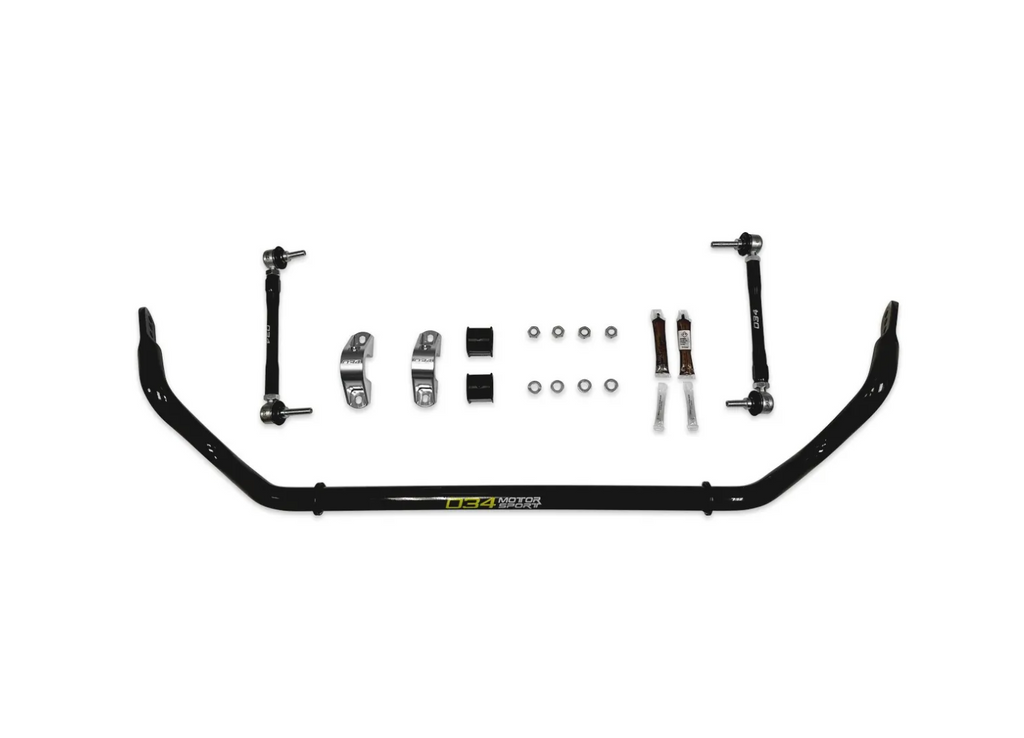

FRONT SWAY BAR:

The front sway bar upgrade on the E9X BMW will dramatically improve the steering directness and reduce body roll. With three points of adjustment, dialing in your handling has never been easier. When installing the 034Motorsport Front Sway Bar with the Factory Rear Sway Bar, the increased stiffness in the front suspension will create more understeer and reduce oversteer tendencies in E9X BMWs, making the car more predictable and safe at the limit.

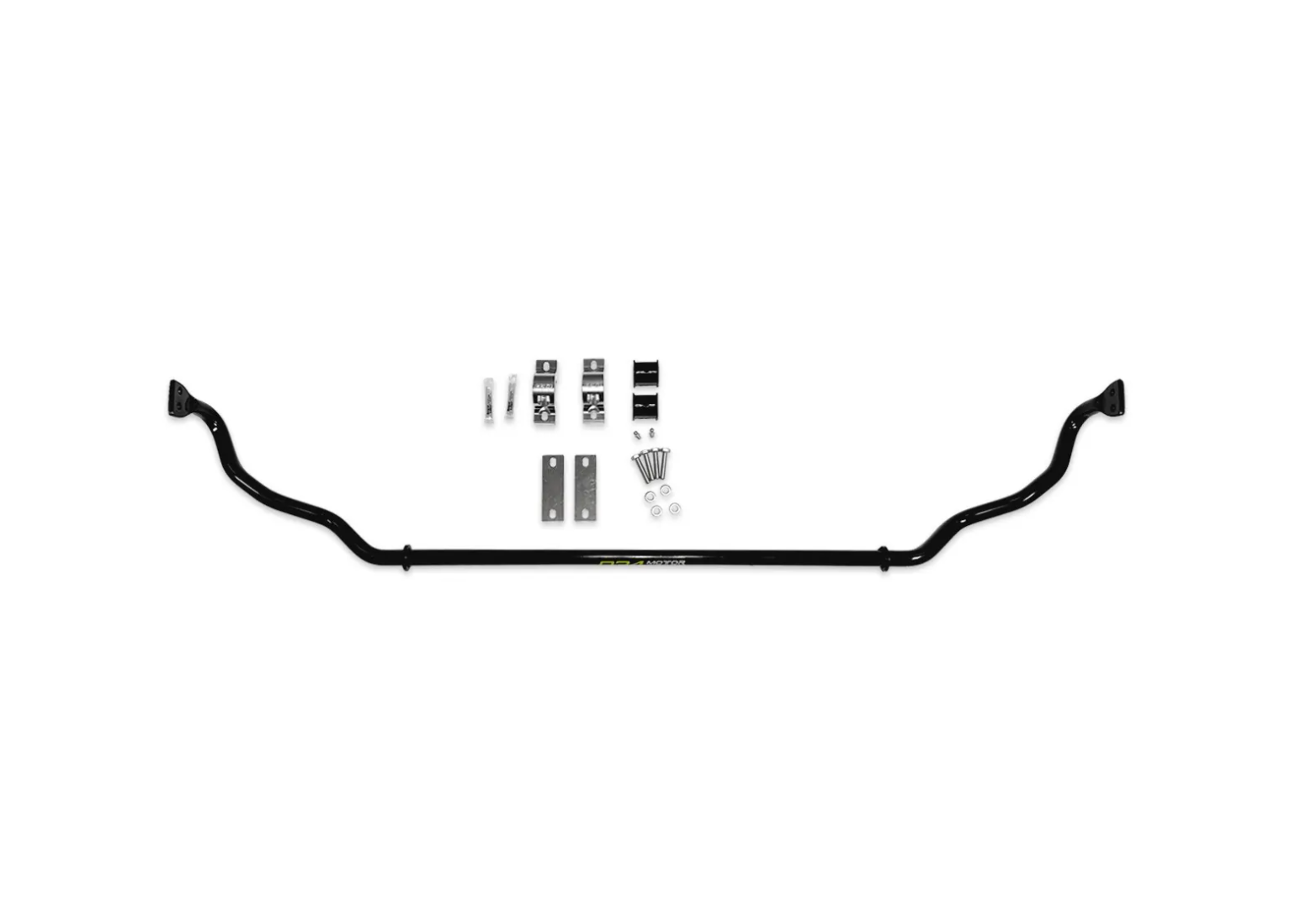

REAR SWAY BAR:

The rear sway bar upgrade on the E9X BMW is designed to reduce body roll & understeer, while improving turn-in, rotation, and oversteer during cornering. Installing the 034Motorsport Rear Sway Bar with the Factory Front Sway Bar will provide the driver with an oversteer bias setup and would be great for those looking to have more rear-end rotation and “loose” handling!

FITMENT NOTICE:

034Motorsport Dynamic+ Sway Bars are available in both M and Non-M Front Suspension Configurations. Some aftermarket coilover kits for Non-M E9X vehicles reposition the end link pick-up point to the same location as the M3, so please choose appropriately.

SWAY BAR FEATURES:

Front:

  • 2-Way Adjustable
    • Soft: 52% Increased Sway Bar Rate Over non-M
      • 36% Increased Sway Bar Rate Over M3
    • Stiff: 78% Increased Sway Bar Rate Over non-M
      • 59% Increased Sway Bar Rate Over M3
  • 30mm Diameter
  • Hollow Design with Thicker Walls Compared to Factory Bar
  • Black Powder Coating for Durability and Stealthy Appearance
  • Reduces Front Body Roll
  • Increases Front-End Agility
  • Improves Steering Directness

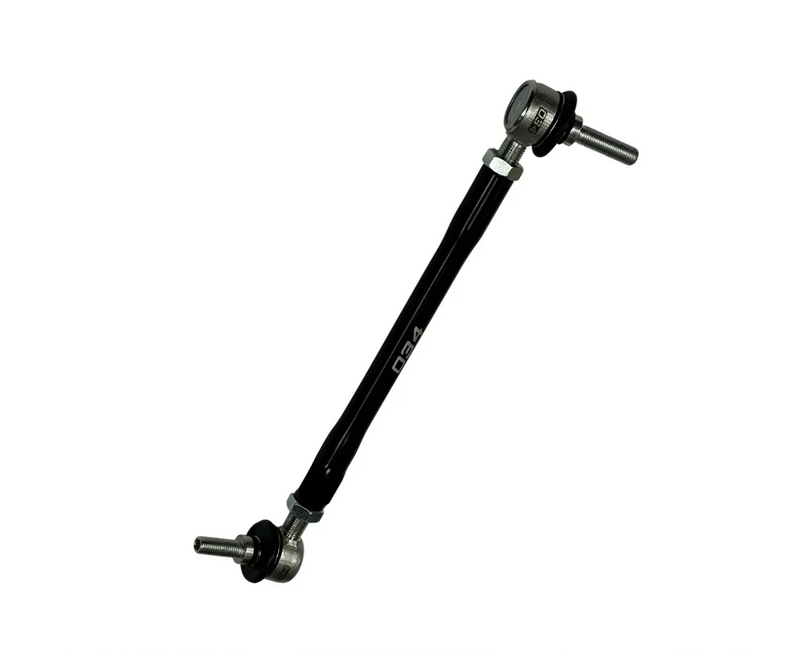

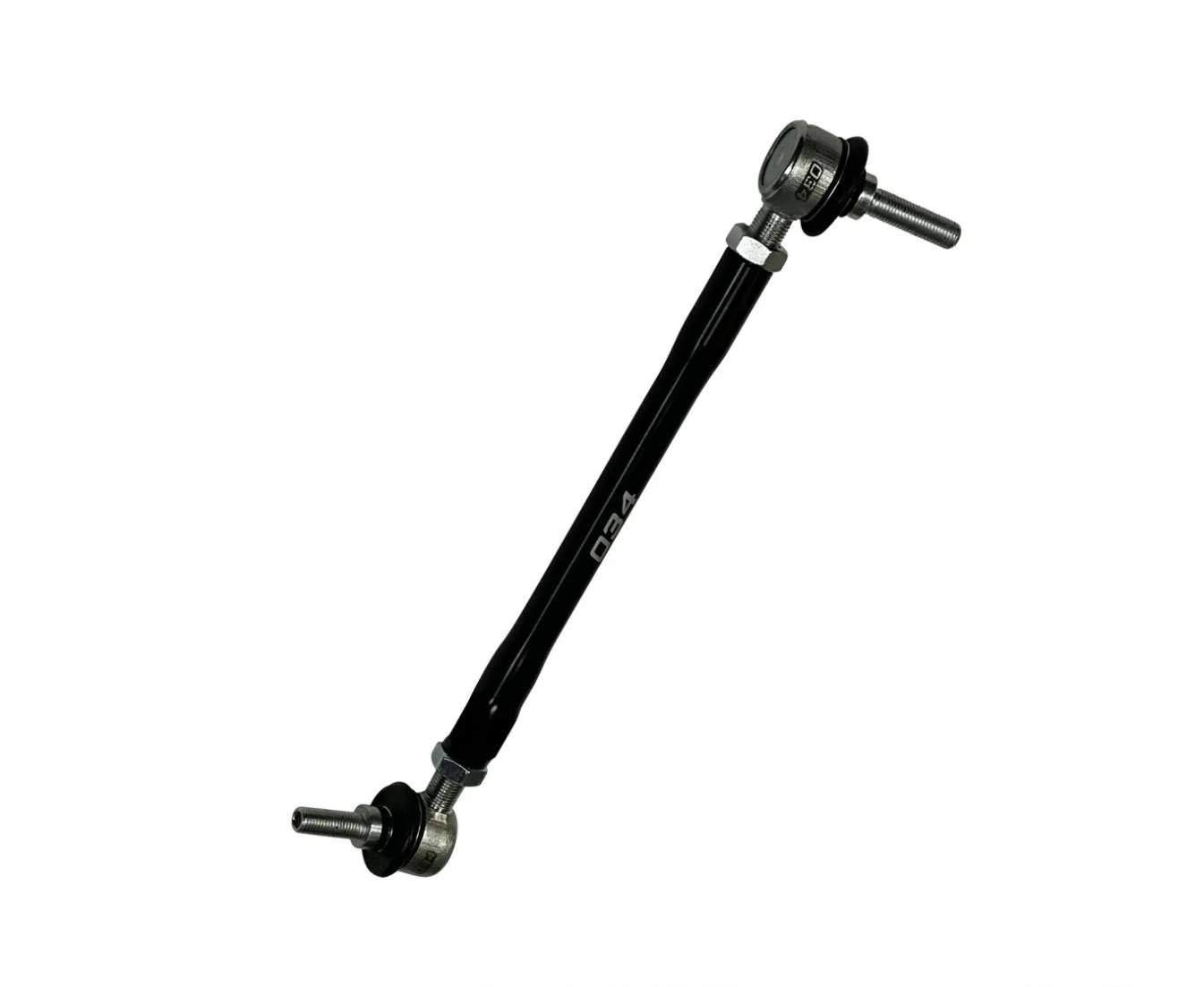

Front End Links:

  • OEM+ Quality with Adjustability
  • Quieter with Less Maintenance than Spherical Motorsport End Links
  • +/- 0.75" of Adjustability (1.5" Total Adjustment Range)
  • Adjust Sway Bar Preload - Essential When Corner Balancing Lowered Vehicles
  • Increased Strength for Stiffer Sway Bars, Heavier Loads and Aggressive Use
  • Improved Sway Bar Reaction Time & Accuracy

Rear:

  • 2-Way Adjustable
    • Soft: 21% Increased Sway Bar Rate Over M3
    • Stiff: 35% Increased Sway Bar Rate Over M3
  • 22mm Diameter
  • One-Piece Design with Solid Spring Steel Construction
  • Black Powder Coating for Durability and Stealthy Appearance
  • Reduces Rear Body Roll
  • Reduces Understeer
  • Improves Turn-In Rotation when Cornering

    What's Included:

    • Front Sway Bar, Rear Sway Bar, or both

    Vehicle Fitment

    Model   + Drivetrain
    E82 - E88 128i 3.0L I6 [N52]
    E82 - E88 135i 3.0T I6 [N54]
    E82 - E88 135i 3.0T I6 [N55]
    E82 - E88 1M 3.0T I6 [N54]
    E90 325i 2.5L I6 [N52] +
    E90 325i 3.0L I6 [N52] +
    E90 328i 3.0L I6 [N52] +
    E90 330i 3.0L I6 [N52] +
    E90 330i 3.0L I6 [N53] +
    E90 335i 3.0T I6 [N54] +
    E90 335i 3.0T I6 [N55] +
    E90 M3 4.0L V8 [S65] +
    E91 328i 3.0L I6 [N52] +
    E91 335i 3.0T I6 [N54] +
    E91 335i 3.0T I6 [N55] +
    E92 325i 2.5L I6 [N52] +
    E92 325i 3.0L I6 [N52] +
    E92 328i 3.0L I6 [N52] +
    E92 330i 3.0L I6 [N52] +
    E92 330i 3.0L I6 [N53] +
    E92 335i 3.0T I6 [N54] +
    E92 335i 3.0T I6 [N55] +
    E92 M3 4.0L V8 [S65] +
    E93 328i 3.0L I6 [N52] +
    E93 335i 3.0T I6 [N54] +
    E93 335i 3.0T I6 [N55] +
    E93 M3 4.0L V8 [S65] +
