This is a Universal Fitting Product

034Motorsport Billet Upper Dogbone Insert MQB

SKU: 034-509-1035

DIY Difficulty:

Sale price$41.00

In stock! Ships today!
Description Fitment Warranty Q&A (0) Reviews (4)

Product Information

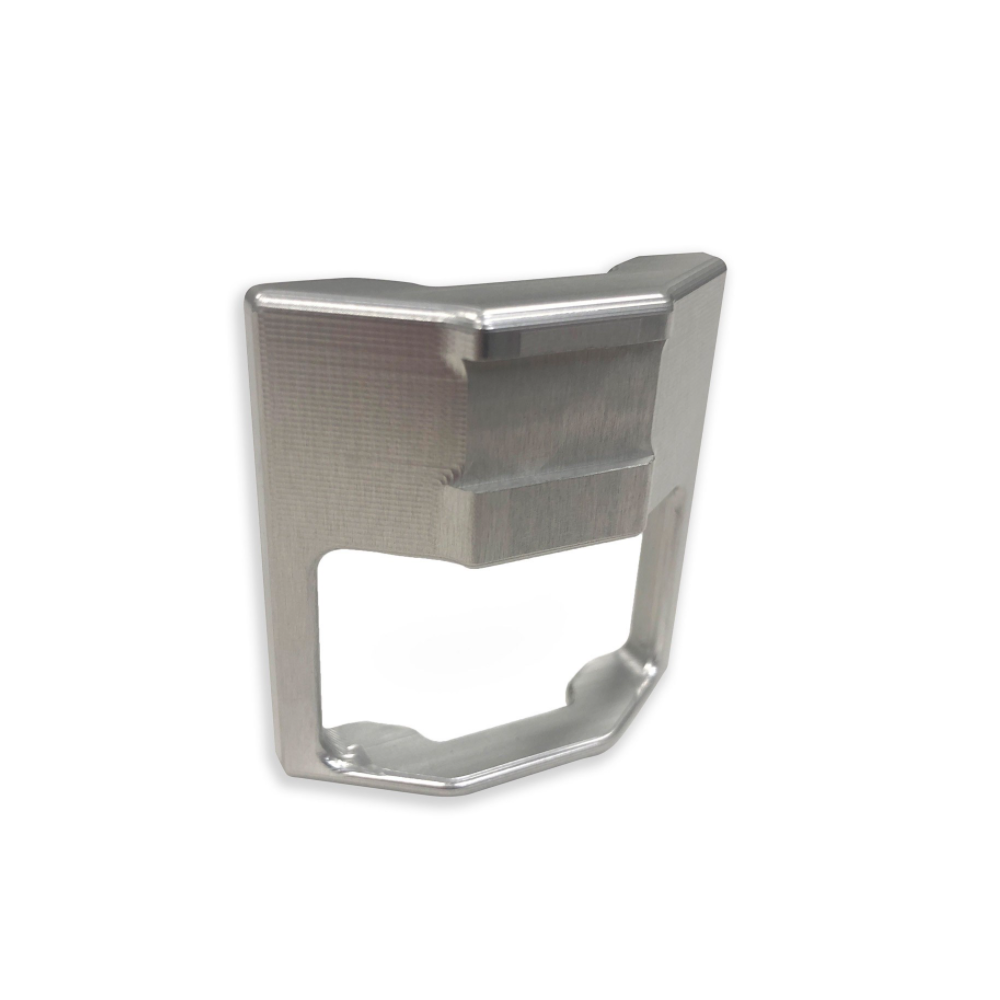

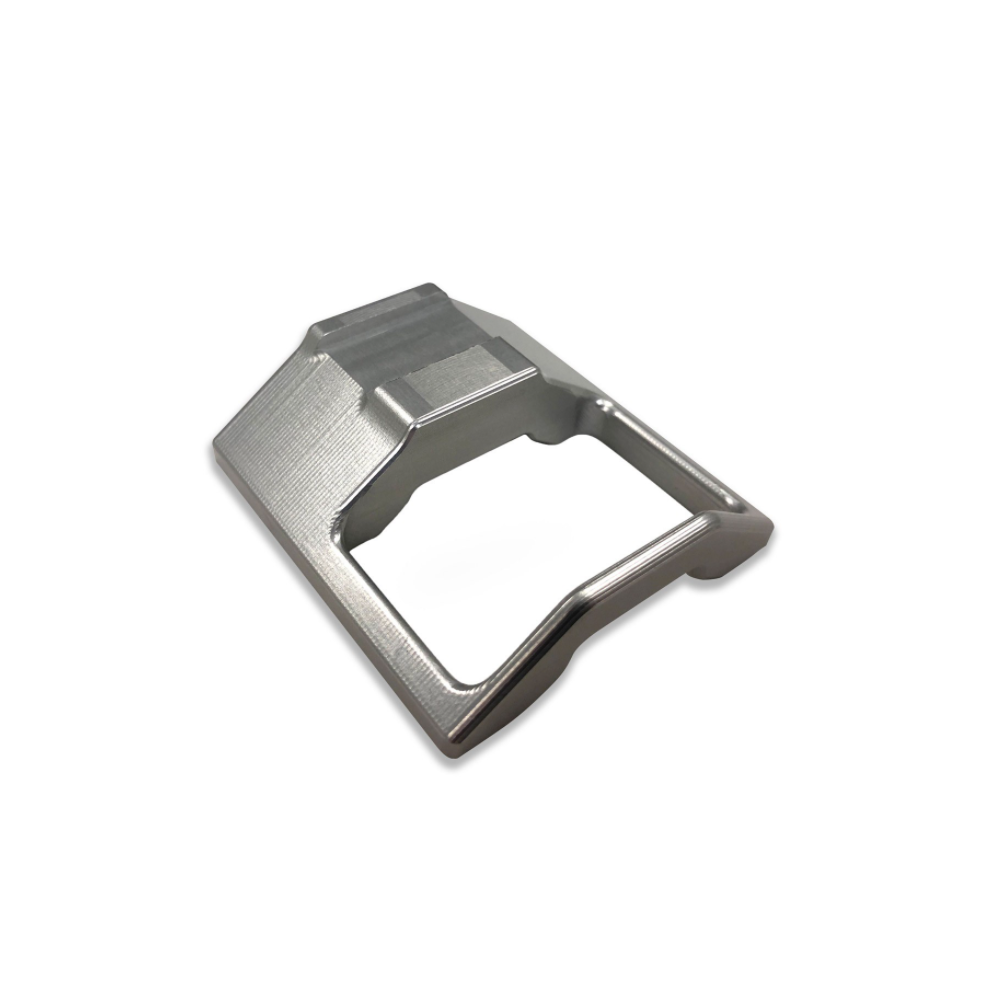

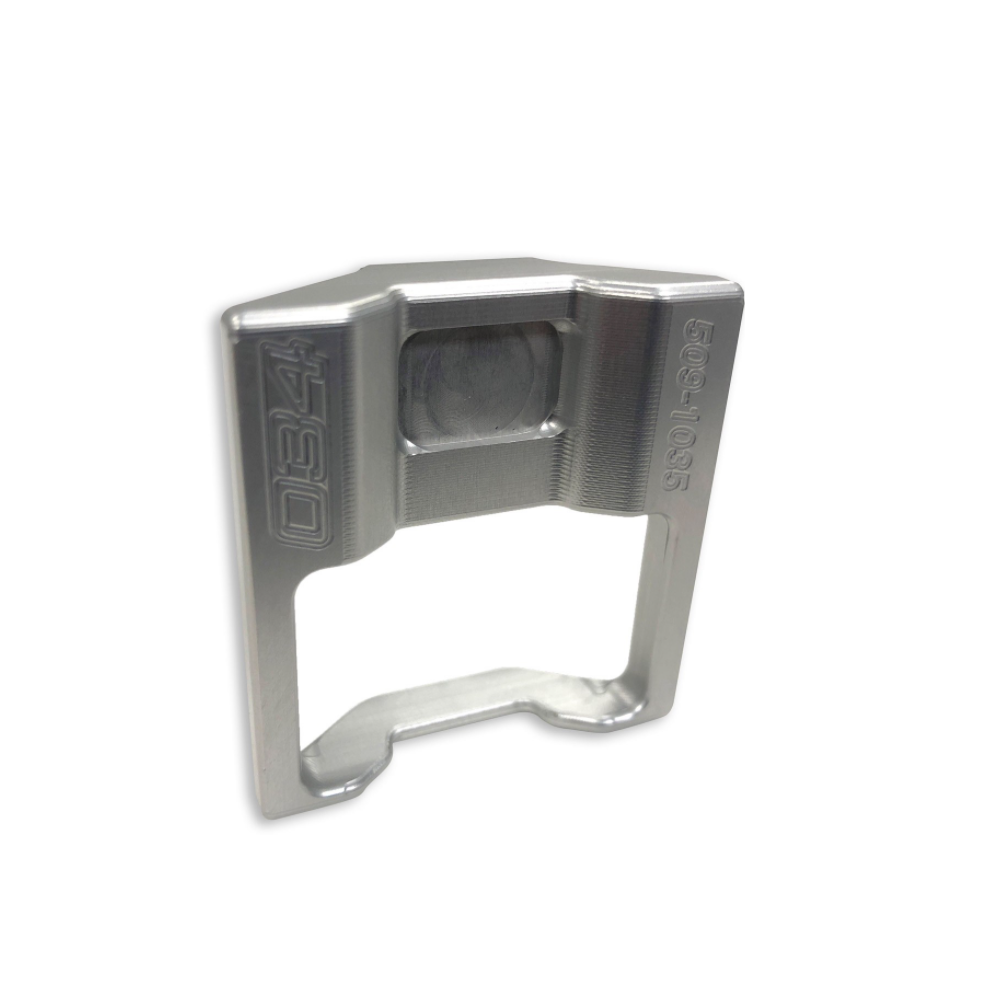

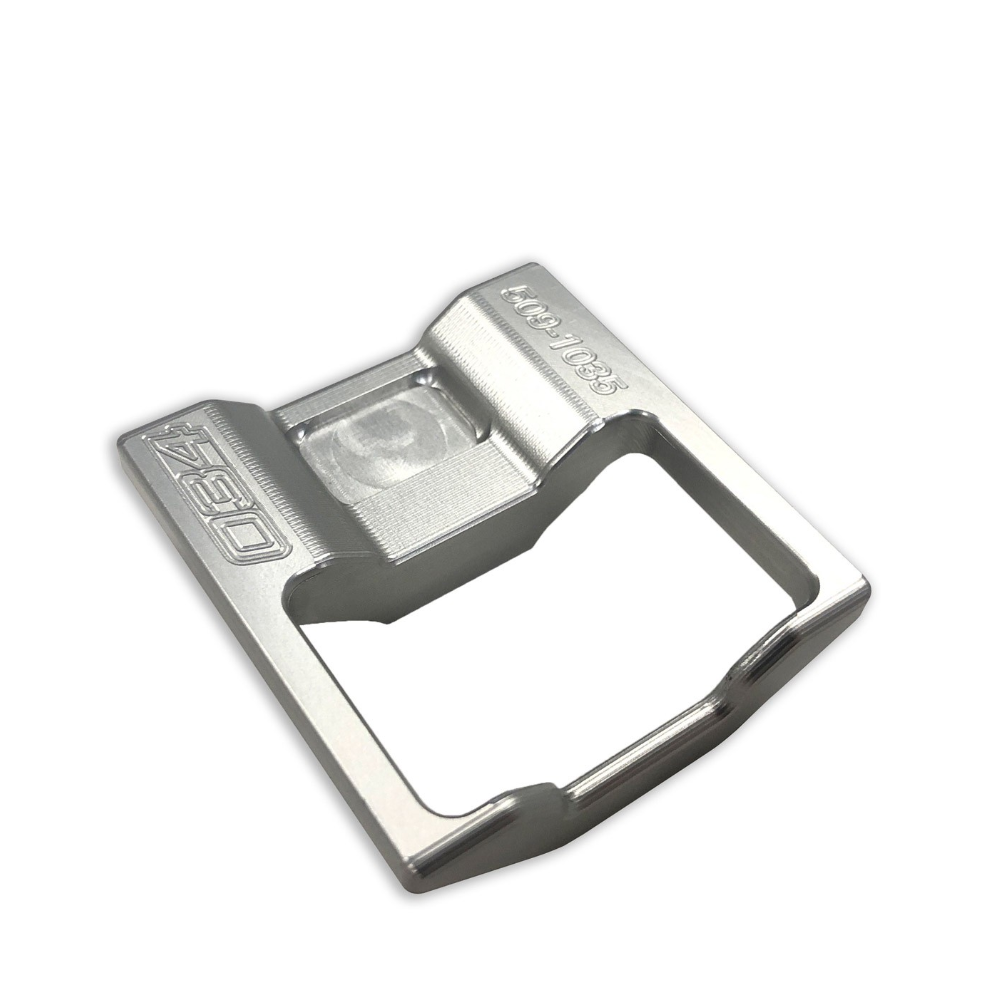

The 034 Motorsport MQB Upper Dogbone Mount Insert (patent pending) is required for any MQB platform vehicle using an aftermarket dogbone mount and dogbone mount insert.  Aggressive driving that causes violent drivetrain movement, such as burn-outs that induce wheel-hop, will cause the upper and lower dogbone mounts to exert a bending moment on the dogbone mount arm, causing it to bend, and in some cases fail.  When this failure occurs, the bottom of the engine is unconstrained and the engine will cause damage to other components in the engine bay.  The 034 Motorsport MQB Upper Dogbone Mount Insert eliminates these bending forces, allowing the dogbone mount to perform as designed during these violent events.

An aftermarket billet spherical dogbone mount combined with a dogbone mount insert dramatically improves the feel and responsiveness of the drivetrain during spirited driving.  However, this combination of modifications, coupled with the design constraints of the MQB dogbone mount pucks, have revealed a scenario that applies forces to the dogbone mount arm that it was not designed for.

The lower dogbone mount insert limits compliance of the lower dogbone mount puck by filling large voids in the puck.  During normal and spirited driving, this reduction in compliance results in more direct transitional response of the drivetrain to accelerative and decelerative forces.  The driver feels more direct throttle response through the drivetrain without introducing a significant amount of NVH.

Features:

  • Patent Pending design is unique to the MQB platform
  • Machined from billet 6061 aluminum
  • Clear anodized finish for protection from the elements
  • Eliminates rotation of the dogbone mount assembly
  • Prevents bending and breaking of dogbone mount assembly

What's Included:

  • 034 Motorsport Billet Upper Dogbone Insert
Model   + Drivetrain
8S TT 2.0T I4 [MQB] +
8S TT RS 2.5T I5 [MQB] +
8S TTS 2.0T I4 [MQB] +
8V A3 1.8T I4 [MQB] +
8V A3 2.0T I4 [MQB] +
8V RS3 2.5T I5 [MQB] +
8V S3 2.0T I4 [MQB] +
8Y RS3 2.5T I5 [MQB EVO] +
MK7 Golf 1.4T I4 [MQB] +
MK7 Golf 1.8T I4 [MQB] +
MK7 Golf 2.0L TDI I4 [MQB] +
MK7 Golf Alltrack 1.8T I4 [MQB] +
MK7 Golf Sportwagen 1.4T I4 [MQB] +
MK7 Golf Sportwagen 1.8T I4 [MQB] +
MK7 Golf Sportwagen 2.0L TDI I4 [MQB] +
MK7 GTI 2.0T I4 [MQB] +
MK7 R 2.0T I4 [MQB] +
MK8 GTI 2.0T I4 [MQB Evo] +
MK8 R 2.0T I4 [MQB Evo] +

***ORDER CANCELLATIONS***

All order cancellations are processed during regular business hours only. Any order cancellation requests made outside of business hours will be processed during the next business day.

Any cancelled orders including orders that have not shipped will be subject to a 3.5% cancellation fee to offset order processing fees that are not refunded to BMP Tuning. Additionally, if your order has already shipped, you may incur additional fees if the shipment needs to be recalled and/or rerouted back to BMP Tuning.

Some products sold cannot be cancelled after the order has been placed due to agreements with the manufacturer, or in the case of made to order/custom items. This will be noted in the product description.

Please note: Cancellations made after hours, on the weekend, or on a holiday may not be processed for cancellation prior to the order being processed and shipped.



***RETURNS AND EXCHANGES***

BMP Tuning will accept returns for UNUSED merchandise in original packaging within 1 YEAR from the time of purchase!
UNUSED products in ORIGINAL PACKAGING that are RETURNED WITHIN 60 DAYS of purchase are eligible for a refund to the original payment method used.
UNUSED products in ORIGINAL PACKAGING returned PAST THE 60 DAY MARK and within the 1 year return period are eligible for store credit only. After 60 days, non-stocked items will be accepted at the discretion of BMP Tuning.
UNUSED products MUST BE IN ORIGINAL PACKAGING, containing all accessories, labels, and documentation.

**CUSTOMERS ARE RESPONSIBLE FOR ORIGINAL AND RETURN*** ***SHIPPING EXPENSES**

The customer is responsible for the return shipping costs/fees – original shipping fees are NON-REFUNDABLE and items shipped with FREE shipping will still be subject to actual shipping charges being NON-REFUNDABLE. BMP Tuning is not responsible for damage to items being returned to us by the shipping carrier and will contact you so that you can file a claim if an item arrives damaged.
Any returned item is subject to a fee of up to 15%.
Restocking fees are WAIVED in the event of a customer receiving a damaged / incorrect product.

KATAPULT: Katapult does not allow us to issue refunds. Purchases made through Katapult that require a refund may be paid back to the customer via Zelle, PayPal, gift card, or other form that is agreed upon.

***THERE ARE ABSOLUTELY NO RETURNS ON ANY ITEMS MARKED AS "SCRATCH & DENT", "OPEN BOX", "USED", OR OTHER "SPECIAL ORDER" ITEMS***

***PLEASE CONTACT US BY EMAIL / PHONE / MESSAGE TO***
***INITIATE A RETURN!***

***APPLICATION/FITMENT ISSUES***

If you need to return an item that does not fit your vehicle and you feel that there is an error in our listing, please contact us immediately. If we find an error on our website or on behalf of a BMP Tuning Representative, we will provide a shipping label for your return and arrange proper shipment of the correct items.
ALL PRODUCTS MUST STILL BE NEW CONDITION IN THE ORIGINAL BOXES, INCLUDING LABELING, HARDWARE, AND DOCUMENTATION.
Customers are responsible for checking the product description for applications prior to ordering anything from our site to verify that the items you have selected are appropriate for your vehicle. Items ordered that are listed correctly on our website but ordered in error WILL REQUIRE SHIPPING TO BE PAID BY THE CUSTOMER.

***DAMAGED/MISSING ITEMS IN SHIPMENT***

If you receive a package that is missing items or was damaged during shipment, please contact BMP Tuning WITHIN 10 DAYS OF DELIVERY. Please check all items as they are delivered! Be sure to keep all packing material, boxes and photos of the damage as this will be necessary to complete the damage claim with the specific courier. UPS/FED EX Typically take 8-15 business days to complete their investigation, however, this time frame could be extended depending on circumstances.

***PRICING***

While we always try to provide the most accurate product and pricing information, we are humans and can make mistakes. If we listed an incorrect price or information for any product on our site, BMP Tuning reserves the right to refuse or cancel any orders placed.
PRICING AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Customer Reviews
4.8 Based on 6 Reviews
5 ★
83%
5
4 ★
17%
1
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
JB
10/21/2021
James B.

Best upper dogbone insert on the market!

Well just installed the upper insert along withbthe lower dogbone insert. Tightened everything right up. Slight amount of vibration but its to be expected. Well worth the money. Easy install cheap and for the money its a must have mod for your mk7 gli

R
01/20/2020
Ryan

Get it

I have the 034 lower dogbone, engine and transmission mounts. The upper dogbone really tied everything together. There is no slop in the drive train anymore. The NVH is barely noticeable now after driving a couple hundred miles. I am still surprised with the difference it made.

J
01/09/2020
Jason

Great upgrade

I installed the upper and lower insert together. Pretty simple job and only a slight increase in NVH. Make sure you purchase new bolts for the install since all three are one time use stretch bolts.

CG
04/28/2019
Corbin G.

Perfect addition to an already great product.

Install was easy, instructions online were simple and straight forward. Can definitely notice more in vehicle NVH but it's very livable. Makes a very noticeable difference on the street

M
11/28/2018
Mark

Added maybe 3% more NVH, almost nothing.

Top and bottom 034 inserts are now installed. I ran the lower for years and now thankfully 034 added the top. I always had that in the back of my mind, the problem that they resolved. I feel doing the lower and upper is a great solution for a daily driven car.
