This is a Universal Fitting Product

034Motorsport Dynamic+ Tuning ECU & AL552 ZF8 Transmission Tuning Bundle - Audi B9/B9.5 RS4/RS5 EA839 2.9TT

SKU: 034-103-2931

Select Tune: Stage 1 & 2
Include Dynamic+ Tuning Cable?: No Thanks
Select TCU Tune: Stage 1 AL552 TCU Tune
Sale price$950.00

Direct Ship!
Description Fitment Warranty Q&A (0) Reviews (0)

Product Information

The 034Motorsport Dynamic+ Stage 1, Stage 2, and Stage 3 Tuning Software for the Audi B9/B9.5 RS4 & RS5 equipped with the EA839 2.9TT V6 engine is designed to transform the driving experience of your vehicle! Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the ECU safely and effectively increase the power output of the twin-turbocharged V6 in a refined manner. The result is a significant improvement in acceleration and throttle response, without any sacrifice in driveability or reliability.

Why is AL552 ZF8 TCU Software necessary on the EA839 2.9TT?

As with any automatic transmission vehicle, the ECU and TCU computers work synchronously to properly apply torque to the vehicles drivetrain in a safe and reliable manner. Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much. If it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.

We are happy to provide our Stage 1 Dynamic+ TCU tuning at no additional cost ($150 value) to the customer in order to ensure that you are maximizing the performance and reliability of your 2.9TT equipped vehicle!

034SPI Mobile Flashing Phone App

All Dynamic+ tunes can now be flashed anywhere you please with the 034SPI (Smartphone Interface) Mobile Flashing application!

Designed for use on iOS and Android Devices as well as Apple Silicon-equipped laptops (M1, M2, M3), 034SPI allows you to easily flash your car, change fuel maps, configure live data displays, record and submit data logs to 034Motorsport's Tuning Support team, and utilize diagnostic support tools such as DTC/CEL code read/clear and more! Available now for use with any Dynamic+ ECU or TCU tune and the latest R4 Dynamic+ End User Flashing Dongle (May 2023 & Newer)! Download via the Apple App Store or Google Play Store Today!

Detailed Flashing Features:

  • Complete Any ECU Or TCU Tune Flash
  • Quickly Flash Different Fuel Octane Or Transmission Files
  • Flash ECU/TCU Using Mobile Device's Internet Connection
  • Enhanced Flashing Protocol Protections For Increased Flashing Stability
  • User-Configurable Live Data Displays
  • Multiple Data Display Views
  • Dozens Of Defined Variables Available
  • High-Speed Datalogging Of Pre-Defined Variables
  • Easy Upload Of Logs To 034Motorsport Server
  • Datalog Analysis Services Available Free Of Charge
  • Read & Clear DTCs On ECU & TCU
  • View Emissions Monitor Statuses
  • Perform Adaptations/Recalibrations*
    • *Available for limited platforms, coverage expanding regularly

Dynamic+ ECU Features:

Thermal Management Safety Strategies:

With increased power, comes increased heat. With increased heat, comes the need for additional management. For both charge air temperature and engine coolant temperature, 034Motorsport has implemented key safety features to keep your engine running optimally and safely in virtually any condition - just like the OEM calibration. Substantial effort was spent on balancing the trade off of charge temp for power, and improving the compressor efficiency so that it doesn't generate too much charge temp.

Charge Air Temp:When the charge temp exceeds 60*C there is a reduction in power output. When the charge temp exceeds 65*C there is a more significant reduction in power output. This charge temp limitation is there to prevent knock events from excessive charge temps, which can severely damage a motor. With these safety measures in place, you can confidently drive your car, from the top of Pikes Peak to Death Valley, knowing the factory ECU has optimal performance and safety covered.

Coolant Temp/Fan Strategy:From the factory, Audi likes to run hotter water temps to reduce fluid friction losses from cooler, more viscous oil. While better for efficiency, this strategy becomes a safety issue when loads and heat are increased. 034Motorsport calibrators have rescaled the coolant temperature targets and fan control strategies to target lower coolant temperatures when in higher heat conditions, allowing the car to run within a safe heat range rescaled for the added heat that comes from tuning the engine. Once again, this means that 034Motorsport calibrators have kept your confidence in safety fully intact from the OEM configuration.

Turbocharger Intercooler Pump Optimizations:The coolant pump that circulates water in the turbocharger intercooler system is now optimized to reduce Intake Air Temperatures faster and at a lower overall set point.

Launch Control Optimizations:

From the factory, conventional launch control strategies are not activated in the ECU. 034Motorsport’s skilled Calibration team has properly engineered and implemented true launch control functionality to the EA839 and AL552 ZF8. 034Motorsport engineers have refined and optimized the requested launch torque to ensure repeatable and consistent launches, capable of reducing 0-60 times by up to half a second depending on road conditions and tire grip. Unlike the factory ECU that tries to “push through the brakes” on a standing brake launch, the 034Motorsport Dynamic+ calibration will allow proper loading of the engine without pushing through the brakes as hard, and properly targets a specified RPM to launch at.

Fuel System Optimization:

While E85 provides substantial increases in power, it requires about 30% more fuel than standard pump gasoline per ignition cycle. Utilizing a variety of fuel stratified injection strategies, 034Motorsport calibrators have further optimized the factory fueling system to be able to adequately support full E85 on factory hardware for Stage 1 tunes.

The main limiting factory in the 2.9TT fuel system is the factory high pressure fuel pump. 034Motorsport calibrators have optimized Stage 1+ files to add additional power while running E85 with the installation of an upgraded high pressure fuel pump.

In order to properly run 034Motorsport Stage 1+/2+ or Stage 3 files, you must be using an upgraded HPFP that has a 37% larger diameter piston over stock such as the 034Motorsport High Pressure Fuel Pump Piston Upgrade Kit.

Accurate Boost and Torque Reporting:

As with anything in life, it is always best to be truthful. This especially applies when it comes to reporting torque outputs in the ECU to the other control modules in the car, as well as displaying accurate boost readings to the driver via the boost gauge found on the Virtual Cockpit. With 034Motorsport Dynamic+ software, the ECU is reporting accurate torque values to critical systems like the TCU to ensure that all safety systems are intact in both control units, and the added torque from tuning is properly adjusted for when driving/shifting, including all safety systems designed to protect the engine and transmission

Enhanced Crackles in Dynamic Mode

Crackles are further enhanced in Dynamic mode! They can be toggled on or off via Drive Select. They will be on in Dynamic and off in Comfort. In Individual, crackles can be toggled on or off via Engine Sound. *No-Crackle Files Available Upon Request. Please EmailTuning@034Motorsport.comfor More Information*

Valved-Exhaust Delete Compatibility

This ECU tune allows for full performance when using aftermarket exhausts without exhaust flaps, or OEM exhaust with valves unplugged. Without this feature, running your car with the exhaust flap controller unplugged/with cancellers installed would result in derated performance.

Volumetric Efficiencies and How to Optimize for Them:

Volumetric efficiency (VE) is how well a motor can move air/fuel in and out of it’s combustion chamber, the higher the efficiency, the more of the air/fuel can be converted to torque and power. Every engine has a volumetric efficiency that varies with RPM. For this reason, every internal combustion engine has torque that varies with RPM; some motors, thanks to advanced features like variable valve and camshaft timing, can create exceptionally flat torque curves across a broad range of RPM simply due to optimizing VE using these advanced control features. Despite this ability, every modern engine, especially with forced induction, will have torque values that vary across the RPM band. In the case of the 2.9TT EA839, there is a dip in VE at 3000 RPM, or said a different way, VE is very efficient from 2-2500 RPM, and continues to be very efficient by 3500 RPM, but drops to a slightly lower level at 2700-3000 RPM. For reference, all of our dyno charts show a dip in TQ around 2700-3000 RPM for this very reason. It is important to note that this isn’t a problem with the tuning, and we could have very easily smoothed out the torque curve in our charts to minimize this, but we chose to leave it for the sake of accuracy and transparency.

The normal VE drop at 3000 is substantial, and more than what our final power numbers suggest, but instead of smoothing the curve to hide this, we chose to tackle it head on using our tuning expertise and technical mastery calibrating these ECU’s. A way to combat the VE drop is to increase boost through this region, but instead of simply turning up the boost using the boost control strategy, we re-engineered the ECU’s torque request function to target a higher TQ through this region. The result is more power and torque using the ECU’s factory control strategy, which keeps all factory ECU functionality and safety features in place. Ultimately we are able to make the dip less than the natural VE by raising boost a safe amount, but boost cannot make up all the difference. What we have done is optimized in performance, safety and functionality - just as if the factory had done it.

Keen observers will note that this dip is present in other company’s advertised charts too, but greatly smoothed over and reduced visually, so buyers should be aware. This dip is in the VE of the motor, it’s normal for all engines, and there is no reason to hide it or be anything less than transparent and honest about this motor’s performance.

PERFORMANCE TCU STAGE 2 AND STAGE 3 SOFTWARE FEATURES:

Improved Torque Management

As with any automatic transmission vehicle, the ECU and TCU computers work synchronously to properly apply torque to the vehicle's drivetrain in a safe and reliable manner. Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much. If it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.

034Motorsport takes a holistic approach with its Dynamic+ Tuning, and aims to retain as many OEM safety protocols as possible. While it is possible to tune around the factory TCU torque limiters from the ECU side, this is done at the expense of torque safety features that are integral in keeping your transmission running safely. 034Motorsport’s calibrators tune the ECU to work with the TCU to provide accurate torque values, and recalibrate the appropriate safety ranges for the TCU. Taking these extra steps to retain OEM safety systems on the ECU and TCU side is just one of the many reasons that Dynamic+ software provides substantial yet reliable performance increases.

Optimized Shift Points

In order to take advantage of the increased powerband from the turbochargers, Dynamic+ Tuning optimizes the shift points in all driving modes to maximize acceleration during wide open throttle scenarios.

Improved Shift Speeds

To further enhance the acceleration of your Audi, the ZF8 shift times are dramatically decreased in all driving modes, which ultimately results in quicker acceleration. Shift times are now up to 70% faster!

Shift pressures are also increased in Sport Mode to maximize performance. In Sport Mode, you will notice less lazy shifts, more firm shifts, which ultimately results in quicker acceleration.

AMAX Shifting

AMAX Shifting is a shifting strategy that stands for “Acceleration Maximum.” These gear shifts are the fastest and quickest possible for optimal acceleration . These are activated in shifting after launching your vehicle from a stop using launch control.

AMAX is now activated in the 4-5, 5-6, and 6-7 shifts where it was previously disabled from the factory.

When in AMAX mode, line pressures in the transmission have been optimized to safely increase shift speeds.

Increased Launch Stall RPM

The launch stall RPM has been raised for a significant increase in force, allowing you to get off the line as fast as possible.

Delay Time Between Launches Reduced

The delay time between launch control activations has been shortened. This is useful when drag racing to heat up tires using launch control, and re-activate quickly before launching down the drag strip!

034Motorsport B9/B9.5 Audi RS4 & RS5 EA839 2.9TT ECU Stage Descriptions:

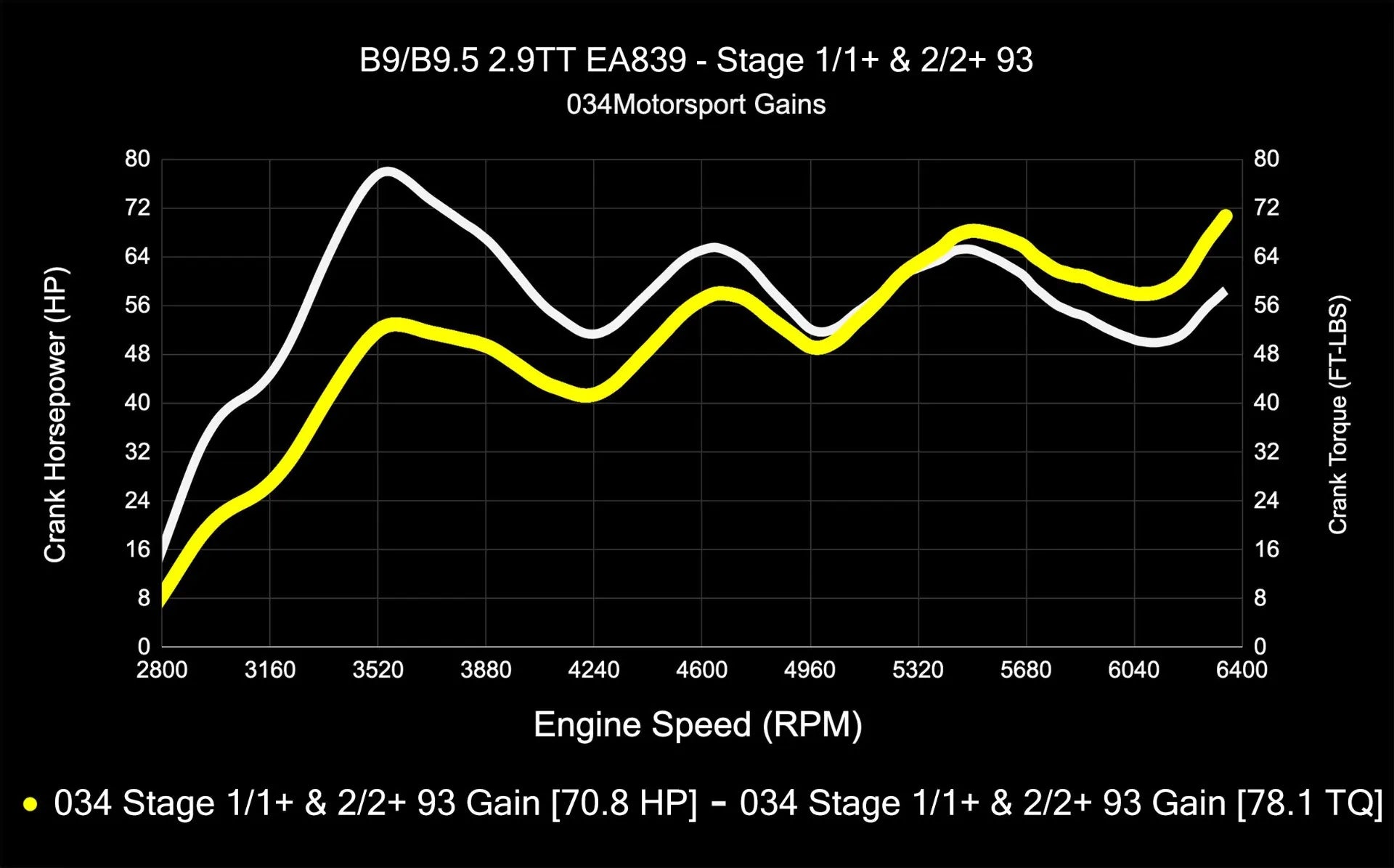

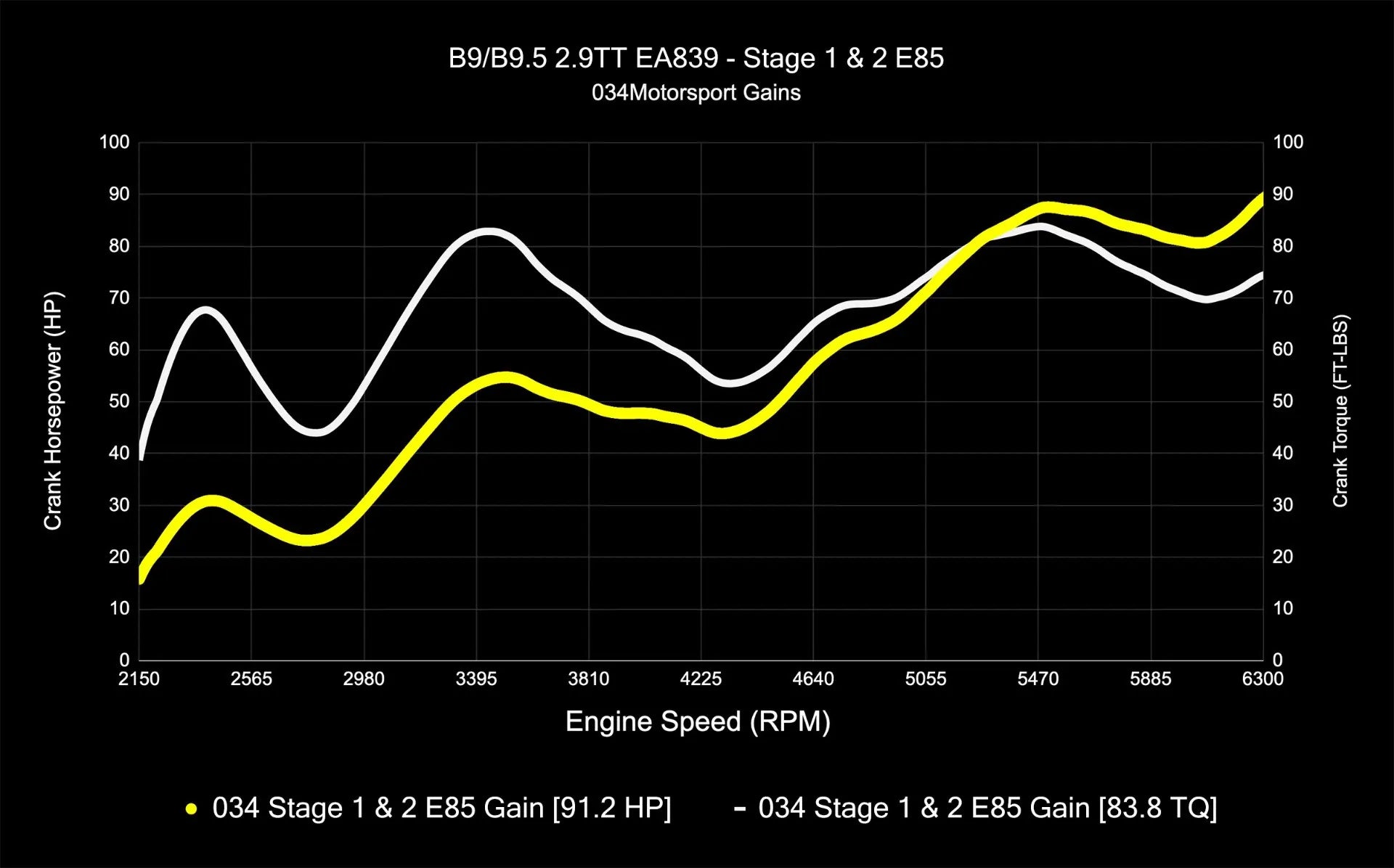

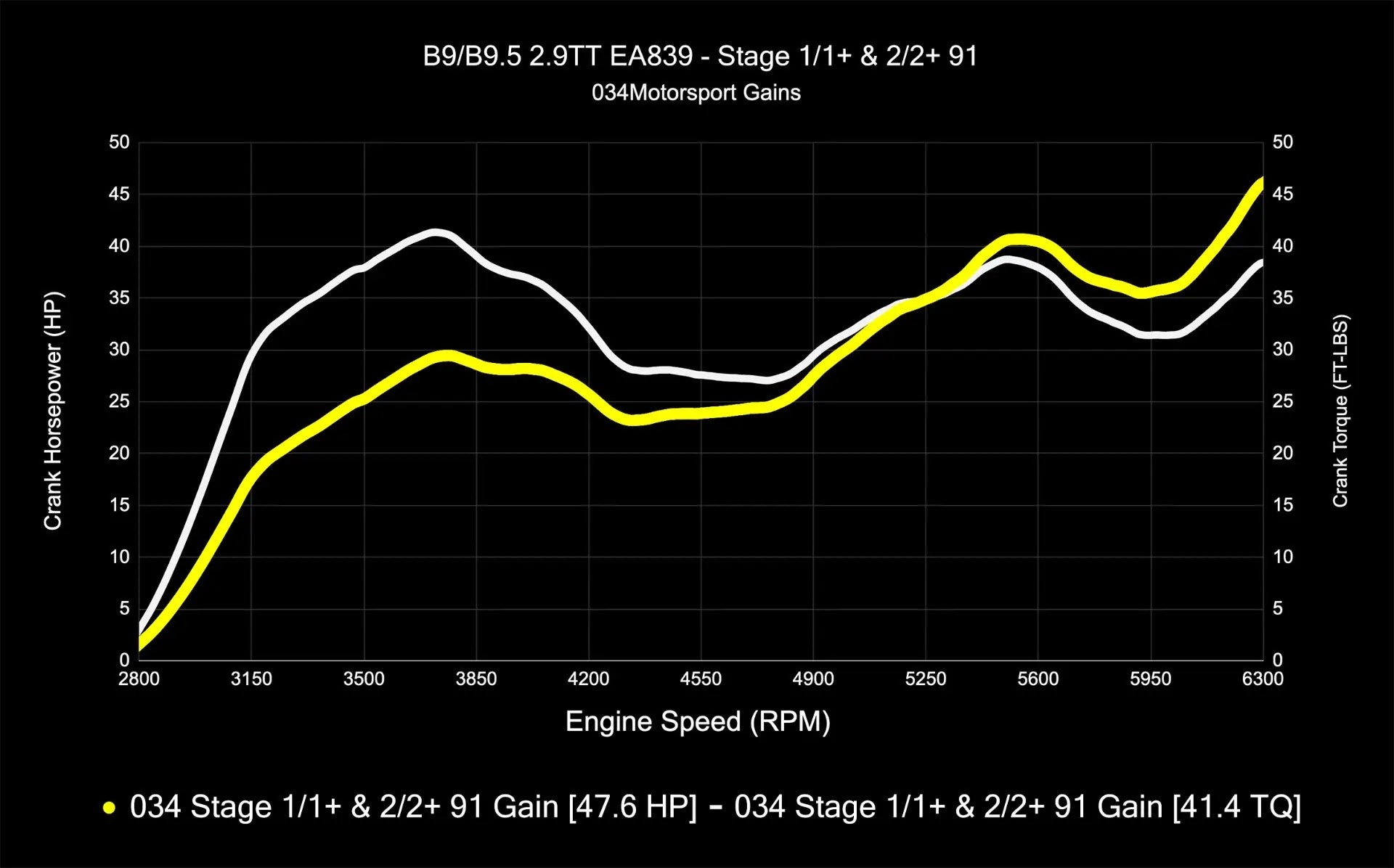

Stage 1

(Included with Purchase of 034Motorsport 2.9TT EA839 ECU Tuning)

034Motorsport Stage 1 Performance Software for the EA839 2.9TT engine running pump gas or ethanol is engineered to safely increase the horsepower and torque with no hardware required. Due to the significant addition of torque from just Stage 1, the 034Motorsport AL552 ZF8 TCU tune is required to be run in parallel with our ECU tuning.

In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.

034Motorsport EA839 2.9TT Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 1 is available in 91 Octane, 93 Octane, and E85. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER.

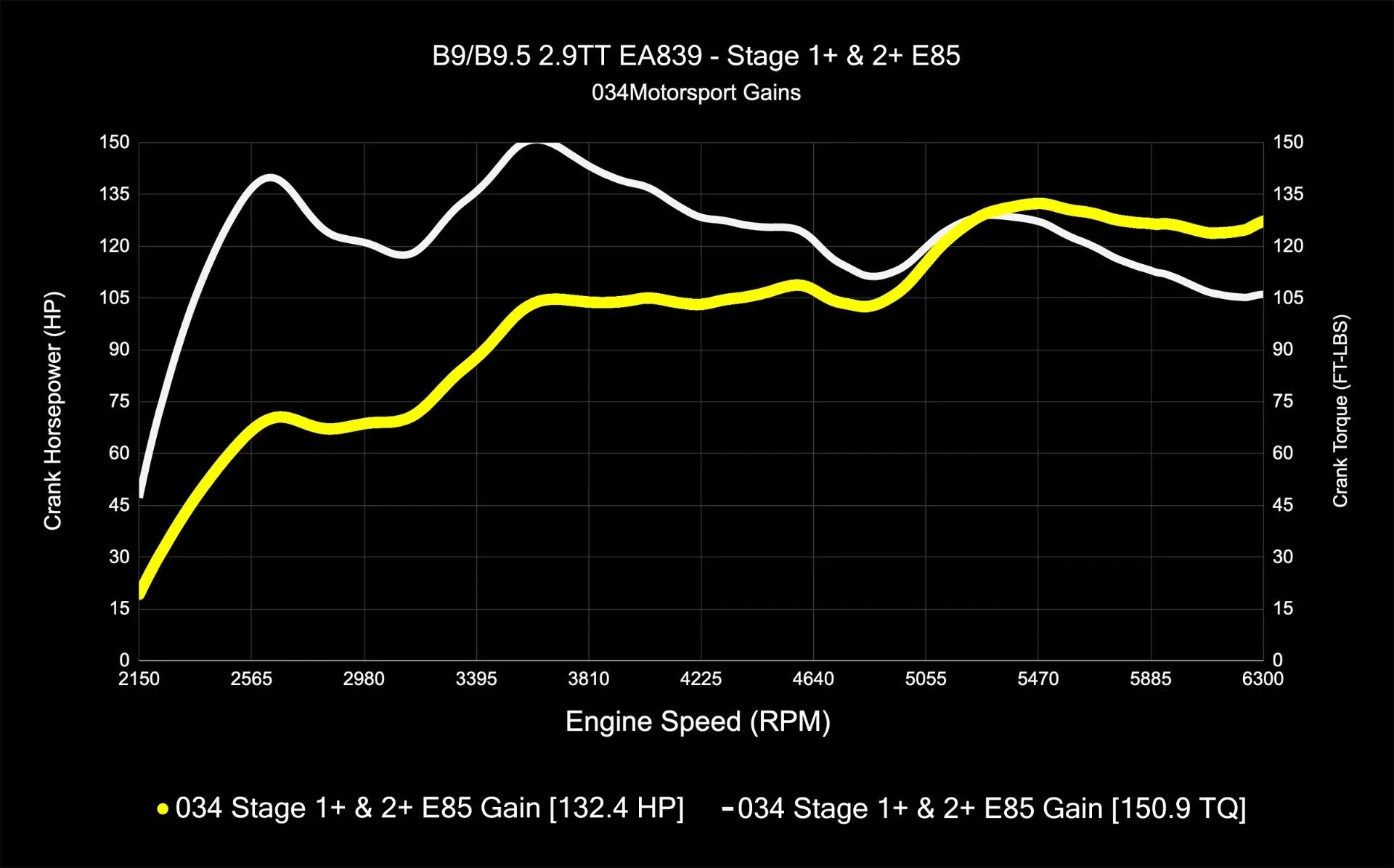

Stage 1+

034Motorsport Stage 1+ Performance Software for the EA839 2.9TT engine running pump gas or ethanol is engineered to safely increase the horsepower and torque with the addition of an upgraded high pressure fuel pump and no additional hardware. Due to the significant addition of torque from just Stage 1+, the 034Motorsport AL552 ZF8 TCU tune is required to be run in parallel with our ECU tuning.

Stage 1+ Performance Software for the EA839 2.9TT increases performance over Stage 1 running E85. If you are traveling somewhere without E85, 034Motorsport also offers 91 & 93 octane files to be used with an upgraded HPFP. This allows you to travel cross country without worry of having to plan for E85 stations or carrying gas jugs. Stage 1+ files do not increase performance figures on pump gas over the factory HPFP.

In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.

034Motorsport EA839 2.9TT Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 1 is available in 91 Octane, 93 Octane, and E85. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER.

Stage 2

Throughout our rigorous software development process, we tested to see if the conventional Stage 2 hardware configuration of High-Flow Downpipes on Stock Turbos allowed for higher performance over Stage 1/1+. We found that regardless of fuel used, the OEM Downpipes provided sufficient airflow, and that no additional power was able to be gained by installing a more free-flowing exhaust system.

Due to the lack of performance gains, we initially opted not to provide a tune offering to accommodate this hardware configuration. Due to the increased volume of requests, 034Motorsport now offers Stage 2 and Stage 2+ ECU files that accomodate the use of high-flow catted and catless downpipes. These files will not provide any additional performance over Stage 1/1+, but will allow you to run these parts without visible error codes. These files are for Sanctioned Racing Use Only, and will not allow you to pass emissions testing.

Stage 2/2+ files are now included with the purchase of Stage 1/1+ free of charge. 034Motorsport EA839 2.9TT Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 2/2+ are available in 91 Octane, 93 Octane, and E85 Pump files. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER.

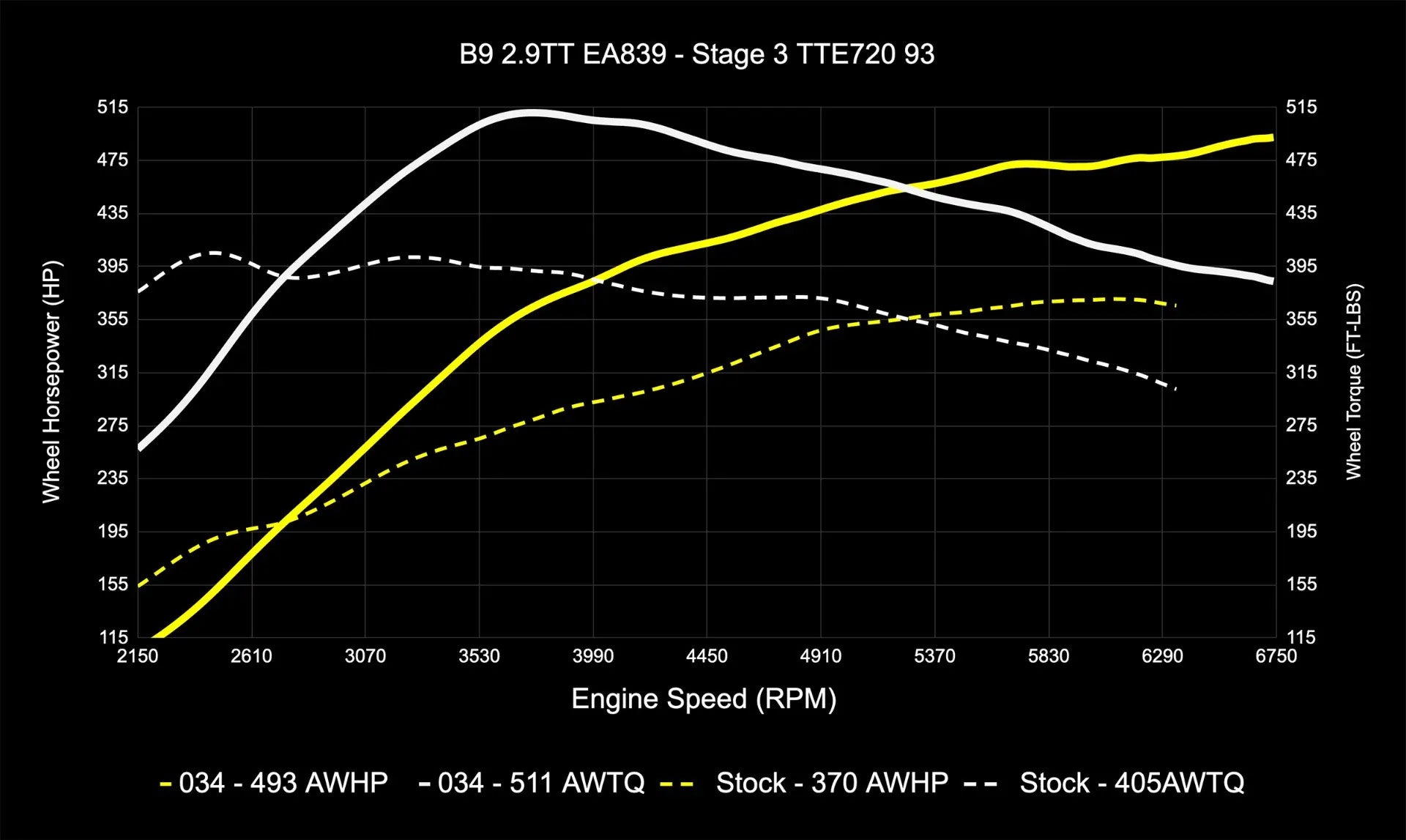

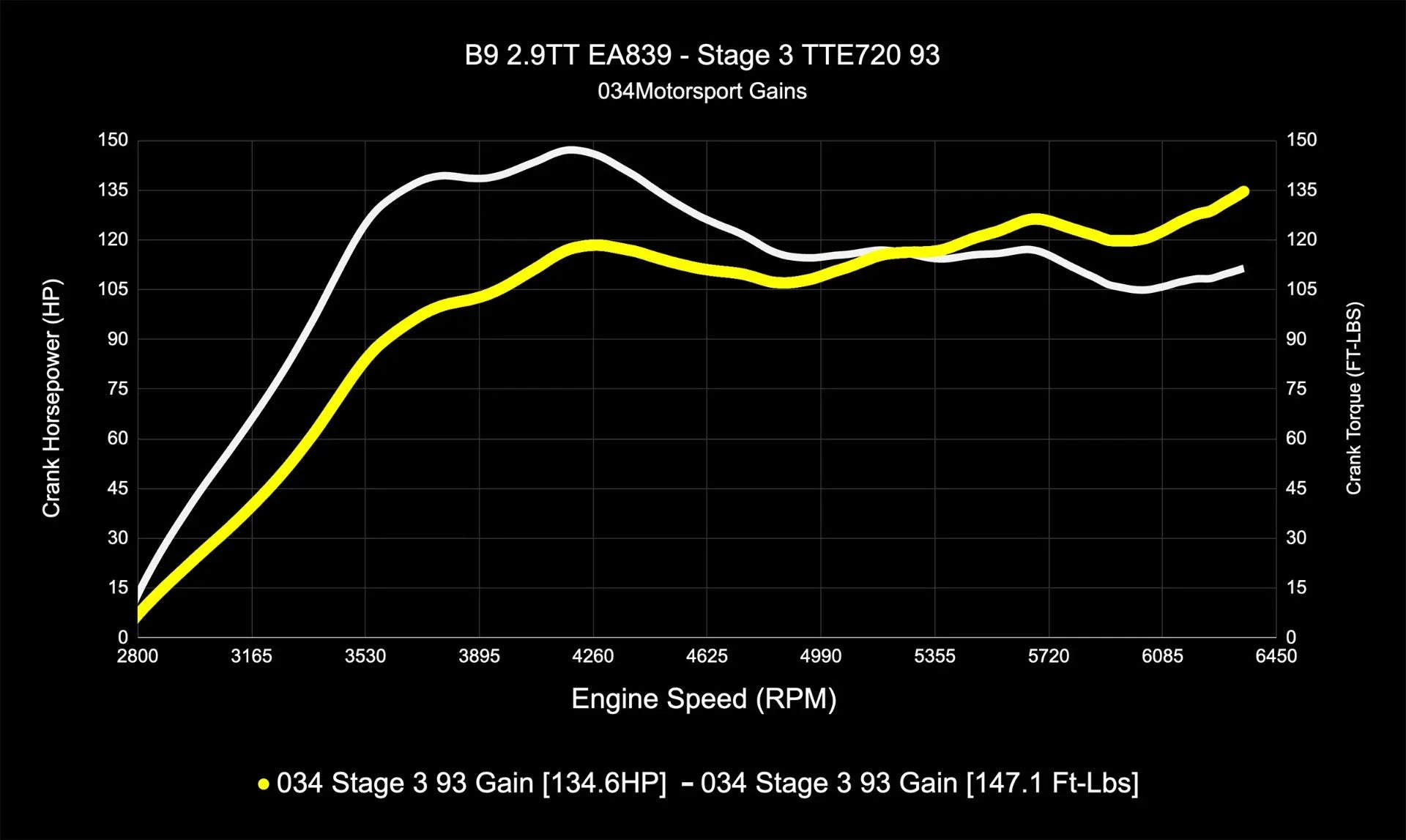

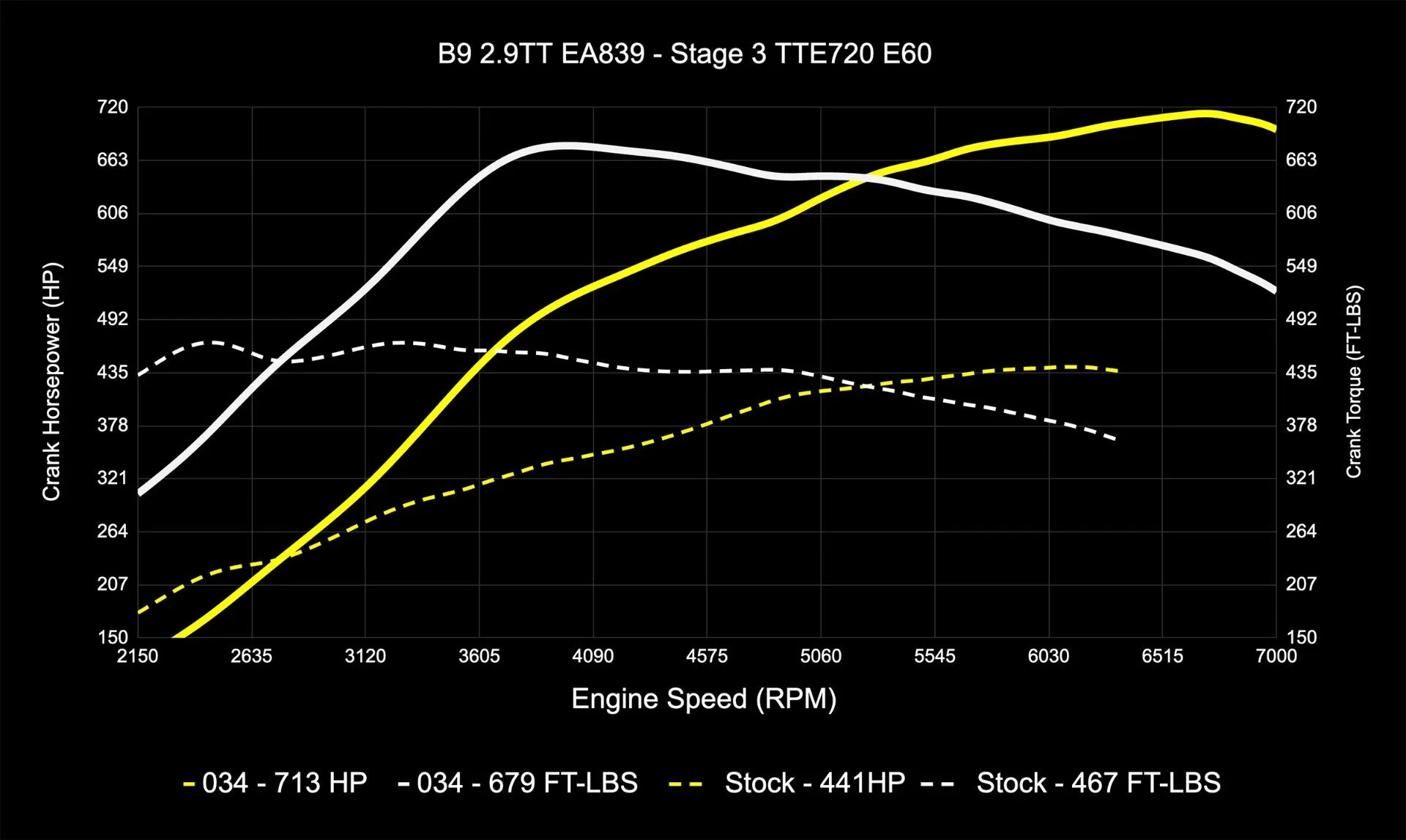

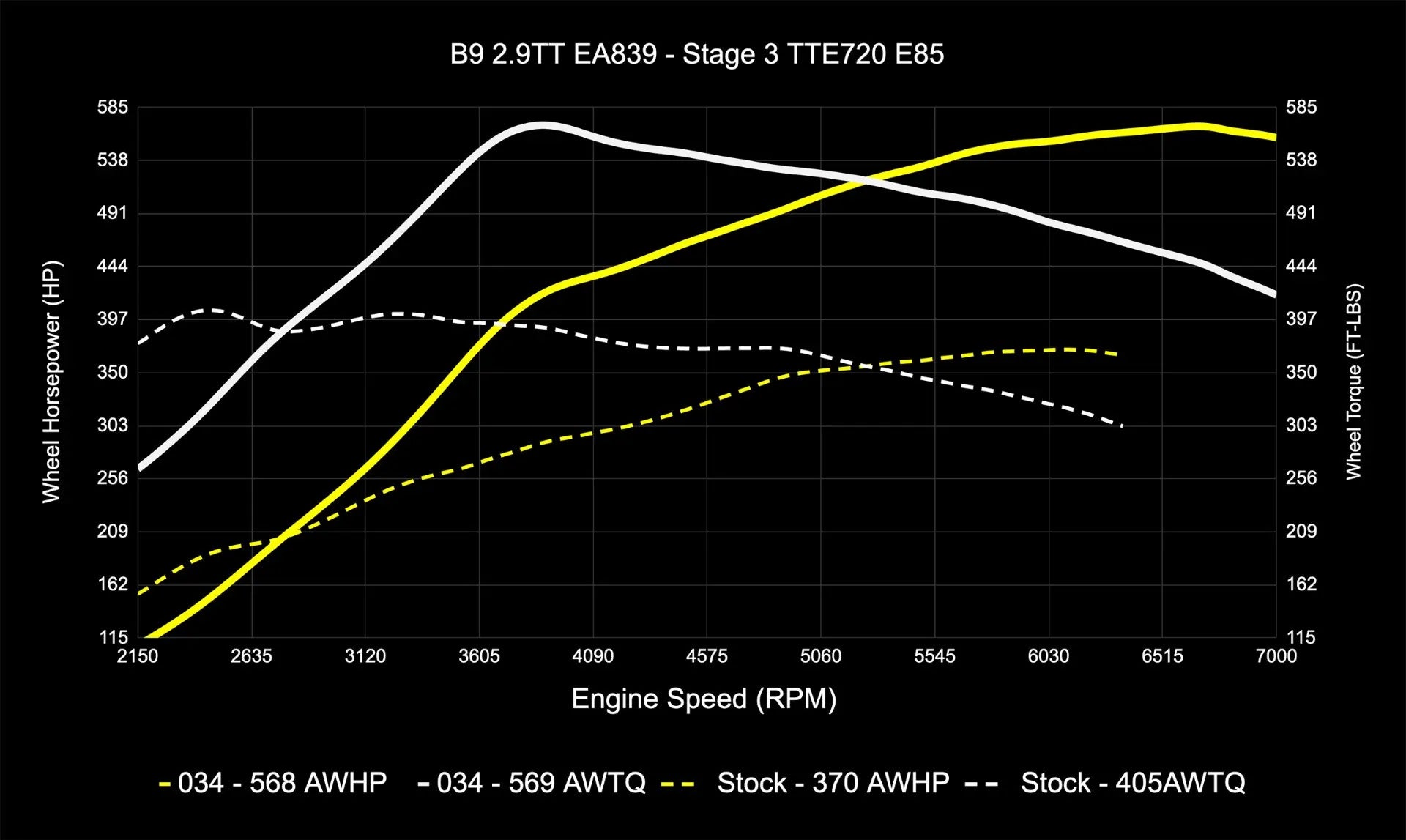

STAGE 3 HYBRID TURBOCHARGER

034Motorsport Stage 3 Performance Software for the EA839 2.9TT equipped with TTE720 Hybrid Turbochargers (running pump gas or ethanol) is engineered to safely increase the horsepower and torque beyond the stock turbocharger. Significant time was spent refining and safely optimizing the TTE720 Hybrid Turbocharger calibrations to ensure unrivaled drivability and uncompromised reliability. While many tuners can achieve great power figures that look impressive on a dyno sheet or a webpage, the key to a truly substantive and transformative software upgrade lies in the strategies employed to make power efficiently and safely.

In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in both Dynamic and Comfort modes to provide improved throttle response and allow for more precise throttle modulation with the addition of a hybrid turbocharger.

034Motorsport EA839 2.9TT Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 3 is available in 91 Octane, 93 Octane, E60-E70, and E85 Pump files. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER.

034Motorsport B9 Audi RS4 & RS5 AL552 ZF8 TCU Stage Descriptions:

Stage 1

(Included with Purchase of 034Motorsport 2.9TT EA839 ECU Tuning)

034Motorsport Stage 1 Transmission Performance Tuning Software for the AL552 is included in the Dynamic+ Tuning Bundle with our Stage 1 & Stage 1+ ECU software. The Dynamic+ ECU Tuning accurately reports torque values to the TCU to ensure that all safety systems are intact in both control units, and the added torque from tuning is properly adjusted for when driving/shifting, including all safety systems designed to protect the engine and transmission. This results in better shift quality as the transmission is not having to reduce engine torque or having to adapt to misreported inputs.

Stage 2

The 034Motorsport Stage 2 Transmission Performance Tuning Software for the AL552 is designed to further improve the drivability and performance of your Dynamic+ Tuned Audi B9/B9.5 RS4 or RS5. Dynamic+ Stage 2 TCU Software can be used with our Stage 1/2 OR Stage 1+/2+ ECU software. 034Motorsport Stage 2 TCU Tuning further improves shifting performance and speed for casual and track driving in all driving modes. The result is a noticeable improvement in acceleration without any sacrifice in comfort or reliability. Stage 2 TCU Tuning is currently available for both B9 and B9.5 RS4 and RS5!

Upgraded High Pressure Fuel Pump Optimization:

The 034Motorsport Stage 3 Transmission Performance Tuning Software for the AL552 is designed to further improve the drivability and acceleration performance of your Stage 3 Dynamic+ Tuned Audi B9/B9.5 RS4 or RS5. Dynamic+ Stage 3 TCU Software is designed to be used with Dynamic+ Stage 3 ECU Software. 034Motorsport Stage 3 TCU Tuning further optimizes shift points under partial and full throttle to keep the TTE720 Turbochargers in their peak power band, and raises the redline to 7,200 on pump gas and to 7,400 on ethanol for maximum performance with the larger turbocharger!

034Motorsport Dynamic+ End User Flashing Kit R4:

034Motorsport's Dynamic+ End User Flashing Kit R4 allows customers to install their 034Motorsport Dynamic+ Performance Software themselves. In addition, End User Flashing allows Dynamic+ Performance Software customers to receive and install software updates and revisions, flash back to stock, or upgrade to the next stage of performance software for their vehicle.

Available at no additional charge is the 034SPI Mobile App, which allows you to easily flash your car, change fuel maps, configure live data displays, record and submit data logs to 034Motorsport's Tuning Support team, and utilize diagnostic support tools such as DTC/CEL code read/clear and more all from your mobile device! Available via the Apple App Store or Google Play Store.

Requirements for Windows-Based End User Flashing:

  • Windows 10/11 Laptop with Available USB Port
  • Power Supply for Laptop
  • Secure Wired (Or Very Stable WiFi) High-Speed Internet Connection
  • Battery Charger, 20AMP minimum (CTEK Brand recommended)
  • Available Electrical Outlets

Requirements for 034SPI App End User Flashing:

  • Dynamic+ End User Flashing Kit R4
  • Apple Silicon-Based Mac Laptops (M1, M2, M3)
  • Apple iPhone or iPad Devices
  • Android Phone or Tablet Devices
  • Power Supply for Device (If Low Battery or Poor Health)
  • Secure and Stable WiFi or LTE High-Speed Internet Connection
  • Battery Charger, 20AMP minimum (CTEK Brand recommended for first flash)
  • Available Electrical Outlets

034Motorsport End User Flashing Kit R4 Contents:

  • 034Motorsport OBD-II Adapter
  • USB-C to USB-A Cable
  • USB-C to USB-C Cable
  • Carrying Case
  • User Credentials (Provided Via Email)

EMISSIONS DISCLAIMER

  • This product is sold for racing use as well as use on vehicles not registered for on highway use.
  • By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.

Welcome to Dynamic+ Tuning!

034Motorsport's Dynamic+ Performance Software provides reliable horsepower and torque increases through driver-centric calibrations that elevate driving enjoyment and precision. The Dynamic+ Tuning Philosophy emphasizes safety and reliability, with the goal of optimizing power delivery without compromising the longevity of the engine and related components.

Included with the Purchase of Any Dynamic+ Tune:

  • 30 Day Money Back Guarantee
    • 034Motorsport offers a 30 Day Money Back Guarantee on Dynamic+ ECU & TCU Tuning Software & Flashing Cable to ensure your complete satisfaction with our products and tuning. If you are not 100% satisfied with the Dynamic+ Transformation on your Volkswagen or Audi, please email tuning@034motorsport.com within 30 calendar days of the initial flash, and we will process a full refund to the original payment method.
  • Easy Map Switching
    • When purchasing any 034Motorsport staged tune, all octanes for that specific tune are included, as is the vehicle’s stock file.
    • Switching files is easy when using the Dynamic+ Flashing Portal on your Windows 10/11 computer, with mobile support available now!
  • World Class Tuning Support
    • 034Motorsport’s World Class Tuning Support Team is available 5 days a week standing by to answer and assist with any questions you may have regarding your Dynamic+ Tune, recommended hardware upgrades, or help to diagnose any issues you may have with your vehicle while flashing, or after you’ve flashed.
  • Advanced Technological Support
    • The 034Motorsport Dynamic+ Tuning Suite also offers enhanced to users to allow users to datalog their Volkswagen or Audi to ensure that it is running properly. This logger is available to be used with our Tuning Support Team and is not designed to be reviewed by the end user.
  • 034Motorsport Dynamic+ Flashing Portal:

  • Notes Regarding Crackle Overrun
    • Crackle results may vary based on ECU box code variations, fuels, exhaust setup, and geographic locations. 034Motorsport also offers no-crackle files available upon request. Please email Tuning@034Motorsport.com for more information if you do not see them in your flashing portal.
Stage Required Modifications Recommended Modifications
Stage 1 91
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software
Stage 1 93
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software

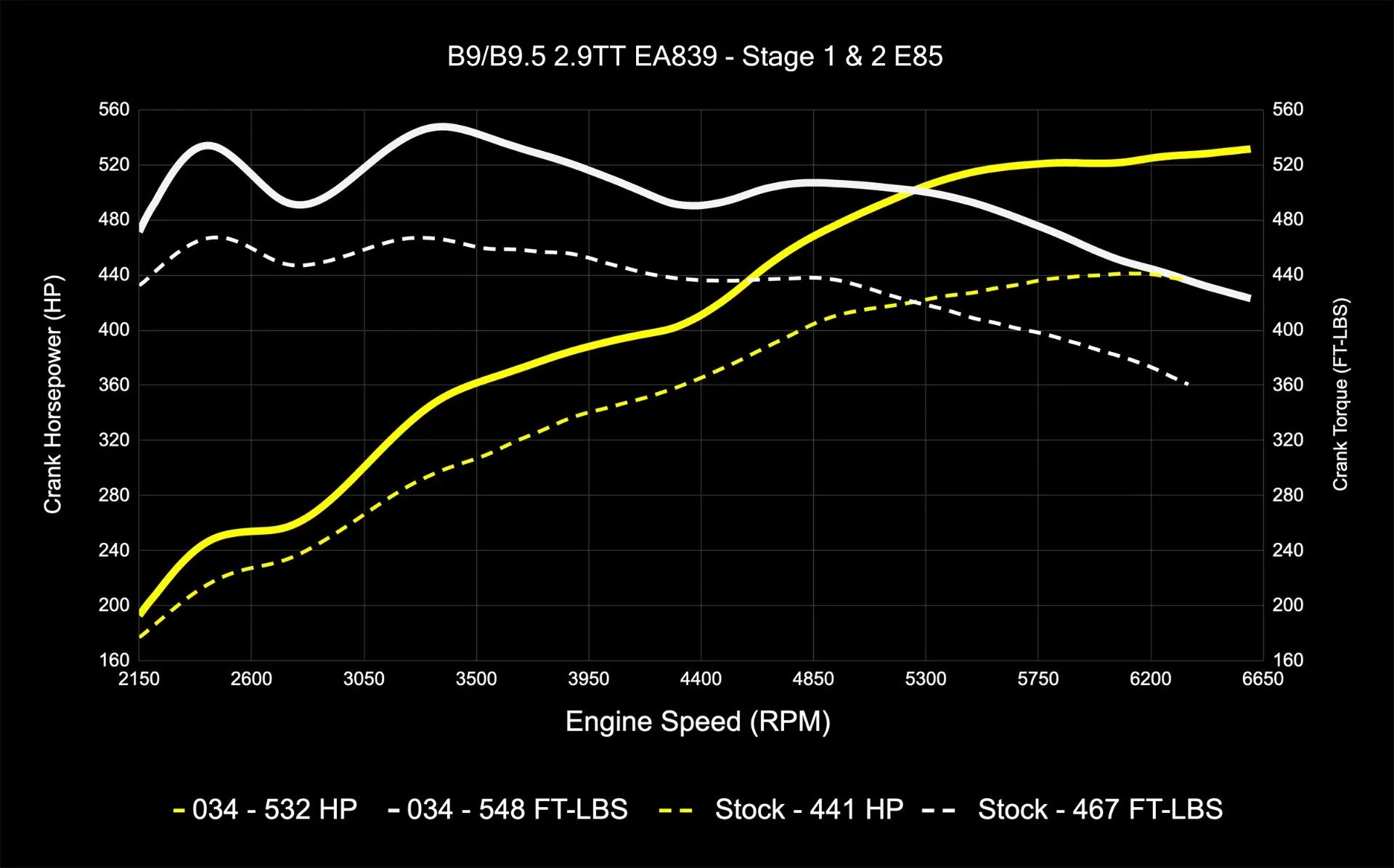

Stage 1 E85
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Ethanol Content Sensor/Gauge
  • Stage 2 Dynamic+ TCU Software
Stage 1+ 91
  • 034Motorsport Upgraded HPFP (37% Diameter increase Required)
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software
Stage 1+ 93
  • 034Motorsport Upgraded HPFP (37% Diameter increase Required)
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software
Stage 1+ E85
  • 034Motorsport Upgraded HPFP (37% Diameter increase Required)
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Ethanol Content Sensor/Gauge
  • Stage 2 Dynamic+ TCU Software
Stage 2 91
  • Stage 1 Dynamic+ TCU Software
  • 034Motorsport Stainless Steel Racing Catalyst Set

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software
Stage 2 93
  • Stage 1 Dynamic+ TCU Software
  • 034Motorsport Stainless Steel Racing Catalyst Set

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software
Stage 2 E85
  • Stage 1 Dynamic+ TCU Software
  • 034Motorsport Stainless Steel Racing Catalyst Set

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Ethanol Content Sensor/Gauge
  • Stage 2 Dynamic+ TCU Software
Stage 2+ 91
  • 034Motorsport Upgraded HPFP (37% Diameter increase Required)
  • Stage 1 Dynamic+ TCU Software
  • 034Motorsport Stainless Steel Racing Catalyst Set

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software
Stage 2+ 93
  • 034Motorsport Upgraded HPFP (37% Diameter increase Required)
  • Stage 1 Dynamic+ TCU Software
  • 034Motorsport Stainless Steel Racing Catalyst Set

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software
Stage 2+ E85
  • 034Motorsport Upgraded HPFP (37% Diameter increase Required)
  • Stage 1 Dynamic+ TCU Software
  • 034Motorsport Stainless Steel Racing Catalyst Set

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Ethanol Content Sensor/Gauge
  • Stage 2 Dynamic+ TCU Software

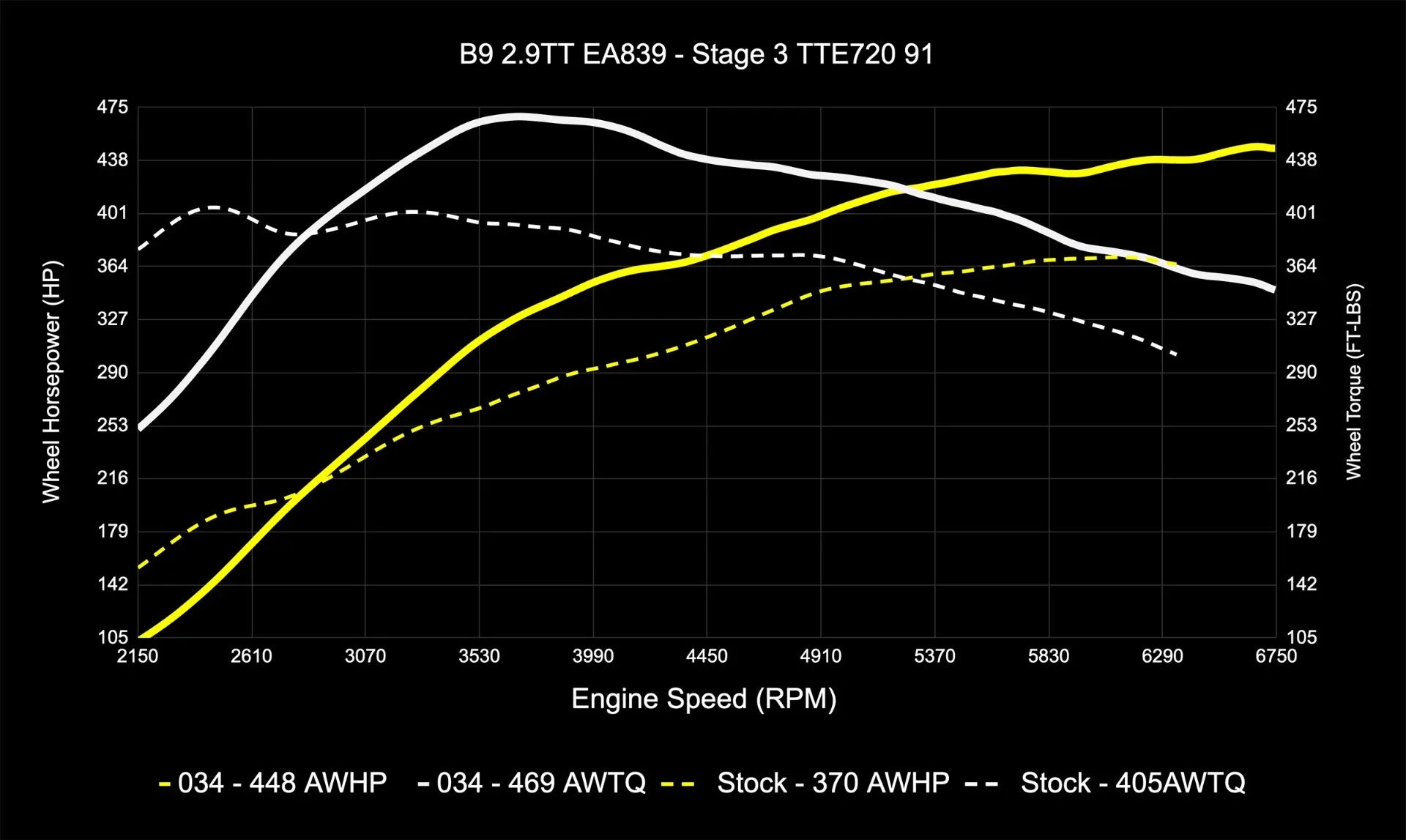

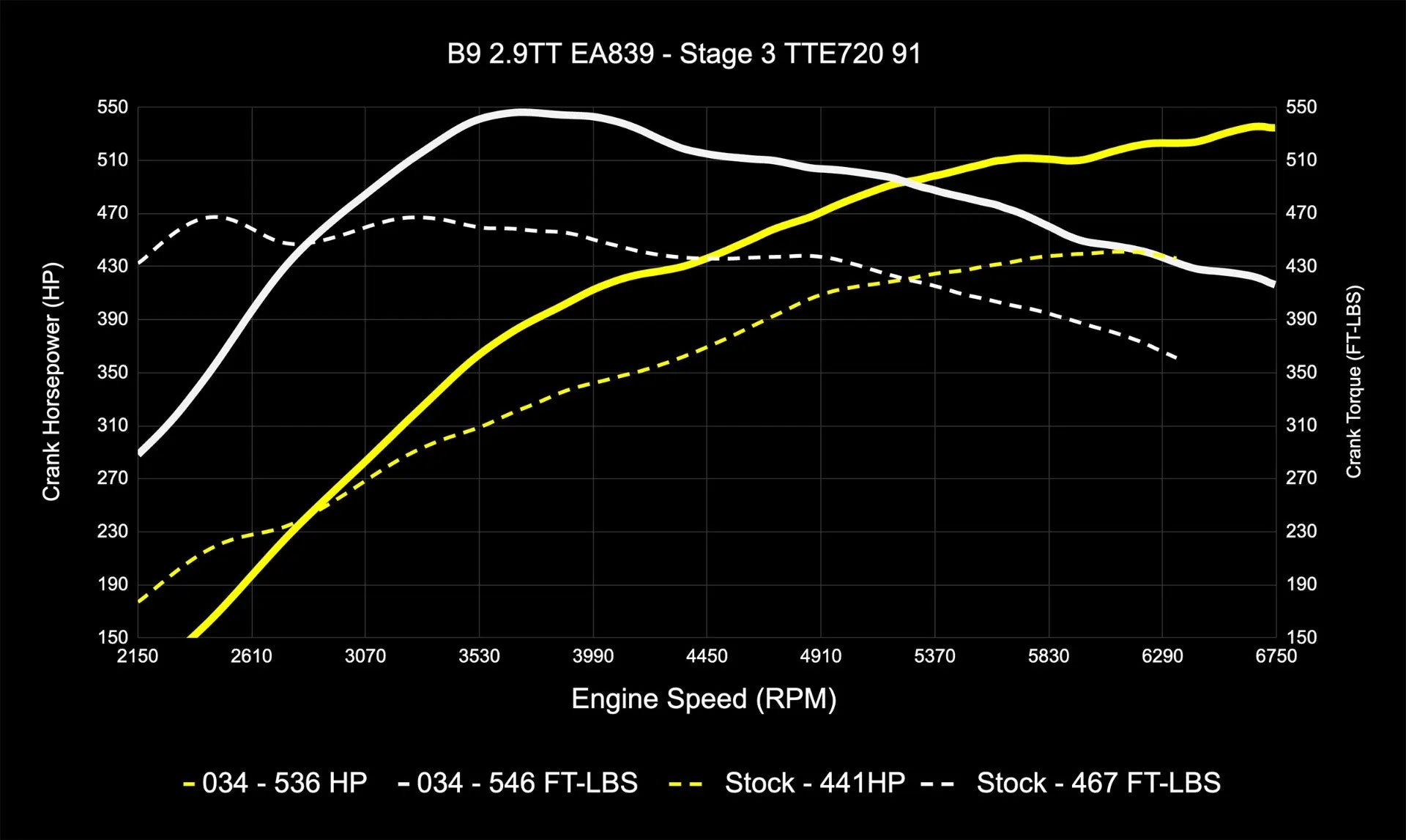

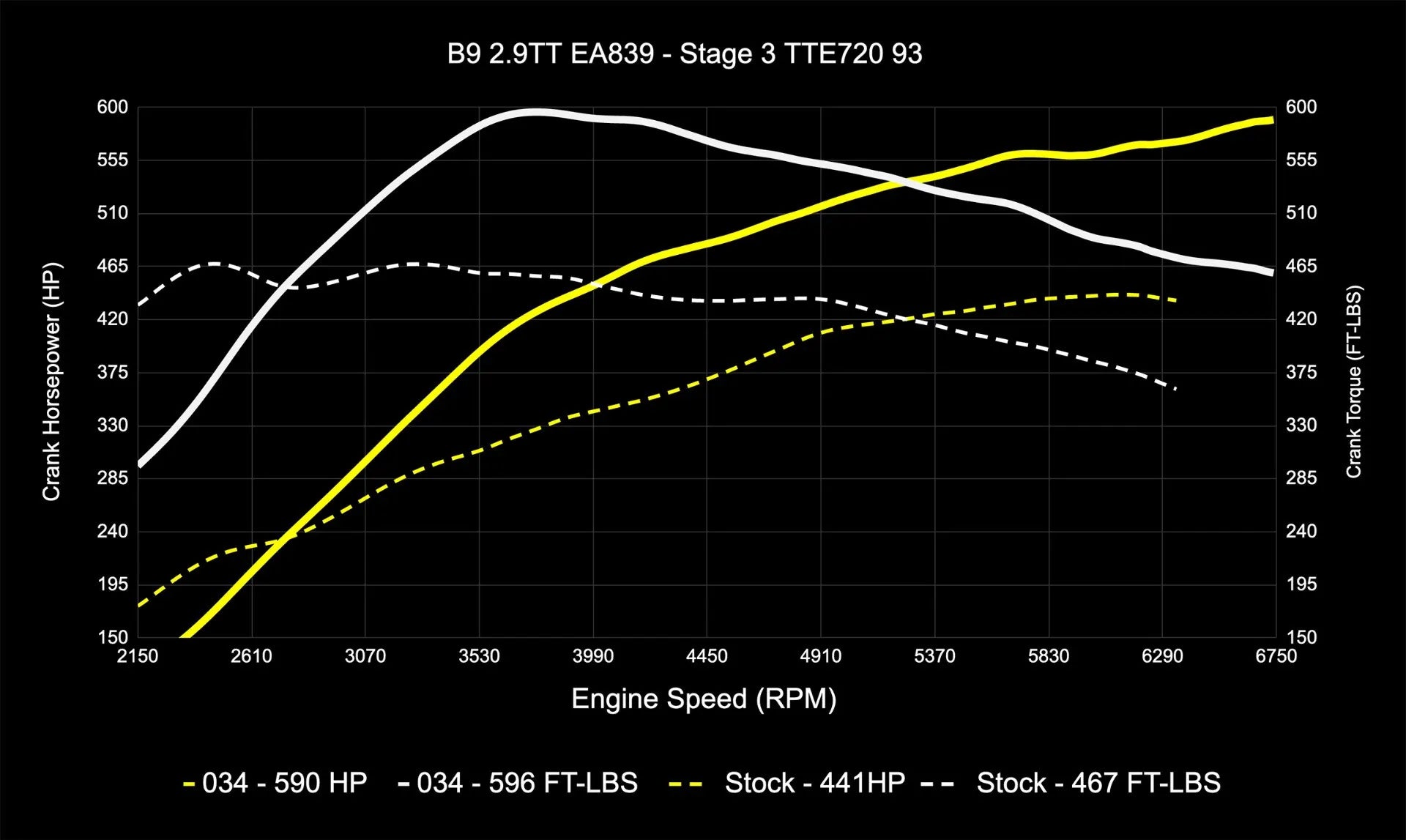

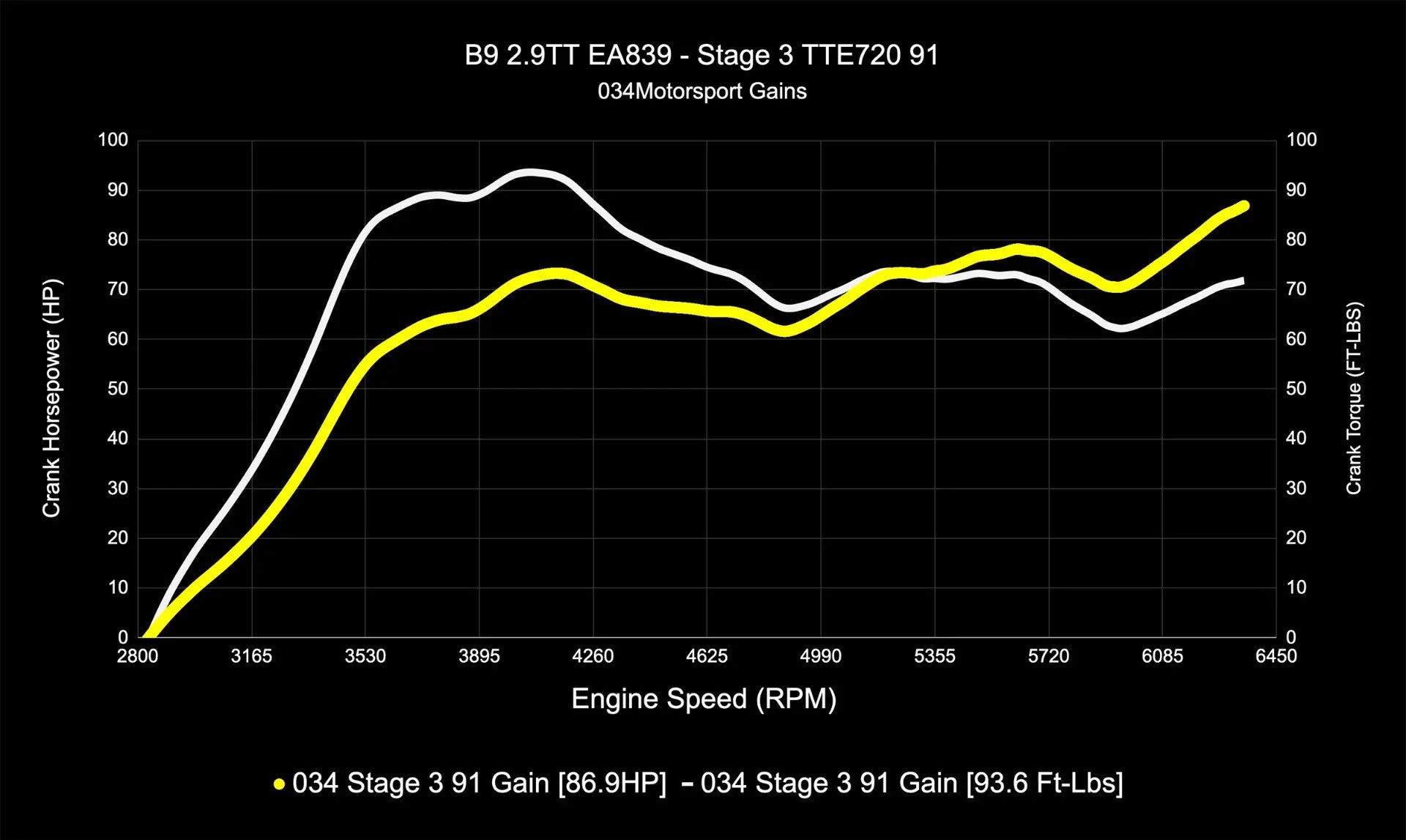

Stage 3 TTE720 91/93:
  • TTE720 Turbocharger Upgrade, B9/B9.5 EA839 2.9T Vehicles
  • Dynamic+ TCU Software (Included)
  • 034Motorsport Stainless Steel Racing Catalyst Set
  • Upgraded Intercooler and Heat Exchanger
  • Upgraded High Flow Intake
  • 034Motorsport Upgraded HPFP (37% Diameter increase Required)
  • 4 Bar Map Sensors
  • 5w-40 Oil VW 502 00/ 505 00
    • Recommended Oil Change Interval: 5,000 - 6,500mi
  • Brisk 2MOER10S Racing Spark Plugs
    • Recommended Service Interval: 3-7k Miles Depending on Usage
    • Recommended Plug Gap: .023 - 0.25" (Verify Before Installing)

  • Dynamic+ Stage 3 TCU Software
  • Drivetrain Insert Upgrades
  • Better Tires!

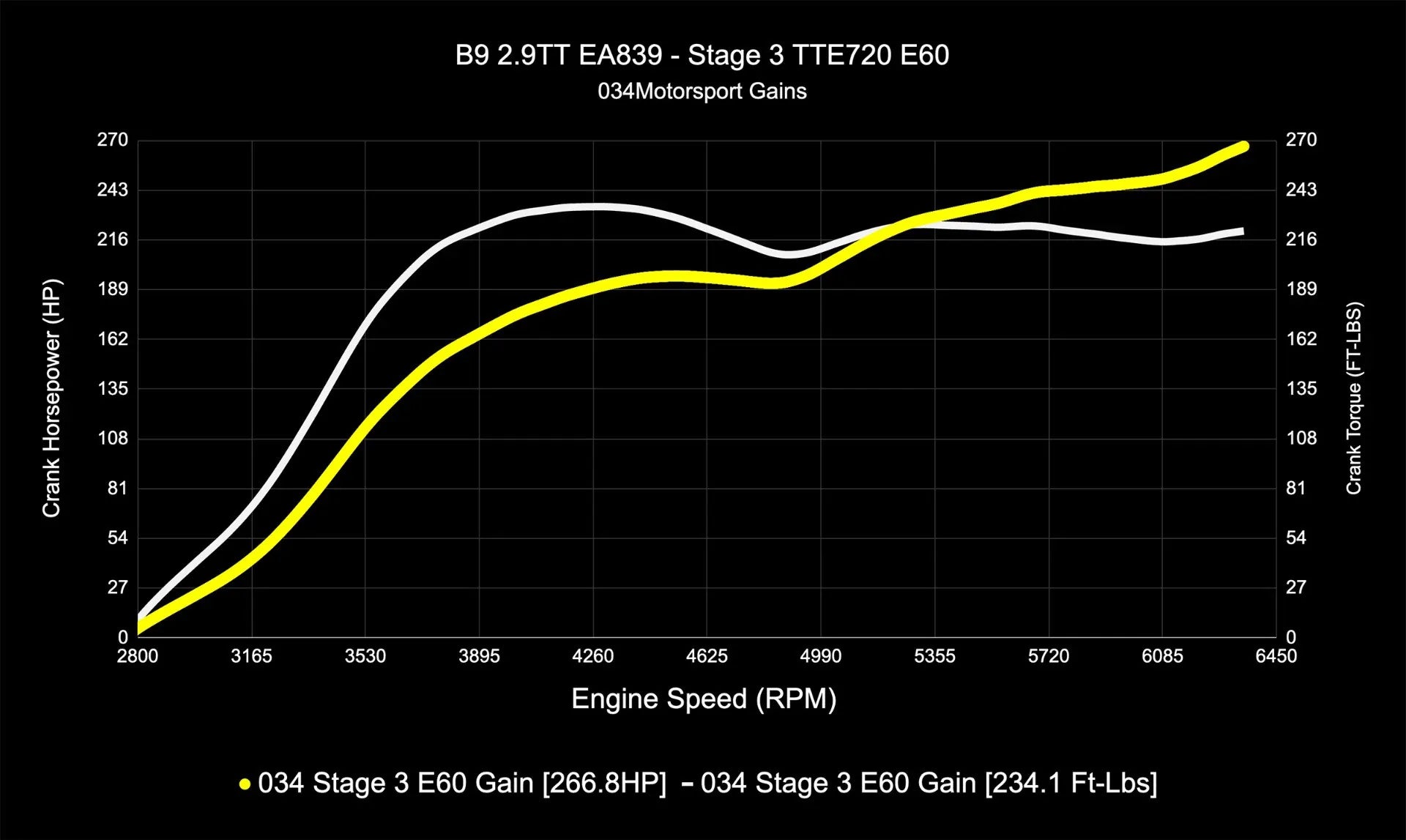

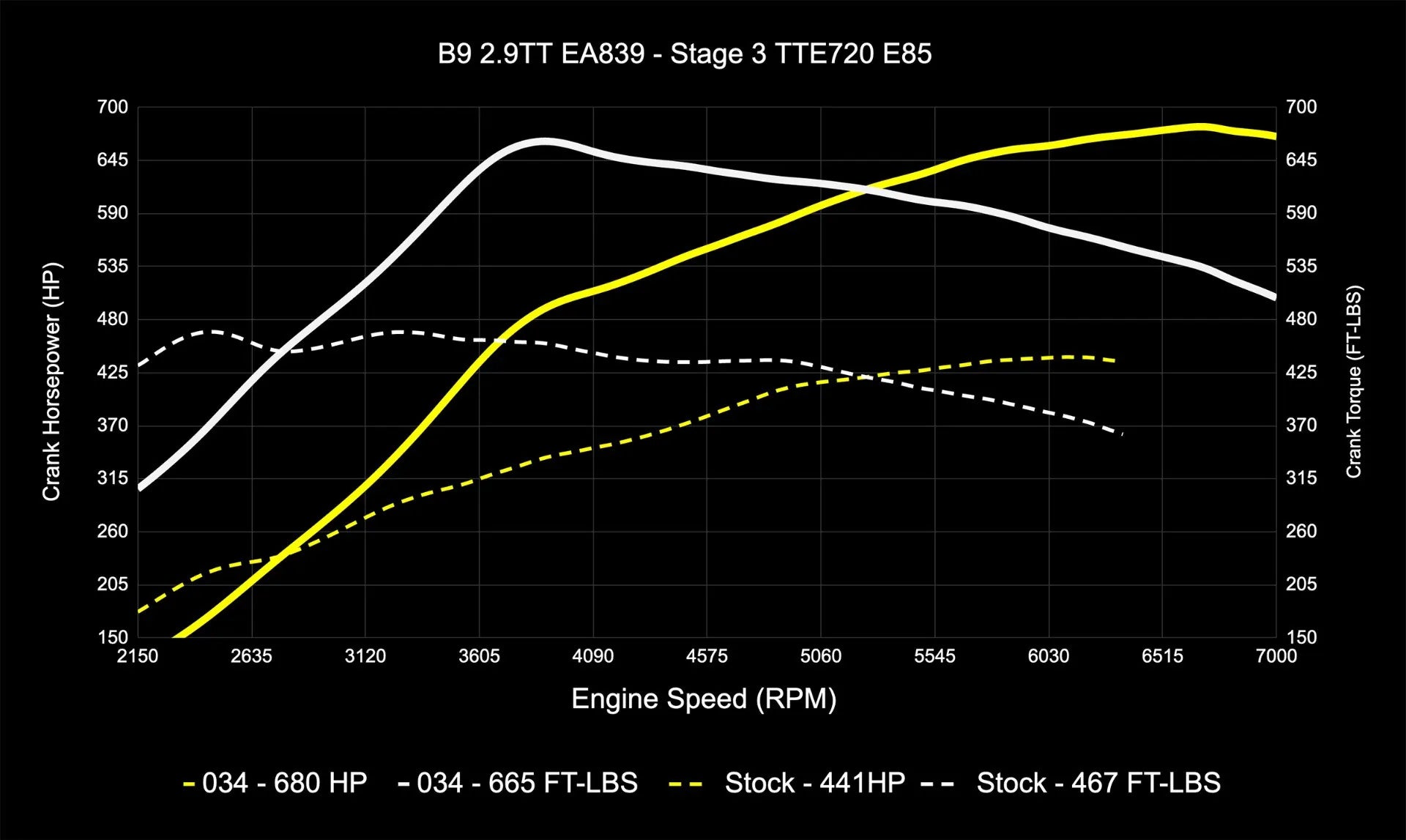

Stage 3 TTE720 E60-E70/E85 Pump:
  • TTE720 Turbocharger Upgrade, B9/B9.5 EA839 2.9T Vehicles
  • Dynamic+ TCU Software (Included)
  • 034Motorsport Stainless Steel Racing Catalyst Set
  • Upgraded Intercooler and Heat Exchanger
  • Upgraded High Flow Intake
  • 034Motorsport Upgraded HPFP (37% Diameter increase Required)
  • 4 Bar Map Sensors
  • 5w-40 Oil VW 502 00/ 505 00
    • Recommended Oil Change Interval: 5,000 - 6,500mi
  • Brisk 2MOER10S Racing Spark Plugs
    • Recommended Service Interval: 3-7k Miles Depending on Usage
    • Recommended Plug Gap: .023 - 0.25" (Verify Before Installing)

  • Dynamic+ Stage 3 TCU Software
  • Wagner Head Studs
  • Ethanol Content Sensor/Gauge
  • Drivetrain Insert Upgrades
  • Better Tires!

What's Included:

  • ECU Tune(s) Upgrade
  • TCU Tune(s) Upgrade

NOTE: Product images shown may not be an exact representation of the actual product.

Model   + Drivetrain
B9 RS4 2.9T V6
B9 RS5 2.9T V6

Return and Exchange Policy

The Return & Exchange Policy below outlines our current terms. While we try to adhere strictly to the guidelines detailed below, there are always exceptions to the rules, please speak to a BMP Tuning Customer Support Representative for clarification on anything you might have questions about - contact us.


Order Cancellations

Order Cancellation Hours of Operation

  • All order cancellations are processed during regular business hours only. Any order cancellation requests made outside of normal business hours will be processed during the next business day.

Order Cancellation Fees

  • Any cancelled orders including orders that have not shipped will be subject to a 5% cancellation fee to offset order processing fees that are not refunded to BMP Tuning by financial institutions and fee is waived completely if store credit is requested.
  • Cancellation fee applies to any order regardless of stock status, please contact BMP Tuning if there are any questions regarding stock status before placing an order.
  • If an order has already been processed or shipped and BMP Tuning is unable to cancel the order, the customer will be responsible for returning the item to us once received. Once the return is received it will be processed like any other return and be subject to the "Return and Exchange Policy" listed below.
  • Certain products sold cannot be cancelled after the order has been placed due to agreements with the manufacturer, or in the case of made to order/custom items. This may be noted in the product description, but feel free to contact us to make sure before ordering.
  • Any order placed via Katapult are non-refundable; refunds, if required, will be issued via store credit only.

Return & Exchange Policy

Domestic Orders

  • BMP Tuning will accept returns for unused products within 1 year/365 Days from the date of purchase.
  • Returned products must be new, unused, and must be in the original packaging, including labeling, manuals, hardware, etc.  Special order items are non-refundable.
  • Returns will NOT be processed for any received products without the proper RMA Form completed and included with the return, customer will also be responsible for return shipping to their original shipping address.
  • Returns beyond 60 days of original purchase once processed can only be refunded as BMP Tuning store credit.
  • In the case of an exchange, BMP Tuning will waive normal restocking fees and only collect for original shipping of the returned product unless otherwise stated by a BMP Tuning Customer Service Representative when requesting your RMA number.
  • Once store credit has been issued for a return, it is final and cannot be reversed or exchanged for a refund to your original payment method at a later time. Please ensure you are comfortable with receiving store credit before completing your return.
  • Contact us within 7 days of delivery if an item has arrived damaged or incorrectly so that we can rectify the situation with the responsible party. Any notifications past 7 days from delivery could cause issues with replacement and BMP Tuning is not liable for any mis-shipments or damaged items if notified past the 7th day.
  • Once delivered to shipping address provided, packages are customer’s responsibility—consider requesting a signature upon delivery or insuring your order with Route.

International Orders

  • New, unopened products can be returned within 60 days of purchase.
  • Opened/used products and Scratch & Dent parts cannot be returned.
  • Contact us within 7 days if your item is damaged upon receipt.
  • Once delivered, packages are customer’s responsibility—signature confirmation is available upon request.
  • Any international orders that are refused at the time of delivery will be subject to carrier abandonment of the package, at which time the ordered products would be discarded by the carrier. The customer will not be refunded for the value of the order and the discarded products are no longer retrievable.

Return Fees & Shipping:

  • Customer is responsible for a 20% restocking fee, original shipping, and return shipping.
  • In instances where the customer received FREE shipping, the shipping amount that BMP Tuning paid on behalf of the customer will be deducted from the total refund.
  • BMP Tuning's restocking fee is waived in the instance customer requests store credit as long as the item is being returned to BMP Tuning and not the manufacture directly.
  • Any orders that are returned to BMP Tuning as refused by receiver or non-deliverable will be subject to a return handling fee and will be processed as a return in compliance with our "Return and Exchange Policy", including a 20% restocking fee.
  • Any returns that are denied for any reason will be sent back to the customer at the customers expense. Any denied return left with BMP Tuning longer than 30 days is considered forfeited by the customer and will be disposed of by BMP Tuning at BMP Tuning's discretion.
  • Any order placed via Katapult are non-refundable; refunds, if required, will be issued via store credit only.

Route Shipping Protection - Refunds & Cancellations

  • Route shipping protection is an insurance purchased for your shipment. Because of this, any protection on items that have already been shipped cannot be refunded.
  • If your order is cancelled PRIOR to the items shipping, then the Route purchase can be refunded with the cancelled item(s). Once the order has shipped, we cannot refund the Route shipping protection.

Tariffs & Duties – No Refund Upon Return

  • BMP Tuning is not responsible for any tariffs, duties, or import fees charged by customs authorities or shipping carriers.
  • If you return an item, any tariff or duty you paid at delivery will not be refunded by BMP Tuning, as those are non-refundable government charges.
  • Refunds for returned items will be limited to the cost of the product (minus applicable fees), not including any tariffs or duties originally paid.
Additional Notes
  • Please ensure you understand your country’s import fee obligations prior to ordering.
  • If you have questions about potential tariffs, duties, or returns, contact us before placing your order—we’re happy to assist.
  • All existing policy conditions (restocking fees, RMA requirement, return shipping responsibilities) still apply as stated in the original policy.


Product Return Exemptions

Tuning Software And Cables

BMP Tuning will NOT accept returns for any tuning software or tuning cables. This includes, but is not limited to:

  • ECU Tunes
  • TCU Tunes
  • Tuning Cables such as IE POWERlink V4 Flash Cable, APR Ultralink, Unitronic UniCONNECT+ Cable, 034Motorsport Dynamic+ Tuning Cable
  • Plug and Play Tuners such as Burger Motorsports JB4, COBB AccessPort
  • OBDEleven Pro

Scratch & Dent, Open Box, and Clearance Items

There are absolutely no returns on any product sold as "Scratch & Dent", "Open Box", or "Clearance."


Pricing Or Photo Errors

  • While we always try to provide the most accurate product and pricing information, we are humans and can make mistakes. If we listed an incorrect price or information for any product on our site, BMP Tuning reserves the right to refuse or cancel any orders placed. PRICING AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
  • We try to ensure that all products are represented properly in description and photo. However, due to photos provided from manufacturers, sometimes a photo might be outdated or a generic photo for the part may be used for the item. If you have any questions about any product, please contact us before placing your order.




Need help with your order?

Start a Return! Download RMA Form

Recently viewed

Pickup where you left off

Recently viewed
